Baldor VEM3555T-57

Baldor-Reliance VEM3555T-57; 2 HP, 2900 rpm, 3-phase 400/230 V 50 Hz, 145TC frame, TEFC enclosure general purpose AC motor.

BaldorMFR # VEM3555T-57SKU # YLSYSXMQUI8HF3

EnclosureTEFC

Frame145TC

Frame materialSteel

Frequency (Hz)50.00 Hz

Motor letter typeThree Phase

Output at frequency2.000 HP @ 50 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor-Reliance VEM3555T-57; 2 HP, 2900 rpm, 3-phase 400/230 V 50 Hz, 145TC frame, TEFC enclosure general purpose AC motor.

Baldor VEM3555T-57

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

Frame145TC

Frame materialSteel

Frequency (Hz)50.00 Hz

Motor letter typeThree Phase

Output at frequency2.000 HP @ 50 HZ

Phase3

Synchronous speed at frequency (rpm)3000 RPM @ 50 HZ

Voltage at frequency400.0 V @ 50 HZ · 230.0 V @ 50 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsC UR US · CE · CURUS · IE3 · UKCA · WEEE

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorNo Mounting

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage5.000 A @ 230.0 V · 2.900 A @ 400.0 V

Design codeB

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load84.2 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)2.9 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classB

Inverter codeNot Inverter

KVA codeM

Lifting lugsNo Lifting Lugs

Locked bearing indicatorLocked Bearing

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size6 @ 18 AWG

Motor type3532M

Mounting arrangementF1

Number of poles2

Overall length14.17 IN

Power factor88

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeC-Face

Pulley shaft indicatorStandard

Rodent screenNone

RoHS statusROHS COMPLIANT

Service factor1.15

Shaft diameter0.875 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)2900 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568812846

Nameplate

Catalog numberVEM3555T-57

Specification number35AA003Q064G1

Horsepower (HP)2/1.5KW

Phase3

Voltage (V)230/400

Current (A)5/2.9

Speed (1/min)2900

Frame size145TC

Frequency (Hz)50

Ingress protection (IP)44

Service factor1.15

Code letter (locked rotor kVA)M

NEMA design letterB

Insulation classB

Nominal efficiency (%)84.2

Power factor88

Rating40C AMB-S1 CONT

Drive end bearing6205

Opposite drive end bearing6203

EnclosureTEFC

Nameplate numberNP2716L

Performance

General characteristics· 400 V, 50 Hz, 2 hp

Line-to-line resistance at 25 °C (ohms)4.8 Ω

Temperature rise at rated load (°C)44° C

Temperature rise at service factor load (°C)51° C

Start configurationDOL

Breakdown torque17.8 lb-ft

Pull-up torque11.5 lb-ft

Locked-rotor torque16.4 lb-ft

Starting current (A)30.7 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	15	50	71	83	88	90	92	89
Efficiency %	0	70.4	80.6	83.9	84.9	84.8	84	84.8
Speed rpm	2999	2976	2954	2931	2908	2881	2855	2892
Line amps A	1.4	1.53	1.87	2.3	2.84	3.42	4.05	3.19
Power W	145	532	922	1321	1728	2144	2574	1978
Torque lb-ft	0	0.886	1.77	2.66	3.55	4.44	5.33	4.08

Documents & CAD

For this product 3

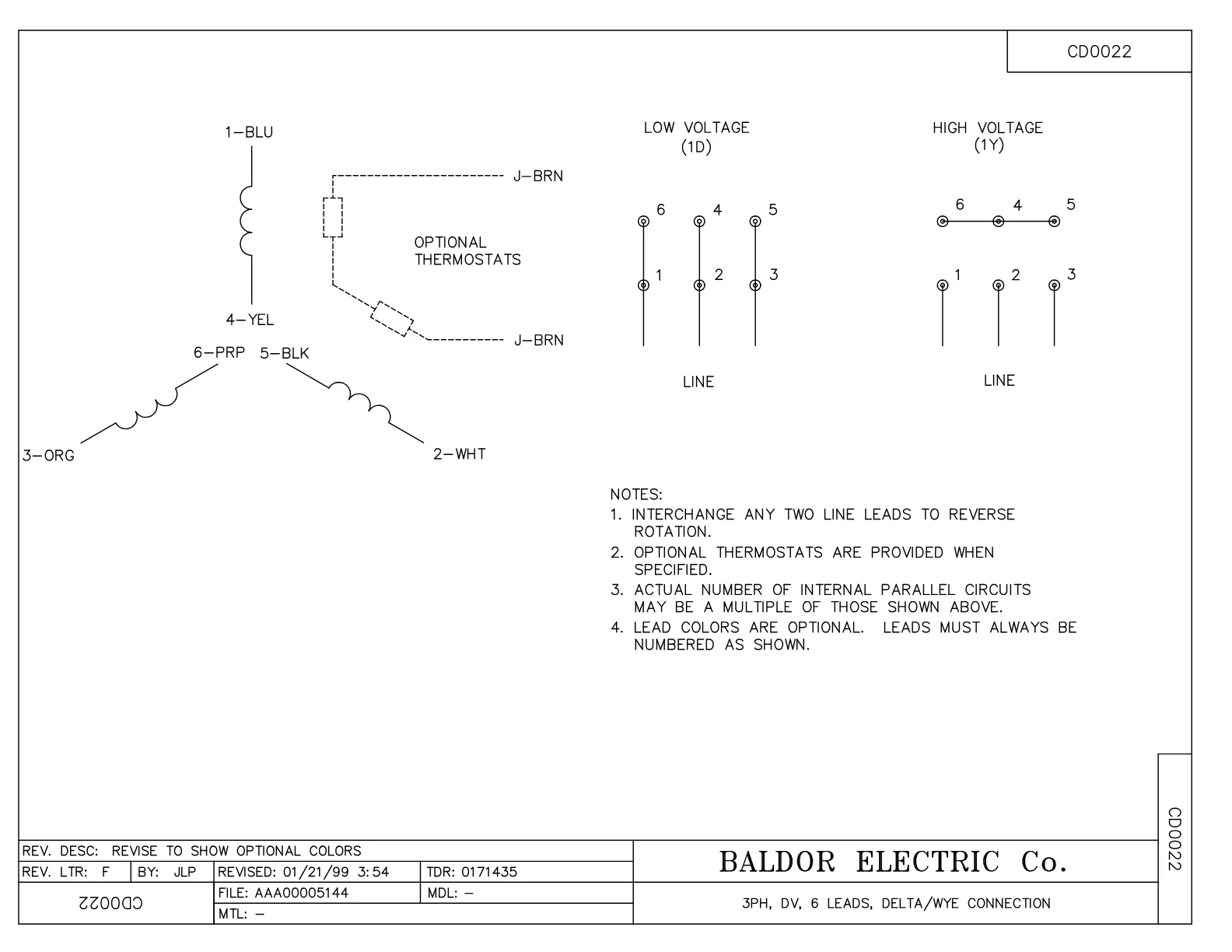

Wiring DiagramWiring DiagramPDF·37 KB·English

DatasheetDatasheetPDF·580 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

Series documents 1· shared by this product series

Dimension DrawingDimension SheetPDF·98 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 5

The genuine spare parts used for servicing and repairing the Baldor VEM3555T-57 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
34FN3002A01SP	EXTERNAL FAN, PLASTIC, .637/.639 HUB W/	1 pcs	410 motors
36GS1000SP	GASKET-CONDUIT BOX, .06 THICK #SV-330 LE	1 pcs	831 motors
35FH4005A84SP	IEC FH W/GRSR, NO DIMPLES PRIMED	1 pcs	167 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
