Baldor VEM31112

Baldor-Reliance VEM31112; 0.75 HP, 1765 rpm, 3-phase 230/460 V 60 Hz, 56C frame, open enclosure general purpose AC motor.

BaldorMFR # VEM31112SKU # YLSVUPGTUUH6LDM

EnclosureOPEN

Frame56C

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency.750 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor-Reliance VEM31112; 0.75 HP, 1765 rpm, 3-phase 230/460 V 60 Hz, 56C frame, open enclosure general purpose AC motor.

Baldor VEM31112

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureOPEN

Frame56C

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency.750 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency230.0 V @ 60 HZ · 460.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsCURUSEEV

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorNo Mounting

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage1.210 A @ 460.0 V · 2.420 A @ 208.0 V · 2.420 A @ 230.0 V

Design codeB

Drip coverDrip Cover

Duty ratingCONT

Efficiency at 100% load82.5 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)1.2 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classF

Inverter codeInverter Ready

IP ratingNONE

KVA codeK

Lifting lugsNo Lifting Lugs

Locked bearing indicatorLocked Bearing

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size9 @ 18 AWG

Motor type3514M

Mounting arrangementF1

Number of poles4

Overall length12.22 IN

Power factor74

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeC-Face

Pulley shaft indicatorStandard

Rodent screenNone

Service factor1.25

Shaft diameter0.625 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)1765 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568764039

Documents & CAD

For this product 2

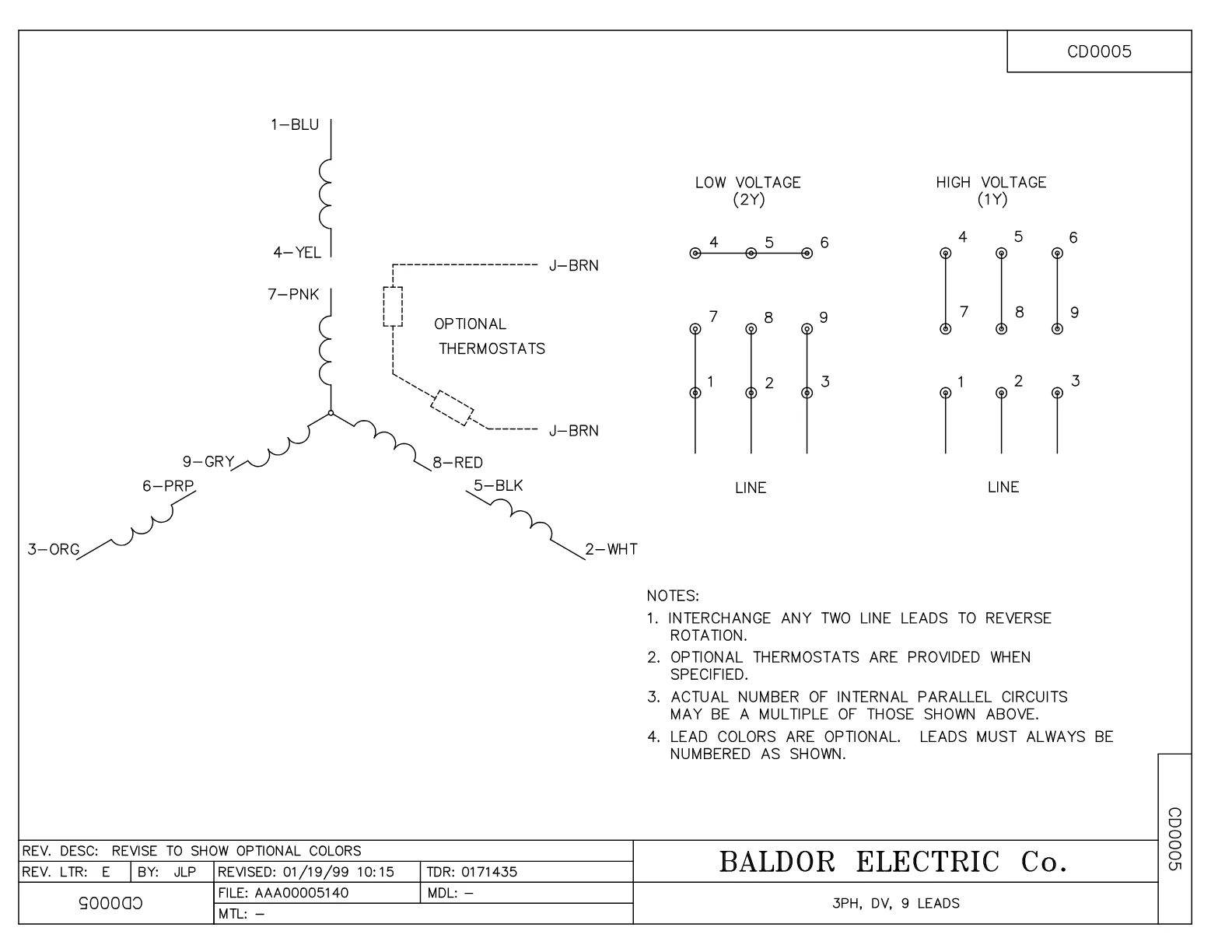

Wiring DiagramWiring DiagramPDF·41 KB·English

DatasheetDatasheetPDF·520 KB·English

Series documents 2· shared by this product series

Dimension DrawingDimension SheetPDF·117 KB·English

Technical DrawingDrawingPDF·87 KB·English

CAD Files 8

3D Model

2D Drawing

Spare Parts 4

The genuine spare parts used for servicing and repairing the Baldor VEM31112 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
35FH4006A01SP	DRIP COVER,STAMPED,W/ PRIMER	1 pcs	26 motors
MG1050Y01	CELEROL BALDOR GOLD 5 GALLON BUCKET	0.017 gal	1,997 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
