How can I get a price quote for Baldor VEL11317A?

You can request a fast quote for Baldor VEL11317A from Yılsa Engineering. Reference part number YLS2TXTFWV84INW. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Baldor VEL11317A in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Baldor VEL11317A genuine and new?

Yes. This Baldor product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Baldor VEL11317A?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Baldor VEL11317A

VEL11317A

BaldorMFR # VEL11317ASKU # YLS2TXTFWV84INW

EnclosureOPEN

Frame56C

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Cap Run

Output at frequency2.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor VEL11317A (VEL11317A) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for Baldor VEL11317A — price, stock availability and technical specifications.

Baldor VEL11317A

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureOPEN

Frame56C

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Cap Run

Output at frequency2.000 HP @ 60 HZ

Phase1

Synchronous speed at frequency (rpm)3600 RPM @ 60 HZ

Voltage at frequency115.0 V @ 60 HZ · 230.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsCURUSEEV

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorNo Mounting

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage15.600 A @ 115.0 V · 7.800 A @ 230.0 V · 9.900 A @ 208.0 V

Design codeL

Drip coverDrip Cover

Duty ratingCONT

Efficiency at 100% load82.9 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)7.8 a

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classB

Inverter codeNot Inverter

KVA codeG

Lifting lugsNo Lifting Lugs

Locked bearing indicatorLocked Bearing

Motor lead terminationFlying Leads

Motor lead quantity/wire size6 @ 16 AWG

Motor type3540LC

Mounting arrangementF1

Number of poles2

Overall length15.47 IN

Power factor99

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeC-Face

Pulley shaft indicatorStandard

Rodent screenNone

RoHS statusROHS COMPLIANT

Service factor1.15

Shaft diameter0.625 IN

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)3470 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1Automatic Thermal Overload

Winding thermal 1 locationSB

Winding thermal 2None

UPC781568582121

Product TypeGeneral Purpose Motors

Nameplate

Catalog numberVEL11317A

Specification number35EL001L153G1

Horsepower (HP)2

Voltage (V)115/230

Current (A)15.6/7.8

Speed (rpm)3470

Frame size56C

Frequency (Hz)60

Phase1

Service factor1.15

Code letter (locked rotor kVA)G

NEMA design letterL

Insulation classB

Full load average efficiency (%)82.9

Power factor99

Rating40C AMB-CONT

Drive end bearing6205

Opposite drive end bearing6203

EnclosureOPEN

Nameplate numberNP3273L

Performance

General characteristics· 115 V, 60 Hz, 2 hp

Line-to-line resistance at 25 °C (ohms)0.28842 Ω / 0.56941 Ohms B Ph

Temperature rise at rated load (°C)25° C

Temperature rise at service factor load (°C)33° C

Start configurationDOL

Breakdown torque7.37 lb-ft

Pull-up torque4.62 lb-ft

Locked-rotor torque7.94 lb-ft

Starting current (A)98.8 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	80	97	100	100	99	99	98	99
Efficiency %	0	71.3	82	84.1	83.5	80.6	76.8	81.8
Speed rpm	3599	3570.3	3542.6	3508.2	3472.2	3424.1	3372.2	3443
Line amps A	2.21	4.73	7.91	11.7	15.6	20.5	25.8	18.5
Power W	203	529	903	1329	1782	2315	2912	2102
Torque lb-ft	0	0.744	1.47	2.24	3.02	3.84	4.67	3.51

Documents & CAD

For this product 3

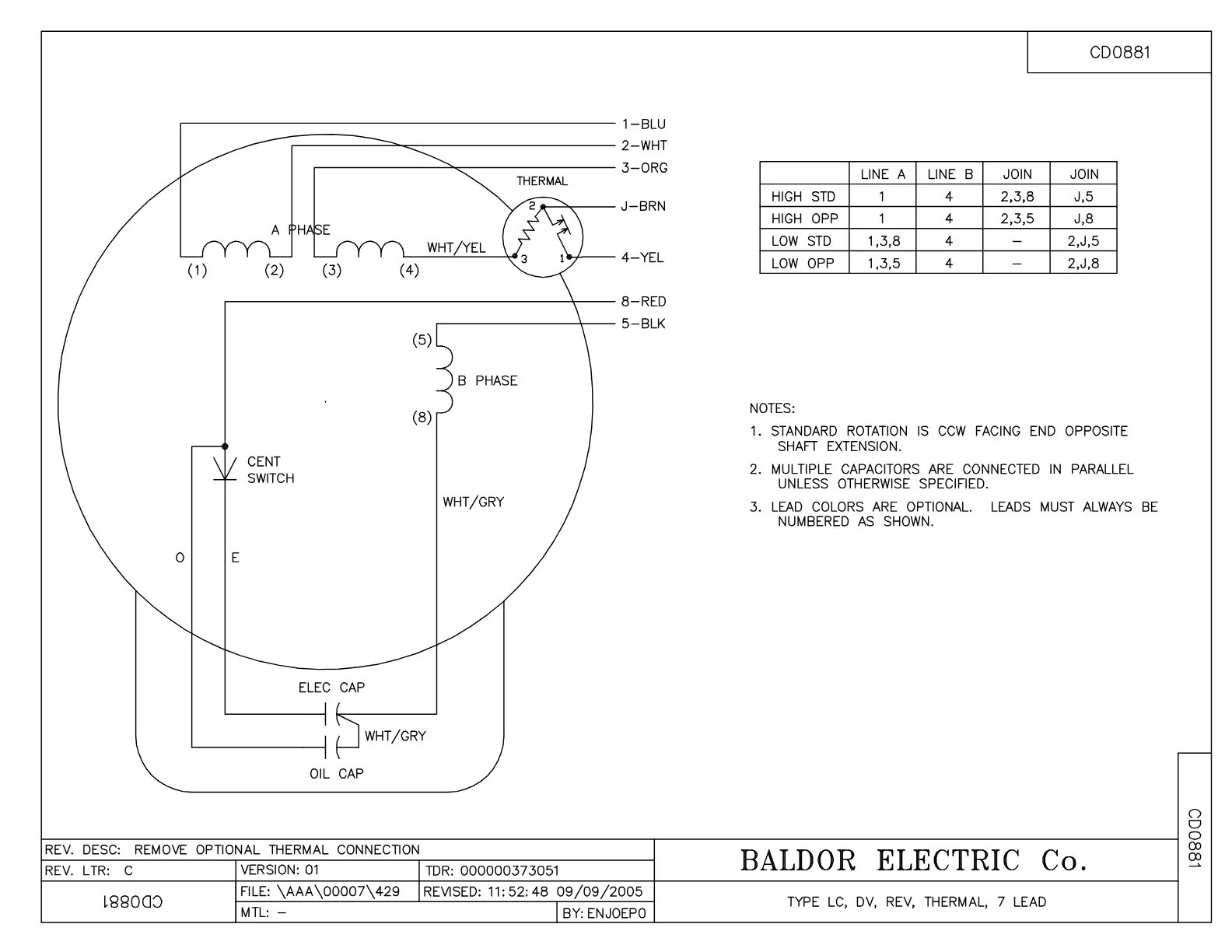

Wiring DiagramWiring DiagramPDF·35 KB·English

DatasheetDatasheetPDF·595 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

Series documents 1· shared by this product series

Dimension DrawingDimension SheetPDF·118 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 4

The genuine spare parts used for servicing and repairing the Baldor VEL11317A motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
35FH4006A01SP	DRIP COVER,STAMPED,W/ PRIMER	1 pcs	26 motors
MG1050Y01	CELEROL BALDOR GOLD 5 GALLON BUCKET	0.017 gal	1,997 motors
LB1118	LABEL,WARNING (ROLL LABEL)	1 pcs	223 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
