Baldor VEL11309A

VEL11309A

BaldorMFR # VEL11309ASKU # YLSLRZLJCP9XSTL

EnclosureOPEN

Frame56C

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Cap Run

Output at frequency1.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor VEL11309A (VEL11309A) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for Baldor VEL11309A — price, stock availability and technical specifications.

Baldor VEL11309A

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureOPEN

Frame56C

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Cap Run

Output at frequency1.000 HP @ 60 HZ

Phase1

Synchronous speed at frequency (rpm)3600 RPM @ 60 HZ

Voltage at frequency230.0 V @ 60 HZ · 115.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsCURUSEEV · WEEE

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorNo Mounting

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage4.300 A @ 208.0 V · 7.800 A @ 115.0 V · 3.900 A @ 230.0 V

Design codeN

Drip coverDrip Cover

Duty ratingCONT

Efficiency at 100% load82.0 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)3.9 a

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classB

Inverter codeNot Inverter

KVA codeH

Lifting lugsNo Lifting Lugs

Locked bearing indicatorLocked Bearing

Motor lead terminationNone

Motor lead quantity/wire size4 @ 16 AWG, A&J

Motor type3524LC

Mounting arrangementF1

Number of poles2

Overall length13.22 IN

Power factor99

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeC-Face

Pulley shaft indicatorStandard

Rodent screenNone

RoHS statusROHS COMPLIANT

Service factor1.25

Shaft diameter0.625 IN

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)3480 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1Automatic Thermal Overload

Winding thermal 1 locationSB

Winding thermal 2None

UPC781568582381

Product TypeGeneral Purpose Motors

Nameplate

Catalog numberVEL11309A

Weight43

Specification number35EL001G103G1

EnclosureOPEN

Ingress protection (IP)23

Horsepower (HP)1

NEMA nominal efficiency (%)82

Voltage (V)115/230

Current (A)7.8/3.9

Power factor99

Rating40C AMB-CONT

Speed (rpm)3480

Frame size56C

Frequency (Hz)60

Code letter (locked rotor kVA)H

Insulation classB

Service factor1.25

Service factor current (A)10/5

Phase1

NEMA design letterN

Drive end bearing6205

Opposite drive end bearing6203

LubricationPOLYREX EM

Nameplate numberNP4423B14M36L

Performance

General characteristics· 115 V, 60 Hz, 1 hp

Line-to-line resistance at 25 °C (ohms)0.599 Ω / 0.913 Ohms B Ph

Temperature rise at rated load (°C)11° C

Temperature rise at service factor load (°C)15° C

Start configurationDOL

Breakdown torque4.54 lb-ft

Pull-up torque2.68 lb-ft

Locked-rotor torque5.62 lb-ft

Starting current (A)60 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	72	90	98	100	100	99	99	99
Efficiency %	0	67.6	79.9	83	83.5	81.9	78.7	81.9
Speed rpm	3598	3573	3548	3522	3492	3452	3406	3452
Line amps A	1.8	2.72	4.17	5.87	7.77	9.99	12.5	9.99
Power W	149	282	470	675	897	1143	1420	1143
Torque lb-ft	0	0.376	0.745	1.12	1.51	1.91	2.31	1.91

Documents & CAD

For this product 3

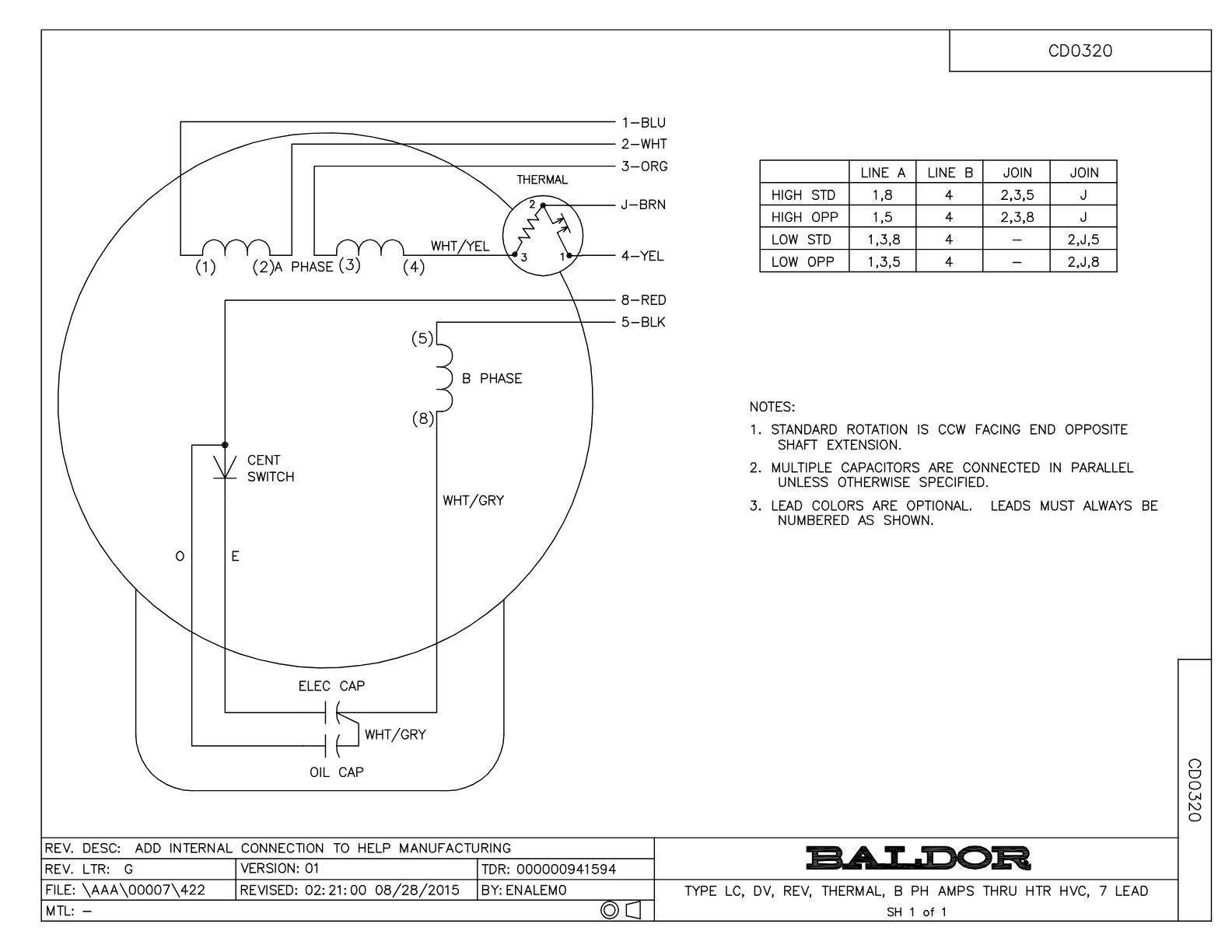

Wiring DiagramWiring DiagramPDF·39 KB·English

DatasheetDatasheetPDF·602 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

Series documents 1· shared by this product series

Dimension DrawingDimension SheetPDF·118 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 5

The genuine spare parts used for servicing and repairing the Baldor VEL11309A motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
OC3060C09SP	CAPACITOR 60 MFD 240 VAC	1 pcs	10 motors
35FH4006A01SP	DRIP COVER,STAMPED,W/ PRIMER	1 pcs	26 motors
MG1050Y01	CELEROL BALDOR GOLD 5 GALLON BUCKET	0.017 gal	1,997 motors
LB1118	LABEL,WARNING (ROLL LABEL)	1 pcs	223 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
