Baldor VEL11308

VEL11308

BaldorMFR # VEL11308SKU # YLS7DWGTAKX3YDJ

EnclosureODTF

Frame56C

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Cap Run

Output at frequency.750 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor VEL11308 (VEL11308) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for Baldor VEL11308 — price, stock availability and technical specifications.

Baldor VEL11308

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureODTF

Frame56C

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Cap Run

Output at frequency.750 HP @ 60 HZ

Phase1

Synchronous speed at frequency (rpm)1200 RPM @ 60 HZ

Voltage at frequency115.0 V @ 60 HZ · 230.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsCURUSEEV

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorNo Mounting

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage3.200 A @ 230.0 V · 6.300 A @ 115.0 V

Design codeL

Drip coverDrip Cover

Duty ratingCONT

Efficiency at 100% load81.5 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)3.2 a

Front face codeDrip Cover Mounting

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classF

Inverter codeNot Inverter

IP ratingNONE

KVA codeH

Lifting lugsNo Lifting Lugs

Locked bearing indicatorLocked Bearing

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size6 @ 18 AWG

Motor type3530LC

Mounting arrangementF1

Number of poles6

Overall length14.12 IN

Power factor95

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeC-Face

Pulley shaft indicatorStandard

Rodent screenNone

Service factor1.00

Shaft diameter0.625 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)1160 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568763995

Product TypeGeneral Purpose Motors

Nameplate

Catalog numberVEL11308

Specification number35E019G064

Horsepower (HP).75

Voltage (V)115/230

Current (A)6.3/3.2

Speed (rpm)1160

Frame size56C

Frequency (Hz)60

Phase1

Service factor1.00

Code letter (locked rotor kVA)H

NEMA design letterL

Insulation classF

Full load average efficiency (%)81.5

Power factor95

Rating40C AMB-CONT

Drive end bearing6205

Opposite drive end bearing6203

EnclosureODTF

Nameplate numberNP3155L

Performance

General characteristics· 115 V, 60 Hz, 0.75 hp

Line-to-line resistance at 25 °C (ohms)1.4 Ω / 1.84 Ohms B Ph

Temperature rise at rated load (°C)39° C

Start configurationDOL

Breakdown torque8.03 lb-ft

Pull-up torque5.18 lb-ft

Locked-rotor torque11.2 lb-ft

Starting current (A)44.2 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%
Power factor %	60	84	91	94	95	95	93
Efficiency %	0	54.8	72.8	79.9	81.6	79.7	73.7
Speed rpm	1198	1190	1182	1172	1160	1143	1115
Line amps A	1.97	2.66	3.66	4.84	6.28	8.03	10.6
Power W	136	256	385	525	686	876	1137
Torque lb-ft	0	0.831	1.67	2.52	3.4	4.3	5.29

Documents & CAD

For this product 3

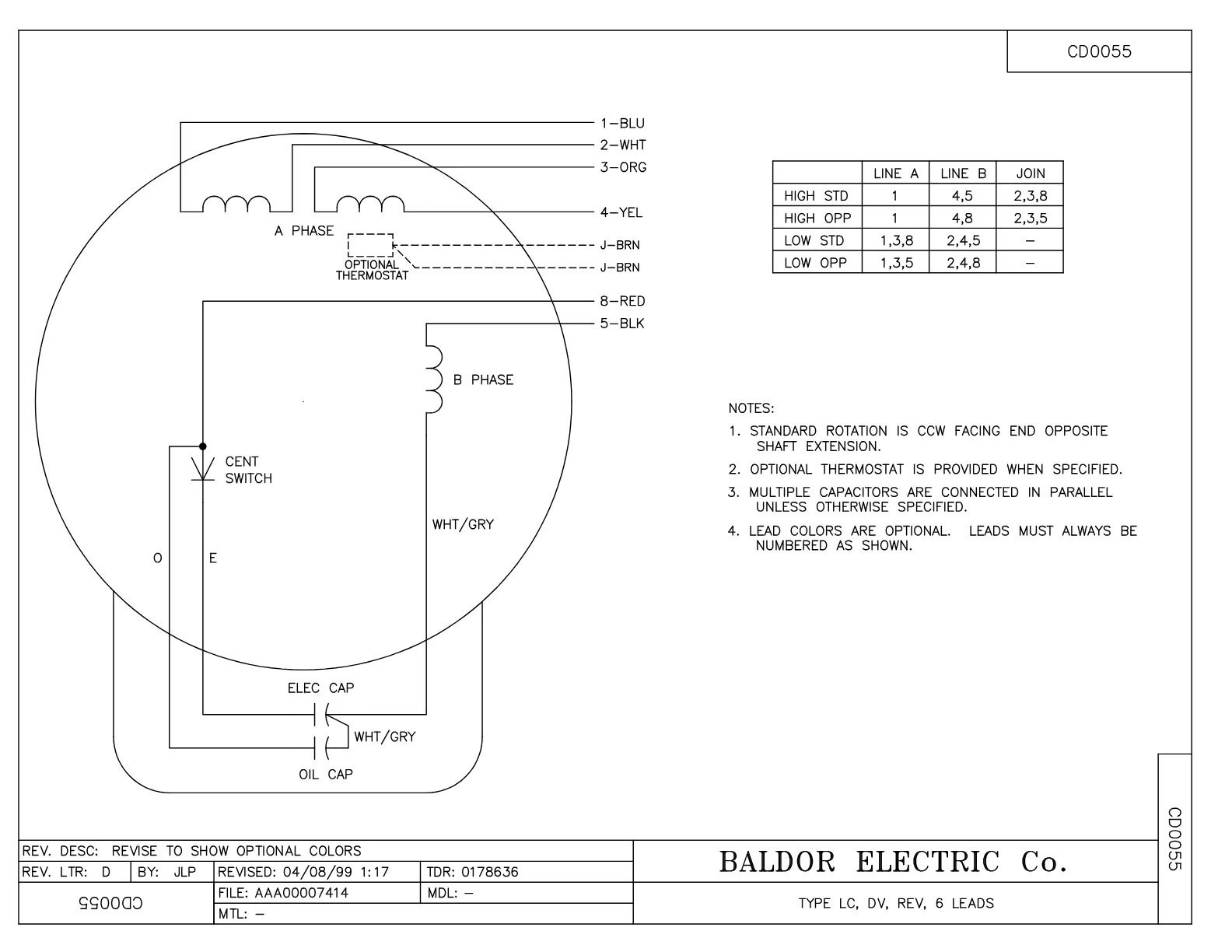

Wiring DiagramWiring DiagramPDF·40 KB·English

DatasheetDatasheetPDF·603 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

Series documents 1· shared by this product series

Dimension DrawingDimension SheetPDF·120 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 5

The genuine spare parts used for servicing and repairing the Baldor VEL11308 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
OC3050F09SP	CAPACITOR 50 MFD 370 VAC	1 pcs	69 motors
35FN3002A05SP	EXFN, PLASTIC, 6.376 OD, .638 ID	1 pcs	436 motors
35FH4006A01SP	DRIP COVER,STAMPED,W/ PRIMER	1 pcs	26 motors
MG1050Y01	CELEROL BALDOR GOLD 5 GALLON BUCKET	0.017 gal	1,997 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
