Baldor VEL11307A

Baldor-Reliance VEL11307A; 0.75 HP, 1755 rpm, single-phase 115/230 V 60 Hz, 56C frame, open enclosure general purpose AC motor.

BaldorMFR # VEL11307ASKU # YLSACBVSEWRUS8Y

EnclosureOPEN

Frame56C

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Cap Run

Output at frequency.750 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor-Reliance VEL11307A; 0.75 HP, 1755 rpm, single-phase 115/230 V 60 Hz, 56C frame, open enclosure general purpose AC motor.

Baldor VEL11307A

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureOPEN

Frame56C

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Cap Run

Output at frequency.750 HP @ 60 HZ

Phase1

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency115.0 V @ 60 HZ · 230.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsCURUSEEV

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorNo Mounting

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage3.500 A @ 230.0 V · 7.000 A @ 115.0 V

Design codeN

Drip coverDrip Cover

Duty ratingCONT

Efficiency at 100% load82.5 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)3.5 a

Front face codeTerminal Panel

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classF

Inverter codeNot Inverter

KVA codeL

Lifting lugsNo Lifting Lugs

Locked bearing indicatorLocked Bearing

Motor lead exitTerminal Panel

Motor lead terminationNone

Motor lead quantity/wire size6 @ 18 AWG

Motor type3522LC

Mounting arrangementF1

Number of poles4

Overall length12.74 IN

Power factor96

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeC-Face

Pulley shaft indicatorStandard

Rodent screenNone

RoHS statusROHS COMPLIANT

Service factor1.25

Shaft diameter0.625 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible: Connected OPP STD

Shaft slinger indicatorNo Slinger

Speed (rpm)1755 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1Automatic Thermal Overload

Winding thermal 1 locationSB

Winding thermal 2None

UPC781568849125

Nameplate

Catalog numberVEL11307A

Specification number35H993G289G1

Horsepower (HP).75

Voltage (V)115/230

Current (A)7/3.5

Speed (rpm)1755

Frame size56C

Frequency (Hz)60

Phase1

Service factor1.25

Code letter (locked rotor kVA)L

NEMA design letterN

Insulation classF

Full load average efficiency (%)82.5

Power factor96

Rating40C AMB-CONT

Drive end bearing6205

Opposite drive end bearing6203

EnclosureOPEN

Nameplate numberNP3273L

Performance

General characteristics· 115 V, 60 Hz, 0.75 hp

Line-to-line resistance at 25 °C (ohms)1.09 Ω / 1.33 Ohms B Ph

Temperature rise at rated load (°C)78° C

Temperature rise at service factor load (°C)100° C

Start configurationDOL

Breakdown torque6.17 lb-ft

Pull-up torque5.27 lb-ft

Locked-rotor torque9.16 lb-ft

Starting current (A)59 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	44	77	91	94	96	95	96	95
Efficiency %	0	60.6	76.6	82	83.2	82.4	80.7	82.4
Speed rpm	1799	1788	1777	1766	1753	1736	1718	1736
Line amps A	2.04	2.64	3.52	4.75	6.12	7.74	9.43	7.74
Power W	104	235	369	514	673	850	1043	850
Torque lb-ft	0	0.561	1.12	1.68	2.25	2.84	3.45	2.84

Documents & CAD

For this product 4

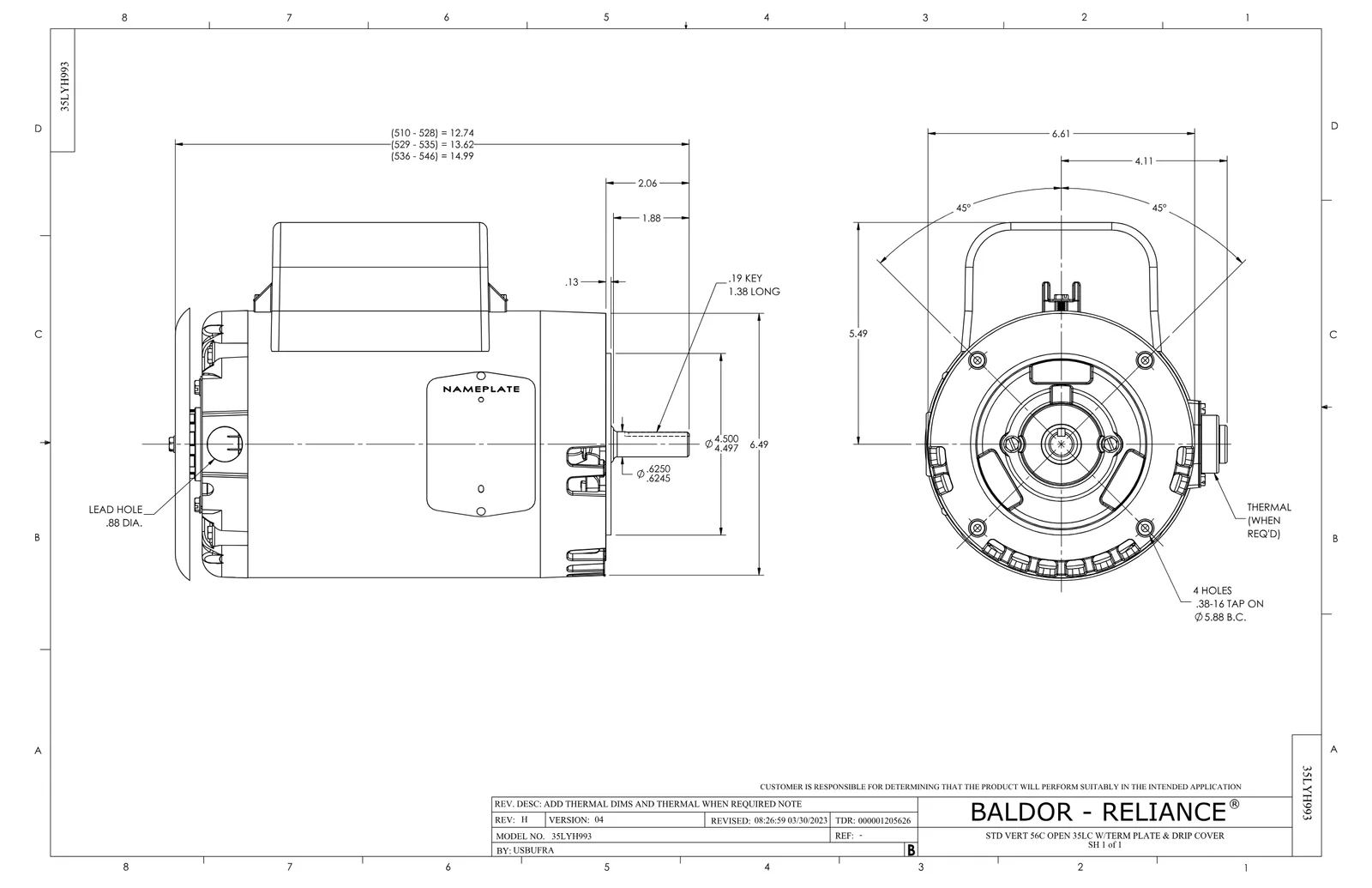

Dimension DrawingDimension SheetPDF·119 KB·English

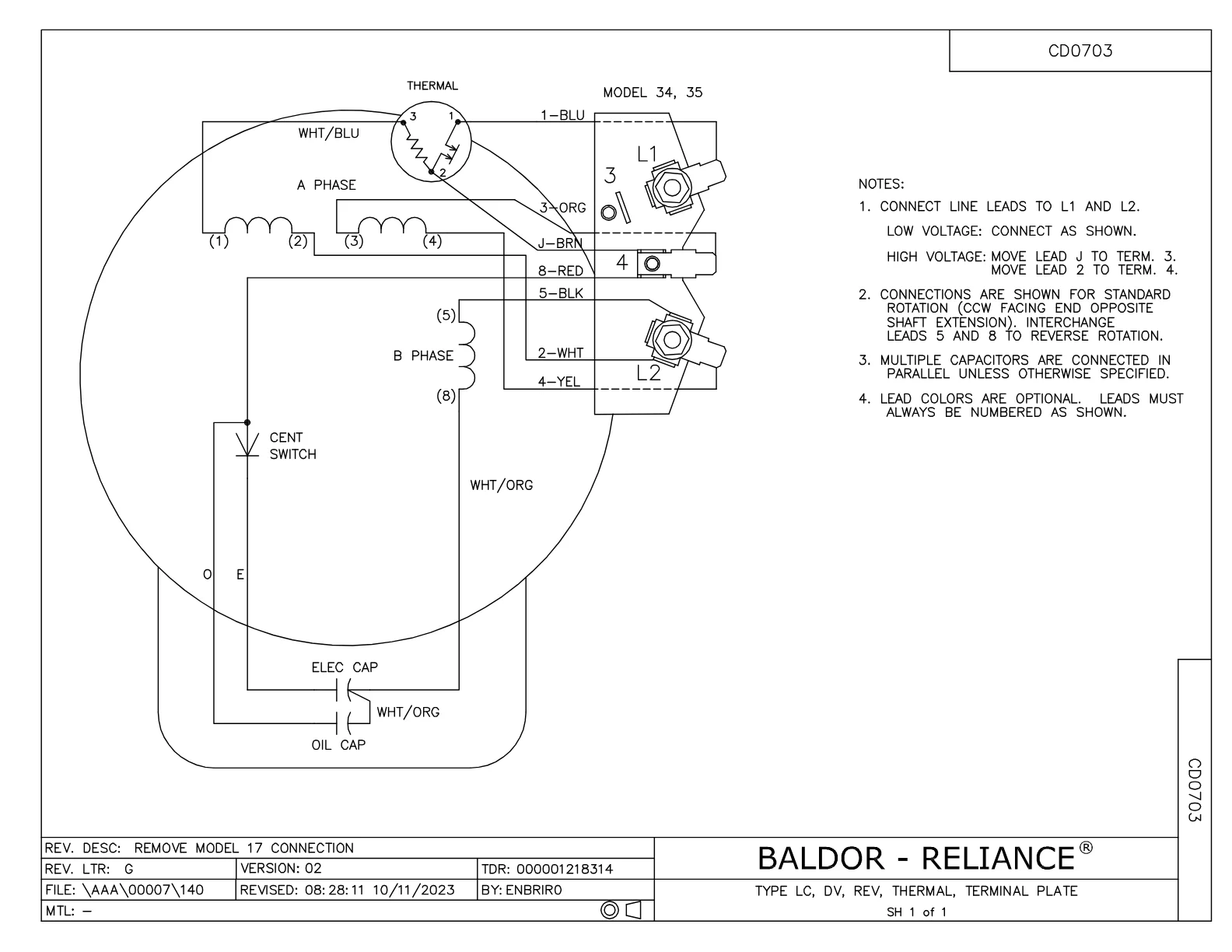

Wiring DiagramWiring DiagramPDF·42 KB·English

DatasheetDatasheetPDF·605 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 4

The genuine spare parts used for servicing and repairing the Baldor VEL11307A motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
EC1460A05SP	ELEC CAP, 460-552 MFD, 125V, 2.06D X 3.	1 pcs	17 motors
MG1050Y01	CELEROL BALDOR GOLD 5 GALLON BUCKET	0.017 gal	1,997 motors
LB1118	LABEL,WARNING (ROLL LABEL)	1 pcs	223 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
