How can I get a price quote for Baldor VEL11301A?

You can request a fast quote for Baldor VEL11301A from Yılsa Engineering. Reference part number YLSA20HZQVBVRXY. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Baldor VEL11301A in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Baldor VEL11301A genuine and new?

Yes. This Baldor product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Baldor VEL11301A?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Baldor VEL11301A

VEL11301A

BaldorMFR # VEL11301ASKU # YLSA20HZQVBVRXY

EnclosureODP

Frame56C

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Cap Run

Output at frequency.330 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor VEL11301A (VEL11301A) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for Baldor VEL11301A — price, stock availability and technical specifications.

Baldor VEL11301A

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureODP

Frame56C

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Cap Run

Output at frequency.330 HP @ 60 HZ

Phase1

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency115.0 V @ 60 HZ · 230.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsC UR US

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorNo Mounting

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage1.700 A @ 230.0 V · 2.100 A @ 208.0 V · 3.400 A @ 115.0 V

Design codeN

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load72.4 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)1.7 a

Front face codeStandard

Front shaft indicatorStandard

Heater indicatorNo Heater

Insulation classF

Inverter codeNot Inverter

KVA codeK

Lifting lugsNo Lifting Lugs

Locked bearing indicatorLocked Bearing

Motor lead exitTerminal Panel

Motor lead terminationFlying Leads

Motor lead quantity/wire size7 @ 18 AWG

Motor type3418LC

Mounting arrangementF1

Number of poles4

Overall length11.00 IN

Power factor85

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeC-Face

Pulley shaft indicatorStandard

Rodent screenNone

RoHS statusROHS COMPLIANT

Service factor1.35

Shaft diameter0.625 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)1740 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1Automatic Thermal Overload

Winding thermal 1 locationSB

Winding thermal 2None

UPC781568848609

Product TypeGeneral Purpose Motors

Nameplate

Catalog numberVEL11301A

Specification number34L588R213G1

Horsepower (HP).33

Voltage (V)115/230

Current (A)3.4/1.7

Speed (rpm)1740

Frame size56C

Frequency (Hz)60

Phase1

Service factor1.35

Code letter (locked rotor kVA)K

NEMA design letterN

Insulation classF

NEMA nominal efficiency (%)72.4

Power factor85

Rating40C AMB-CONT

Drive end bearing6203

Opposite drive end bearing6203

EnclosureODP

Nameplate numberNP1257L

Performance

General characteristics· 115 V, 60 Hz, 0.33 hp

Line-to-line resistance at 25 °C (ohms)1.7428 Ω / 5.5858 Ohms B Ph

Temperature rise at rated load (°C)35° C

Temperature rise at service factor load (°C)42° C

Start configurationDOL

Breakdown torque3.18 lb-ft

Pull-up torque2.29 lb-ft

Locked-rotor torque4.26 lb-ft

Starting current (A)24.1 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	38	62	72	81	85	87	89	88
Efficiency %	0	32.1	64.5	69.3	73.5	76.7	73.7	75.5
Speed rpm	1793.2	1780.3	1770	1754.7	1739.9	1725.3	1703.3	1716
Line amps A	1.69	1.96	2.31	2.87	3.43	3.99	4.81	4.32
Power W	73.1	139	193	266	335	402	491	438
Torque lb-ft	0	0.177	0.495	0.74	0.996	1.26	1.5	1.36

Documents & CAD

For this product 4

Dimension DrawingDimension SheetPDF·94 KB·English

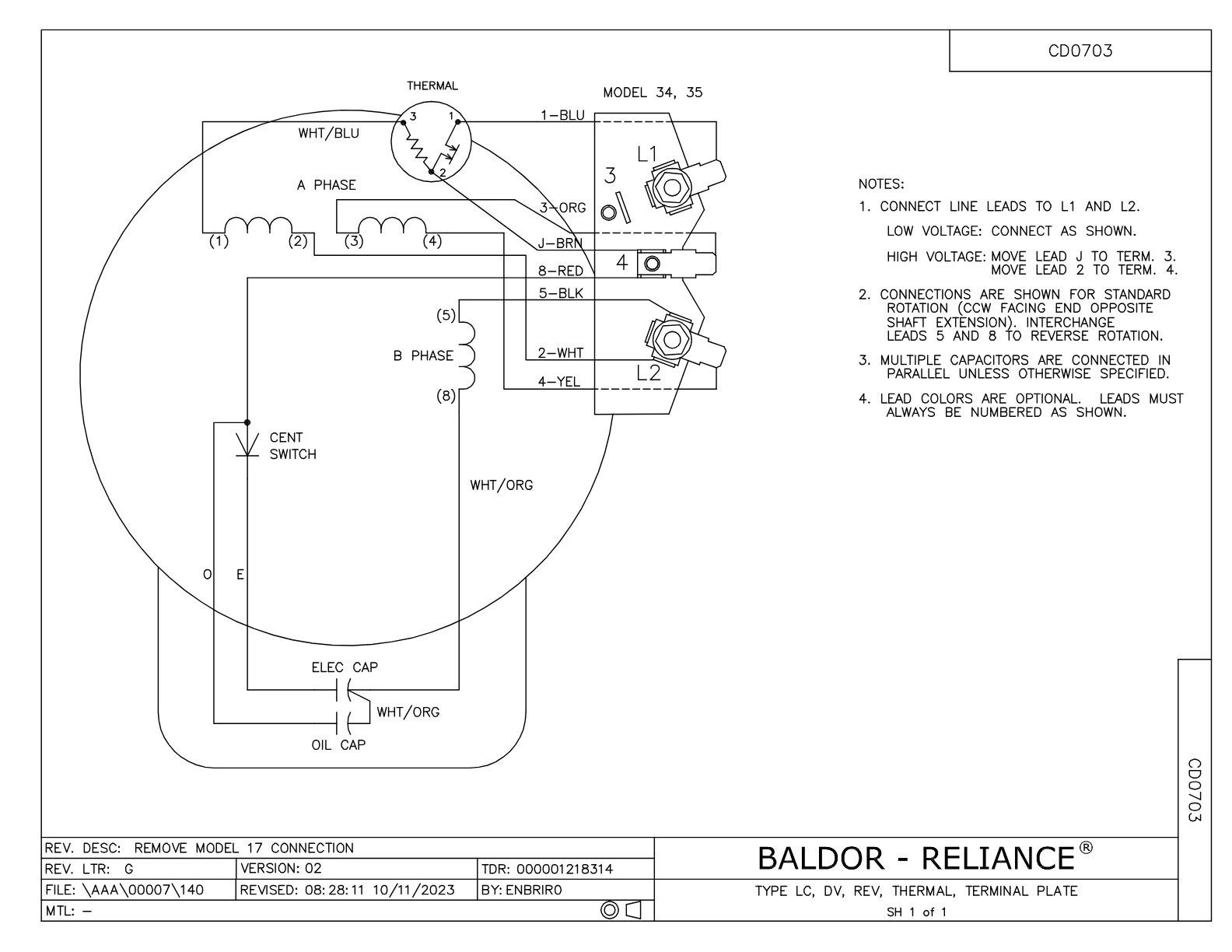

Wiring DiagramWiring DiagramPDF·42 KB·English

DatasheetDatasheetPDF·581 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

Spare Parts 6

The genuine spare parts used for servicing and repairing the Baldor VEL11301A motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
OC3016F12SP	CYL OIL CAP 16MFD/370V	1 pcs	15 motors
34EP3401A01SP	PU ENDPLATE, MACH	1 pcs	36 motors
34CB4501SP	TERMINAL BOX LID, STAMPED X (PLATED)	1 pcs	95 motors
MG1050Y01	CELEROL BALDOR GOLD 5 GALLON BUCKET	0.014 gal	1,997 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
LB1118	LABEL,WARNING (ROLL LABEL)	1 pcs	223 motors
