Baldor VDP3320

Baldor VDP3320 is a general purpose DC electric motor rated 0.33 HP, 1750 rpm, with 56C frame and TENV enclosure.

BaldorMFR # VDP3320SKU # YLSK5DLH6PPI71D

Armature voltage (V)90 V

Base speed (rpm)1750 rpm

EnclosureTENV

Frame56C

Frame materialSteel

Output power0.330 HP

Have questions?Chat on WhatsApp

About This Product

Baldor VDP3320 is a general purpose DC electric motor rated 0.33 HP, 1750 rpm, with 56C frame and TENV enclosure.

Baldor VDP3320

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Armature voltage (V)90 V

Base speed (rpm)1750 rpm

EnclosureTENV

Frame56C

Frame materialSteel

Output power0.330 HP

Agency approvalsCSA · UR

Ambient temperature (°C)40 °C

Armature current (A)3.2 a

Armature inertia10.535 lb-ft2

Base indicatorNo Mounting

Bearing grease typePolyrex EM (-20F +300F)

Drip coverNo Drip Cover

Duty ratingCONT

Feedback deviceNO FEEDBACK

Heater indicatorNo Heater

Insulation classF

Lifting lugsNo Lifting Lugs

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size2 @ 18 AWG

Mounting arrangementF1

Overall length13.19 IN

Product familyGeneral Purpose

Pulley end bearing typeSealed Bearing

RoHS statusROHS COMPLIANT

Service factor1.00

Shaft diameter0.625 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Motor standardsNEMA

UPC781568878941

Performance

General characteristics· 90 Arm V, 0.33 HP

Armature resistance (ohms)2.164 ohms

Armature inertia10.5354 LI²

Documents & CAD

For this product 2

Wiring DiagramWiring DiagramPDF·25 KB·English

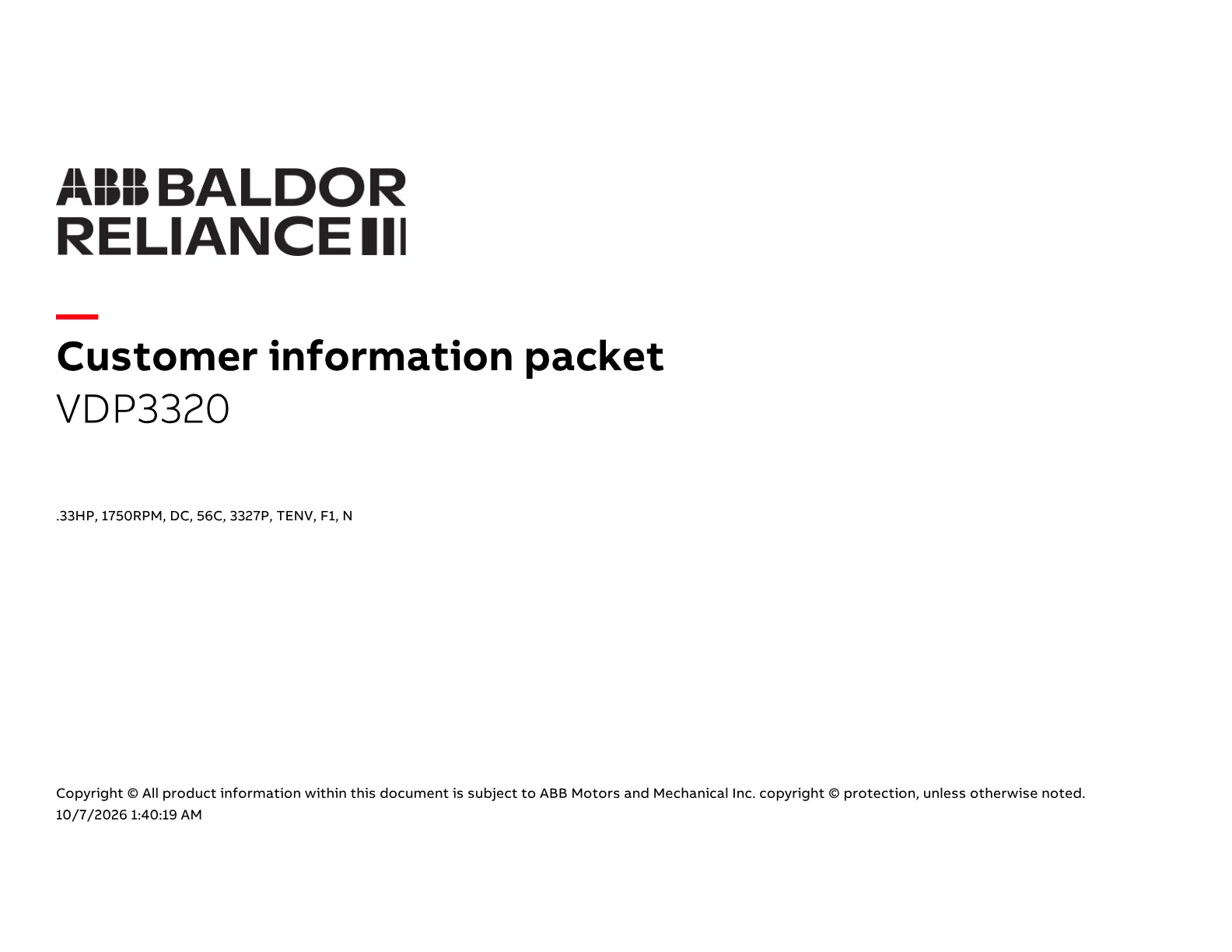

DatasheetDatasheetPDF·1.0 MB·English

Series documents 1· shared by this product series

Dimension DrawingDimension SheetPDF·96 KB·English

CAD Files 7

3D Model

2D Drawing

Spare Parts 5

The genuine spare parts used for servicing and repairing the Baldor VDP3320 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
BP5011T01SP	CARBON BRUSH - 33P, 90V	1 pcs	11 motors
BP5012A04SP	BRUSH SPRING FOR DC MOTORS	1 pcs	33 motors
33RK5004SP	ROCKERARM	1 pcs	26 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
