How can I get a price quote for Baldor VCP2276T?

You can request a fast quote for Baldor VCP2276T from Yılsa Engineering. Reference part number YLSEEZH1DEO05TA. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Baldor VCP2276T in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Baldor VCP2276T genuine and new?

Yes. This Baldor product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Baldor VCP2276T?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

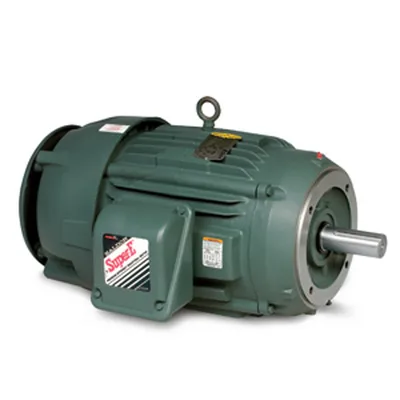

Photo may not represent actual item. Refer to name and product specs for all details.

Baldor VCP2276T

Severe Duty Motor - 7-1/2 hp, 1200 rpm, 3 ph, 230/460 V, 254TC Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 1175 rpm Base, C-Face / Footless Mount, Continuous Duty

BaldorMFR # VCP2276TSKU # YLSEEZH1DEO05TA

Motor CategoryGeneral Severe Duty Motor

Motor Phase3 ph

Motor Horsepower7-1/2 hp

Synchronous Rpm1200 rpm

Motor Supply Voltage230/460 V

Frame Size254TC

Have questions?Chat on WhatsApp

About This Product

Severe Duty Motor - 7-1/2 hp, 1200 rpm, 3 ph, 230/460 V, 254TC Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 1175 rpm Base, C-Face / Footless Mount, Continuous Duty

Baldor VCP2276T

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Motor CategoryGeneral Severe Duty Motor

Motor Phase3 ph

Motor Horsepower7-1/2 hp

Synchronous Rpm1200 rpm

Motor Supply Voltage230/460 V

Frame Size254TC

Enclosure TypeTEFC (Totally Enclosed Fan Cooled)

Frequency Rating60 Hz

Duty Condition TypeContinuous Duty

Base RPM1175 rpm

Full Load Efficiency89.50 %

Volts @ Frequency230 V @ 60 Hz; 460 V @ 60 Hz

Shaft Diameter1.6250 in

Overall Length C Dimension25.88 in

Mounting TypeC-Face / Footless

Service Factor1.15

Frame MaterialCast Iron

Insulation ClassF

Standards MetCSA, UR

Harmonization Code8501.52.4000

Weight258 lbs

ApplicationsPetro-chemical plants, mines, foundries, pulp and paper plants, waste management facilities, chemical plants, tropical climates and other processing industry applications requiring corrosion protection from severe environmental operating conditions.

Additional Details1.15 Service Factor, corrosion resistant epoxy finish, regreasable ball bearings, oversized rotatable cast iron conduit box, cast iron frames, Forsheda shaft seal, moisture resistant copper windings, Class F insulation, tropicalization, stainless steel nameplate and corrosion resistant hardware. VECP and CECP Super-E motors have NEMA Premium® efficiency.

Product TypeSevere Duty Motors
