How can I get a price quote for Baldor VBM3116T?

You can request a fast quote for Baldor VBM3116T from Yılsa Engineering. Reference part number YLSMX4I5G9G1ZA0. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Baldor VBM3116T in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Baldor VBM3116T genuine and new?

Yes. This Baldor product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Baldor VBM3116T?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

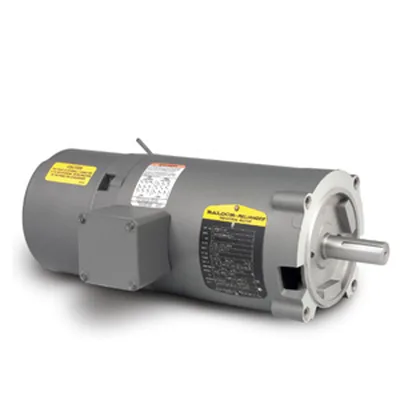

Baldor VBM3116T

General Purpose Brake Motor - 1 hp, 1800 rpm, 3 ph, 208-230/460 V, 143TC Frame, ODP (Open Drip-Proof) Enclosure, 60 Hz, C-Face / Footless Mount, Continuous Duty

BaldorMFR # VBM3116TSKU # YLSMX4I5G9G1ZA0

Motor CategoryGeneral Purpose Brake Motor

Motor Phase3 ph

Motor Horsepower1 hp

Synchronous Rpm1800 rpm

Motor Supply Voltage208-230/460 V

Frame Size143TC

Have questions?Chat on WhatsApp

About This Product

General Purpose Brake Motor - 1 hp, 1800 rpm, 3 ph, 208-230/460 V, 143TC Frame, ODP (Open Drip-Proof) Enclosure, 60 Hz, C-Face / Footless Mount, Continuous Duty

Baldor VBM3116T

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Motor CategoryGeneral Purpose Brake Motor

Motor Phase3 ph

Motor Horsepower1 hp

Synchronous Rpm1800 rpm

Motor Supply Voltage208-230/460 V

Frame Size143TC

Enclosure TypeODP (Open Drip-Proof)

Frequency Rating60 Hz

Duty Condition TypeContinuous Duty

Full Load Current1.60 A

Full Load Efficiency82.50 %

Amps @ Voltage3.1 A @ 230 V; 3.4 A @ 208 V; 1.6 A @ 460 V

Volts @ Frequency208 V @ 60 Hz; 230 V @ 60 Hz; 460 V @ 60 Hz

Shaft Diameter0.8750 in

Overall Length C Dimension15.32 in

Warranty2 Year Warranty

Type Of BearingBall

NEMA Design ClassB

Service Factor1.15

Frame MaterialSteel

Insulation ClassB

Thermal ProtectionAutomatic/Manual OFF

IP Rating22/23

Standards MetCSA, UR

Harmonization Code8501.51.6040

Weight39 lbs

ApplicationsMachine tools, conveyors, door operators, speed reducers, any application requiring quick stops and positive hold.

Additional DetailsSpring-set brake. Power off operation manual release. Resets automatically. Brakes internally connected to motor on 215T and smaller. Super-E motors are 1.15 service factor and suitable for inverter use.

Mounting TypeC-Face / Footless

Product TypeBrake Motors
