Baldor UCM575

Farm Duty - Vane Axial Grain Dryer Motor - 5 hp / 7-1/2 hp, 3600 rpm, 3 ph, 230/460 V, 184TZ Frame, OAO (Open Air-Over) Enclosure, 60 Hz, 3450 rpm Base, Foot Mount, Continuous Duty

BaldorMFR # UCM575SKU # YLSN0SP3X7A7OD9

EnclosureOPAO

Frame184TZ

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency7.500 HP @ 60 HZ · 5.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Farm Duty - Vane Axial Grain Dryer Motor - 5 hp / 7-1/2 hp, 3600 rpm, 3 ph, 230/460 V, 184TZ Frame, OAO (Open Air-Over) Enclosure, 60 Hz, 3450 rpm Base, Foot Mount, Continuous Duty

Baldor UCM575

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureOPAO

Frame184TZ

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency7.500 HP @ 60 HZ · 5.000 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)3600 RPM @ 60 HZ

Voltage at frequency230.0 V @ 60 HZ · 460.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsUR · CSA

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage19.000 A @ 230.0 V · 20.400 A @ 208.0 V · 9.500 A @ 460.0 V

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load84.0 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)9.5 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classF

Inverter codeNot Inverter

KVA codeF

Lifting lugsNo Lifting Lugs

Locked bearing indicatorLocked Bearing

Motor lead exitPipe Or Pipe Adaptor

Motor lead terminationFlying Leads

Motor lead quantity/wire size9 @ 16 AWG

Motor type3628M

Mounting arrangementF1

Number of poles2

Overall length15.37 IN

Power factor87

Product familyGeneral Purpose

Product typeFARM DUTY

Pulley end bearing typeBall

Pulley face codeStandard

Pulley shaft indicatorTapped & Key

Rodent screenNone

RoHS statusROHS NON-COMPLIANT

Service factor1.00

Shaft diameter1.125 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)3450 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNormally Closed Thermostat

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568205419

Motor CategoryGrain Dryer Motor (Vane Axial)

Motor Supply Voltage230/460 V

Base RPM3450 rpm

Warranty2 Year Warranty

Type Of BearingBall

Harmonization Code8501.52.4000

Weight67 lbs

ApplicationsVane axial fan crop dryers.

Additional DetailsShaft 3/4” longer than NEMA standard, shaft keyed, drilled and tapped with internal 1/4-20 tap 1” deep. Thermostats. Epoxy paint. TEAO motors have sealed bearings, drive end seal and v-ring slinger to prevent moisture and contaminant ingress.

Mounting TypeFoot

Nameplate

Catalog numberUCM575

Specification number36F551-2512G1

Horsepower (HP)5-7.5 AIR OVER

Voltage (V)230/460

Current (A)19/9.5

Speed (rpm)3450

Frame size184TZ

Frequency (Hz)60

Phase3

Service factor1.00

Code letter (locked rotor kVA)F

NEMA design letter-

Insulation classF

NEMA nominal efficiency (%)84

Power factor87

Rating40C AMB-CONT

Drive end bearing6206

Opposite drive end bearing6205

EnclosureOPAO

Nameplate numberNP1279L

Performance

General characteristics· 460 V, 60 Hz, 7.5 hp

Line-to-line resistance at 25 °C (ohms)2.17 Ω

Start configurationDOL

Breakdown torque40 lb-ft

Pull-up torque36.1 lb-ft

Locked-rotor torque37 lb-ft

Starting current (A)51.4 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%
Power factor %	17	54	74	83	87	88	89
Efficiency %	0	70.7	80.5	83.4	84	83.9	82.2
Speed rpm	3590	3558	3526	3488	3450	3406	3361
Line amps A	4	4.68	6.02	7.68	9.55	11.8	14
Power W	542	2030	3537	5072	6650	8252	9930
Torque lb-ft	0	2.84	5.68	8.53	11.4	14.3	17.1

Documents & CAD

For this product 3

Wiring DiagramWiring DiagramPDF·41 KB·English

DatasheetDatasheetPDF·609 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

Series documents 1· shared by this product series

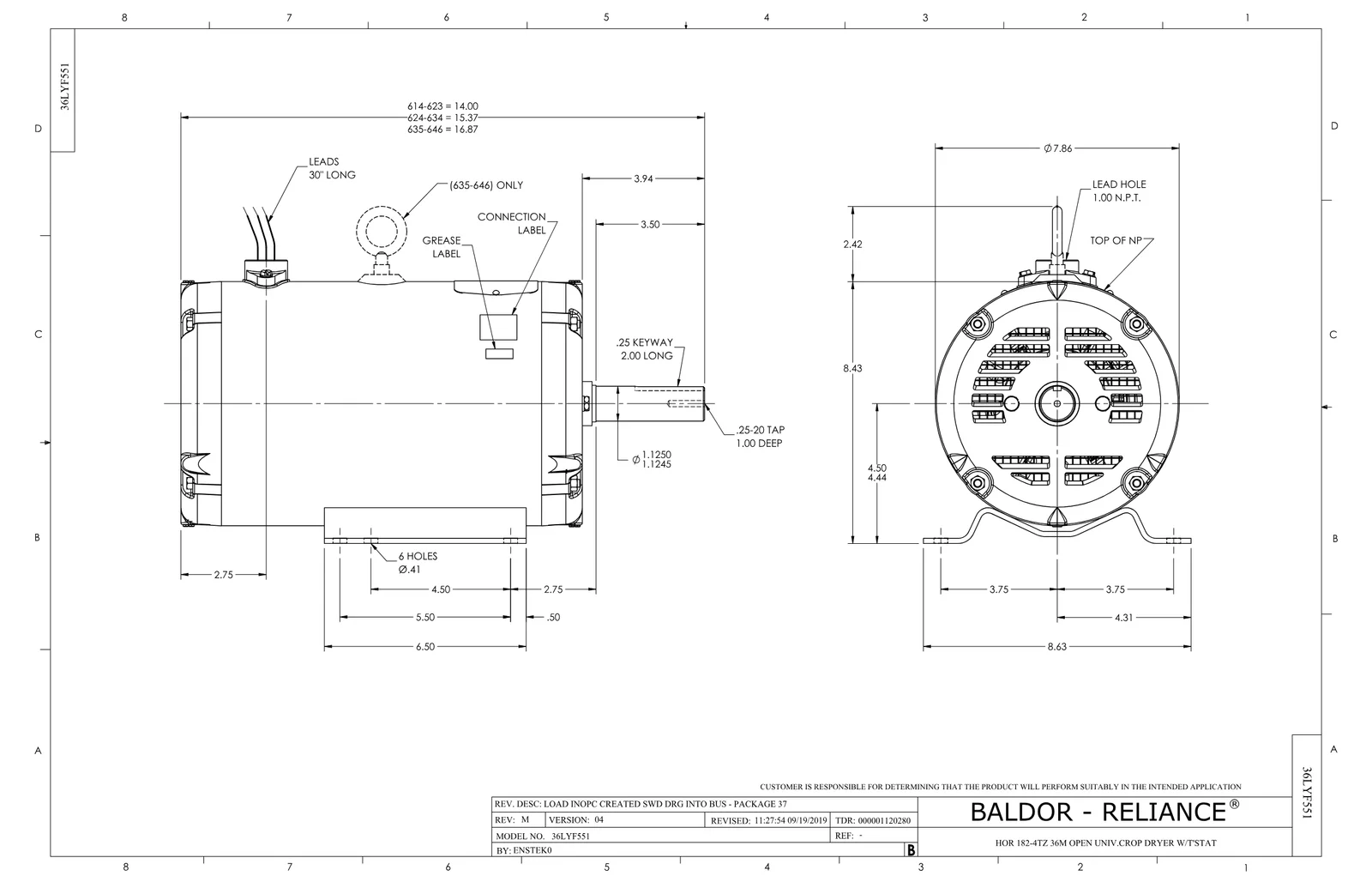

Dimension DrawingDimension SheetPDF·122 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 2

The genuine spare parts used for servicing and repairing the Baldor UCM575 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.
