Baldor UCLE570

Farm Duty - Vane Axial Grain Dryer Motor - 5 hp / 7-1/2 hp, 3600 rpm, 1 ph, 230 V, 182TZ Frame, TEAO (Totally Enclosed Air Over) Enclosure, 60 Hz, 3450 rpm Base, Foot Mount, Continuous Duty

BaldorMFR # UCLE570SKU # YLS3GYBNZYWBXS4

EnclosureTEAO

Frame182TZ

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Cap Run

Output at frequency7.000 HP @ 60 HZ · 5.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Farm Duty - Vane Axial Grain Dryer Motor - 5 hp / 7-1/2 hp, 3600 rpm, 1 ph, 230 V, 182TZ Frame, TEAO (Totally Enclosed Air Over) Enclosure, 60 Hz, 3450 rpm Base, Foot Mount, Continuous Duty

Baldor UCLE570

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEAO

Frame182TZ

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Cap Run

Output at frequency7.000 HP @ 60 HZ · 5.000 HP @ 60 HZ

Phase1

Synchronous speed at frequency (rpm)3600 RPM @ 60 HZ

Voltage at frequency230.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsUR · CSA

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage20.500 A @ 230.0 V

Design codeL

Drip coverNo Drip Cover

Duty ratingCONT

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)20.5 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classH

Inverter codeNot Inverter

KVA codeK

Lifting lugsStandard Lifting Lugs

Locked bearing indicatorLocked Bearing

Motor lead exitPipe Or Pipe Adaptor

Motor lead terminationFlying Leads

Motor lead quantity/wire size2 @ 10 AWG, A PH

Motor type3646LC

Mounting arrangementF1

Number of poles2

Overall length16.87 IN

Product familyGeneral Purpose

Product typeFARM DUTY

Pulley end bearing typeBall

Pulley face codeStandard

Pulley shaft indicatorTapped & Key

Rodent screenNone

RoHS statusROHS COMPLIANT

Service factor1.00

Shaft diameter1.125 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorShaft Slinger

Speed (rpm)3450 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNormally Closed Thermostat

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568222058

Motor CategoryGrain Dryer Motor (Vane Axial)

Motor Supply Voltage230 V

Base RPM3450 rpm

Full Load Efficiency84.00 %

Harmonization Code8501.40.6040

Weight94 lbs

ApplicationsVane axial fan crop dryers.

Additional DetailsShaft 3/4” longer than NEMA standard, shaft keyed, drilled and tapped with internal 1/4-20 tap 1” deep. Thermostats. Epoxy paint. TEAO motors have sealed bearings, drive end seal and v-ring slinger to prevent moisture and contaminant ingress.

Mounting TypeFoot

Nameplate

Catalog numberUCLE570

Specification number36Q214X572G1

Horsepower (HP)5-7 AIR OVER

Voltage (V)230

Current (A)20.5-27.7

Speed (rpm)3450

Frame size182TZ

Frequency (Hz)60

Phase1

Service factor1.00

Code letter (locked rotor kVA)K

NEMA design letterL

Insulation classH

Rating40C AMB-CONT

Drive end bearing6206

Opposite drive end bearing6205

EnclosureTEAO

Nameplate numberNP1279L

Performance

General characteristics· 230 V, 60 Hz, 7 hp

Line-to-line resistance at 25 °C (ohms)0.197 Ω / 0.838 Ohms B Ph

Start configurationDOL

Breakdown torque37.3 lb-ft

Pull-up torque20 lb-ft

Locked-rotor torque24.1 lb-ft

Starting current (A)239 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%
Power factor %	54	95	99	98	99	96	93
Efficiency %	0	67.4	78.3	87.1	83.1	84.6	84.9
Speed rpm	3595	3577	3557	3536	3513	3487	3460
Line amps A	6	9.39	15.4	20.7	28.4	35.8	43.7
Power W	745	2043	3491	4673	6489	7907	9377
Torque lb-ft	0	2.71	5.41	8.1	10.8	13.5	16.2

Documents & CAD

For this product 4

Dimension DrawingDimension SheetPDF·113 KB·English

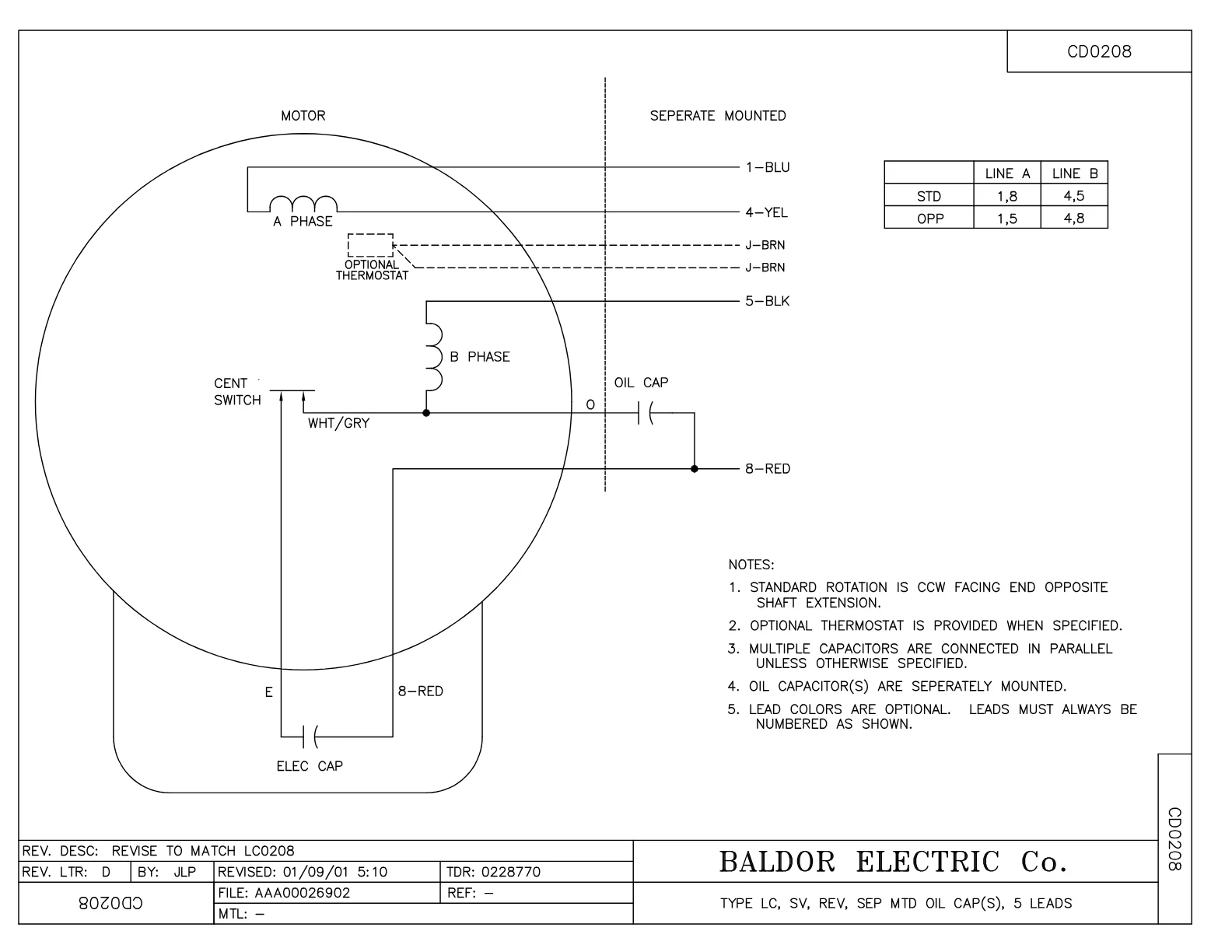

Wiring DiagramWiring DiagramPDF·42 KB·English

DatasheetDatasheetPDF·612 KB·English

Performance CurvePerformance CurvePDF·61 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 6

The genuine spare parts used for servicing and repairing the Baldor UCLE570 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
OC3060F10SP	CYL OIL CAP 60MFD/370V	1 pcs	14 motors
EC1216C06SP	ELEC CAP, 216-259 MFD, 250V, 2.06D X 4.	2 pcs	45 motors
HW4600B36SP	V-RING SLINGER 1.188 X 1.380 X .24 VITON	1 pcs	252 motors
35CB4802A02SP	CAPACITOR COVER, STAMPED X	2 pcs	103 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors

Accessories 2

Genuine accessories that can be used with the Baldor UCLE570 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
