Baldor UCLE3145

Farm Duty - Vane Axial Grain Dryer Motor - 3 hp / 4-1/2 hp, 3600 rpm, 1 ph, 230 V, 143TZ Frame, TEAO (Totally Enclosed Air Over) Enclosure, 60 Hz, 3450 rpm Base, Foot Mount, Continuous Duty

BaldorMFR # UCLE3145SKU # YLSOEPBTOW312AV

EnclosureTEAO

Frame143TZ

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Cap Run

Output at frequency4.500 HP @ 60 HZ · 3.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Farm Duty - Vane Axial Grain Dryer Motor - 3 hp / 4-1/2 hp, 3600 rpm, 1 ph, 230 V, 143TZ Frame, TEAO (Totally Enclosed Air Over) Enclosure, 60 Hz, 3450 rpm Base, Foot Mount, Continuous Duty

Baldor UCLE3145

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEAO

Frame143TZ

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Cap Run

Output at frequency4.500 HP @ 60 HZ · 3.000 HP @ 60 HZ

Phase1

Synchronous speed at frequency (rpm)3600 RPM @ 60 HZ

Voltage at frequency230.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsCURUS · C UR US

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage12.500 A @ 230.0 V

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load82.5 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)12.5 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classF

Inverter codeNot Inverter

KVA codeK

Lifting lugsNo Lifting Lugs

Locked bearing indicatorLocked Bearing

Motor lead exitPipe Or Pipe Adaptor

Motor lead terminationFlying Leads

Motor lead quantity/wire size2 @ 14 AWG, A PH

Motor type3540LC

Mounting arrangementF1

Number of poles2

Overall length15.62 IN

Power factor97

Product familyGeneral Purpose

Product typeFARM DUTY

Pulley end bearing typeBall

Pulley face codeStandard

Pulley shaft indicatorTapped & Key

Rodent screenNone

RoHS statusROHS NON-COMPLIANT

Service factor1.00

Shaft diameter0.875 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)3450 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNormally Closed Thermostat

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568221976

Motor CategoryGrain Dryer Motor (Vane Axial)

Motor Supply Voltage230 V

Base RPM3450 rpm

Harmonization Code8501.40.6040

Weight60 lbs

ApplicationsVane axial fan crop dryers.

Additional DetailsShaft 3/4” longer than NEMA standard, shaft keyed, drilled and tapped with internal 1/4-20 tap 1” deep. Thermostats. Epoxy paint. TEAO motors have sealed bearings, drive end seal and v-ring slinger to prevent moisture and contaminant ingress.

Mounting TypeFoot

Nameplate

Catalog numberUCLE3145

Specification number35E2504T164G1

Horsepower (HP)3-4.5

Voltage (V)230

Current (A)12.5-18.5

Speed (rpm)3450

Frame size143TZ

Frequency (Hz)60

Phase1

Service factor1.00

Code letter (locked rotor kVA)K

NEMA design letter-

Insulation classF

NEMA nominal efficiency (%)82.5

Power factor97

Rating40C AMB-CONT

Drive end bearing6206

Opposite drive end bearing6203

EnclosureTEAO

Nameplate numberNP1279L

Performance

General characteristics· 230 V, 60 Hz, 4.5 hp

Line-to-line resistance at 25 °C (ohms)0.519 Ω / 1.58 Ohms B Ph

Start configurationDOL

Breakdown torque14.6 lb-ft

Pull-up torque8 lb-ft

Locked-rotor torque11.7 lb-ft

Starting current (A)108 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%
Power factor %	80	95	97	98	97	97	96
Efficiency %	0	69.1	78.6	82.3	79.6	78.3	73.5
Speed rpm	3589	3566	3539	3507	3473	3421	3364
Line amps A	2.7	5.9	9.5	13.9	18.2	24.1	30.5
Power W	497	1209	2111	2996	4090	5120	6436
Torque lb-ft	0	1.65	3.3	4.95	6.6	8.25	9.9

Documents & CAD

For this product 3

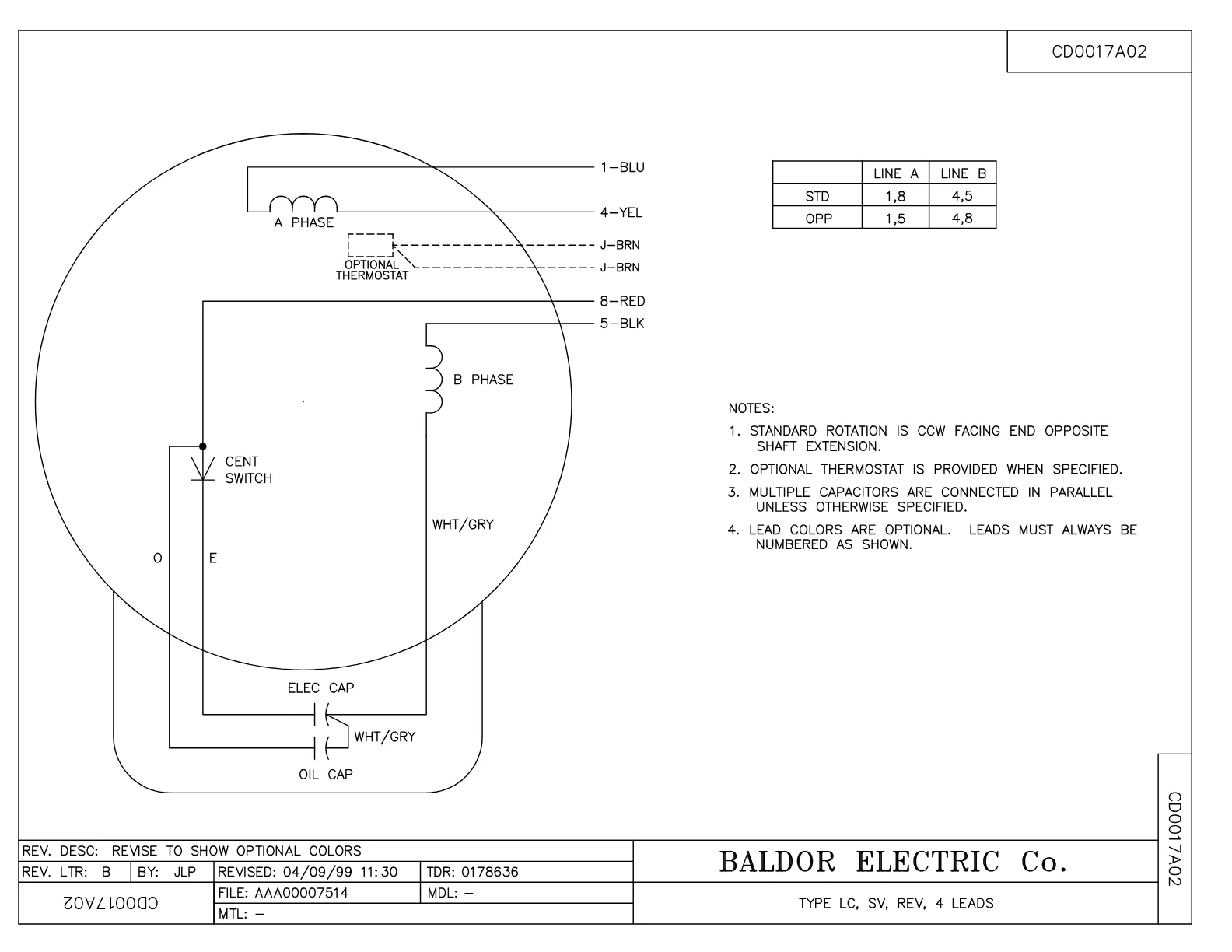

Wiring DiagramWiring DiagramPDF·37 KB·English

DatasheetDatasheetPDF·613 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

Series documents 1· shared by this product series

Dimension DrawingDimension SheetPDF·122 KB·English

CAD Files 3

3D Model

SolidWorks.sldprt · 2.0 MB

2D Drawing

Spare Parts 5

The genuine spare parts used for servicing and repairing the Baldor UCLE3145 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
OC3040F18SP	7YL OIL CAP 40MFD/370V	1 pcs	30 motors
EC1216C06SP	ELEC CAP, 216-259 MFD, 250V, 2.06D X 4.	1 pcs	45 motors
35CB4802A02SP	CAPACITOR COVER, STAMPED X	2 pcs	103 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
