Baldor UCL7510

Farm Duty - Vane Axial Grain Dryer Motor - 7-1/2 hp / 10-1/2 hp, 3600 rpm, 1 ph, 230 V, 215Z Frame, OAO (Open Air-Over) Enclosure, 60 Hz, 3450 rpm Base, Foot Mount, Continuous Duty

BaldorMFR # UCL7510SKU # YLSCPCEID3FNNJZ

EnclosureOPAO

Frame215Z

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Induction Run

Output at frequency7.500 HP @ 60 HZ · 10.500 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Farm Duty - Vane Axial Grain Dryer Motor - 7-1/2 hp / 10-1/2 hp, 3600 rpm, 1 ph, 230 V, 215Z Frame, OAO (Open Air-Over) Enclosure, 60 Hz, 3450 rpm Base, Foot Mount, Continuous Duty

Baldor UCL7510

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureOPAO

Frame215Z

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Induction Run

Output at frequency7.500 HP @ 60 HZ · 10.500 HP @ 60 HZ

Phase1

Synchronous speed at frequency (rpm)3600 RPM @ 60 HZ

Voltage at frequency230.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsUR · CSA

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage37.000 A @ 230.0 V

Design codeL

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load81.0 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)37.0 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classF

Inverter codeNot Inverter

KVA codeF

Lifting lugsStandard Lifting Lugs

Locked bearing indicatorLocked Bearing

Motor lead exitPipe Or Pipe Adaptor

Motor lead terminationFlying Leads

Motor lead quantity/wire size2 @ 8 AWG, A PH

Motor type3729L

Mounting arrangementF1

Number of poles2

Overall length17.44 IN

Power factor82

Product familyGeneral Purpose

Product typeFARM DUTY

Pulley end bearing typeSealed Bearing

Pulley face codeStandard

Pulley shaft indicatorTapped & Key

Rodent screenIncluded

Service factor1.00

Shaft diameter1.125 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)3450 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNormally Closed Thermostat

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568122211

Motor CategoryGrain Dryer Motor (Vane Axial)

Motor Supply Voltage230 V

Base RPM3450 rpm

Harmonization Code8501.40.6040

Weight108 lbs

ApplicationsVane axial fan crop dryers.

Additional DetailsShaft 3/4” longer than NEMA standard, shaft keyed, drilled and tapped with internal 1/4-20 tap 1” deep. Thermostats. Epoxy paint. TEAO motors have sealed bearings, drive end seal and v-ring slinger to prevent moisture and contaminant ingress.

Mounting TypeFoot

Nameplate

Catalog numberUCL7510

Specification number37E767Z089G1

Horsepower (HP)7.5-10.5 AIR OVER

Voltage (V)230

Current (A)37-46

Speed (rpm)3450

Frame size215Z

Frequency (Hz)60

Phase1

Service factor1.00

Code letter (locked rotor kVA)F

NEMA design letterL

Insulation classF

NEMA nominal efficiency (%)81

Power factor82

Rating40C AMB-CONT

Drive end bearing6307

Opposite drive end bearing6206

EnclosureOPAO

Nameplate numberNP1279L

Performance

General characteristics· 230 V, 60 Hz, 10.5 hp

Line-to-line resistance at 25 °C (ohms)0.194 Ω / 0.743 Ohms B Ph

Start configurationDOL

Breakdown torque36 lb-ft

Pull-up torque16 lb-ft

Locked-rotor torque17 lb-ft

Starting current (A)205 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%
Power factor %	17	46	65	76	82	85	86
Efficiency %	0	64.8	76	79.3	79.8	78.7	76.3
Speed rpm	3595	3570	3544	3515	3583	3444	3397
Line amps A	25.7	28.5	34.3	42.2	52	63.6	77.5
Power W	1005	3091	5233	7461	10077	12276	14988
Torque lb-ft	0	3.95	7.9	11.85	15.8	19.75	23.7

Documents & CAD

For this product 4

Dimension DrawingDimension SheetPDF·134 KB·English

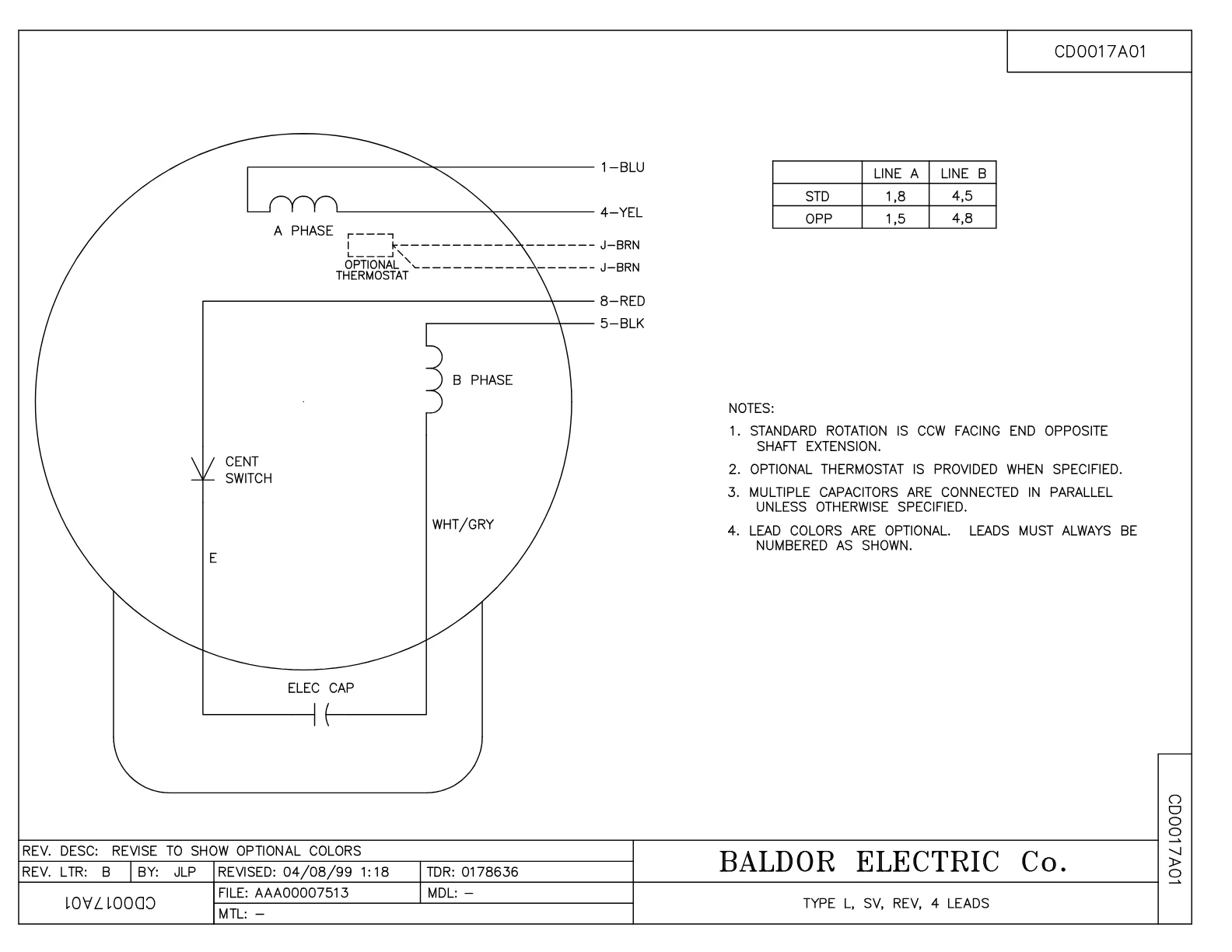

Wiring DiagramWiring DiagramPDF·35 KB·English

DatasheetDatasheetPDF·617 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 4

The genuine spare parts used for servicing and repairing the Baldor UCL7510 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
EC1216C06SP	ELEC CAP, 216-259 MFD, 250V, 2.06D X 4.	2 pcs	45 motors
35CB4802A02SP	CAPACITOR COVER, STAMPED X	2 pcs	103 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
