Baldor UCL1015

Baldor UCL1015 is a general purpose farm duty air-over AC electric motor rated 10-15 HP, 3450 rpm, single phase 230 V 60 Hz, with 215Z frame and ODP (open drip-proof) enclosure.

BaldorMFR # UCL1015SKU # YLSNK6P0FTHJET

EnclosureODP

Frame215Z

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Cap Run

Output at frequency15.000 HP @ 60 HZ · 10.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor UCL1015 is a general purpose farm duty air-over AC electric motor rated 10-15 HP, 3450 rpm, single phase 230 V 60 Hz, with 215Z frame and ODP (open drip-proof) enclosure.

Baldor UCL1015

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureODP

Frame215Z

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Cap Run

Output at frequency15.000 HP @ 60 HZ · 10.000 HP @ 60 HZ

Phase1

Synchronous speed at frequency (rpm)3600 RPM @ 60 HZ

Voltage at frequency230.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsUR · CSA

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage45.000 A @ 230.0 V

Design codeL

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load84.0 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)45.0 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classF

Inverter codeNot Inverter

KVA codeG

Lifting lugsStandard Lifting Lugs

Locked bearing indicatorLocked Bearing

Motor lead exitPipe Or Pipe Adaptor

Motor lead terminationFlying Leads

Motor lead quantity/wire size2 @ 8 AWG, A PH

Motor type3744LC

Mounting arrangementF1

Number of poles2

Overall length17.81 IN

Power factor89

Product familyGeneral Purpose

Product typeFARM DUTY

Pulley end bearing typeSealed Bearing

Pulley face codeStandard

Pulley shaft indicatorTapped & Key

Rodent screenIncluded

Service factor1.00

Shaft diameter1.125 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)3450 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNormally Closed Thermostat

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568122228

Nameplate

Catalog numberUCL1015

Specification number37M291W198

Horsepower (HP)10-15 AIR OVER

Voltage (V)230

Current (A)45-64

Speed (rpm)3450

Frame size215Z

Frequency (Hz)60

Phase1

Service factor1.00

Code letter (locked rotor kVA)G

NEMA design letterL

Insulation classF

NEMA nominal efficiency (%)84

Power factor89

Rating40C AMB-CONT

Drive end bearing6307

Opposite drive end bearing6206

EnclosureOPEN

Nameplate numberNP1279L

Performance

General characteristics· 230 V, 60 Hz, 15 hp

Line-to-line resistance at 25 °C (ohms)0.134 Ω / 0.774 Ohms B Ph

Start configurationDOL

Breakdown torque53 lb-ft

Pull-up torque37.9 lb-ft

Locked-rotor torque42.3 lb-ft

Starting current (A)394 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%
Power factor %	30	73	86	91	92	92	89
Efficiency %	0	68.6	79.6	82.6	82.8	80	76
Speed rpm	3595	3575	3555	3531	3498	3460	3400
Line amps A	18	24.8	36	48.7	64	81.7	105
Power W	1242	4164	7137	10247	13502	17278	21446
Torque lb-ft	0	5.63	11.25	16.88	22.5	28.13	33.75

Documents & CAD

For this product 4

Dimension DrawingDimension SheetPDF·143 KB·English

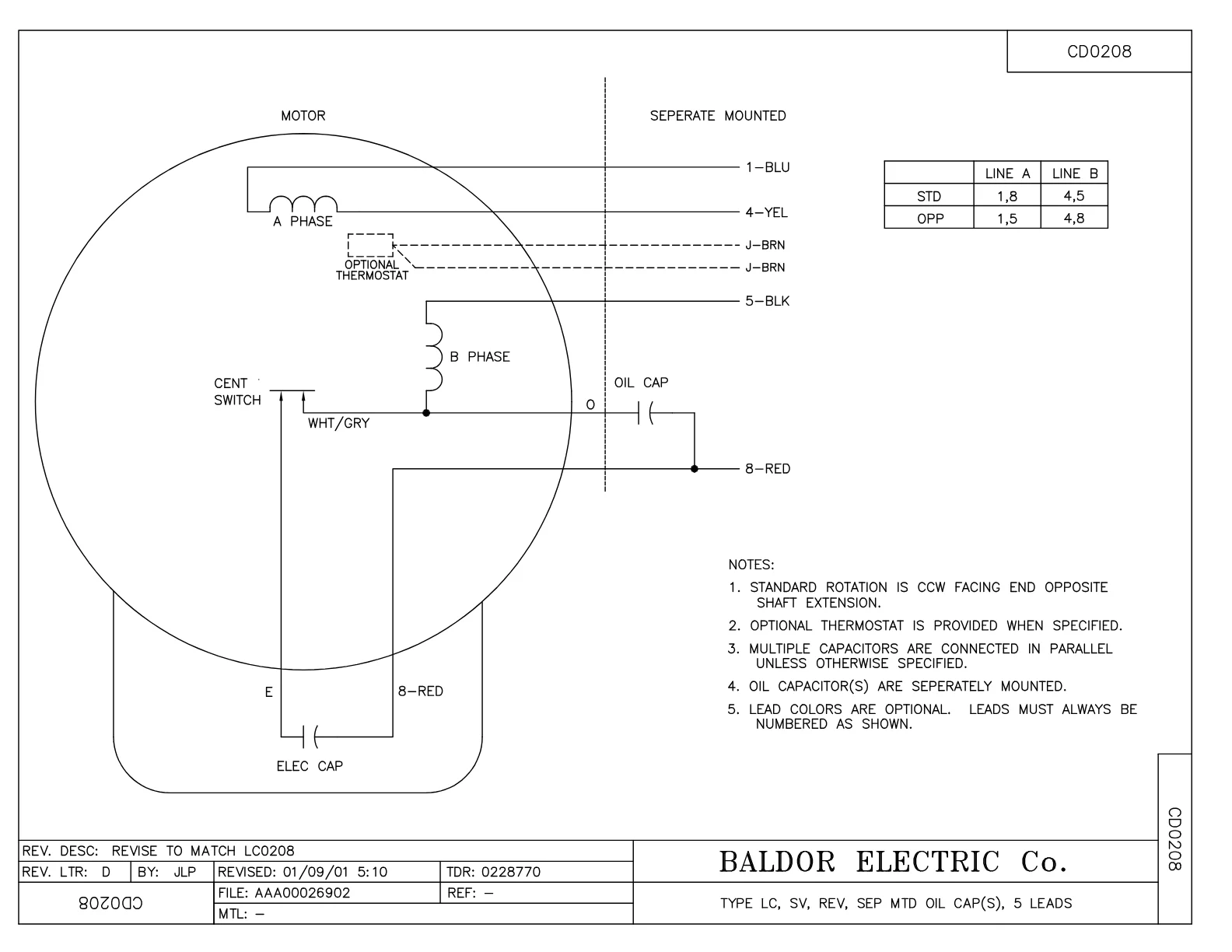

Wiring DiagramWiring DiagramPDF·42 KB·English

DatasheetDatasheetPDF·632 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 4

The genuine spare parts used for servicing and repairing the Baldor UCL1015 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
OC3040F18SP	7YL OIL CAP 40MFD/370V	1 pcs	30 motors
35CB4802A02SP	CAPACITOR COVER, STAMPED X	2 pcs	103 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
