How can I get a price quote for Baldor UCCE759?

You can request a fast quote for Baldor UCCE759 from Yılsa Engineering. Reference part number YLSXUOVNB1BYNZM. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Baldor UCCE759 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Baldor UCCE759 genuine and new?

Yes. This Baldor product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Baldor UCCE759?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

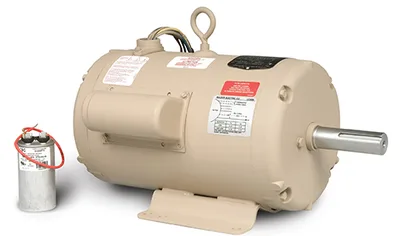

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Baldor UCCE759

Farm Duty - Universal Crop Dryer Motor - 9-2/10 hp / 7-1/2 hp, 3600 rpm, 1 ph, 230 V, 184TZ Frame, TEAO (Totally Enclosed Air Over) Enclosure, 60 Hz, Foot Mount, Continuous Duty

BaldorMFR # UCCE759SKU # YLSXUOVNB1BYNZM

Motor CategoryUniversal Crop Dryer Motor

Motor Phase1 ph

Motor Horsepower9-2/10 hp / 7-1/2 hp

Synchronous Rpm3600 rpm

Motor Supply Voltage230 V

Frame Size184TZ

Have questions?Chat on WhatsApp

About This Product

Farm Duty - Universal Crop Dryer Motor - 9-2/10 hp / 7-1/2 hp, 3600 rpm, 1 ph, 230 V, 184TZ Frame, TEAO (Totally Enclosed Air Over) Enclosure, 60 Hz, Foot Mount, Continuous Duty

Baldor UCCE759

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Motor CategoryUniversal Crop Dryer Motor

Motor Phase1 ph

Motor Horsepower9-2/10 hp / 7-1/2 hp

Synchronous Rpm3600 rpm

Motor Supply Voltage230 V

Frame Size184TZ

Enclosure TypeTEAO (Totally Enclosed Air Over)

Frequency Rating60 Hz

Duty Condition TypeContinuous Duty

Full Load Current29.00–35.00 A

Full Load Efficiency85.50 %

Amps @ Voltage29.0 A @ 230 V

Volts @ Frequency230 V @ 60 Hz

Shaft Diameter1.1250 in

Overall Length C Dimension16.88 in

Service Factor1.00

Frame MaterialSteel

Insulation ClassF

Standards MetCSA, UR

Harmonization Code8501.40.6040

Weight93 lbs

ApplicationsSpecifically engineered for use on vane axial fan crop dryers.

Additional DetailsTEAO design prevents entrance of rodents, insects and other foreign matter. High full load efficiency for reduced operating cost. No mechanical switch to wear. No noise and vibration from regeneration. Less sensitive to voltage variations. Soft start. Thermostats. Epoxy paint. 1.00 Service Factor. Class F insulation.

Mounting TypeFoot

Product TypeFarm Duty Motors
