How can I get a price quote for Baldor UCCE7510?

You can request a fast quote for Baldor UCCE7510 from Yılsa Engineering. Reference part number YLS093ZQZXK4EMH. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Baldor UCCE7510 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Baldor UCCE7510 genuine and new?

Yes. This Baldor product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Baldor UCCE7510?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

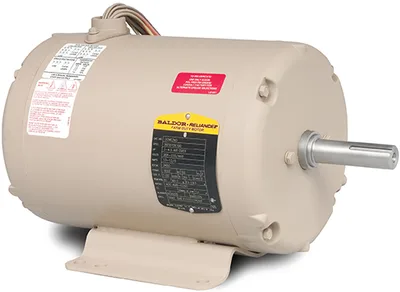

Baldor UCCE7510

Farm Duty - Universal Crop Dryer Motor - 10-1/2 hp / 7-1/2 hp, 3600 rpm, 1 ph, 230 V, 215Z Frame, TEAO (Totally Enclosed Air Over) Enclosure, 60 Hz, Foot Mount, Continuous Duty

BaldorMFR # UCCE7510SKU # YLS093ZQZXK4EMH

Motor CategoryUniversal Crop Dryer Motor

Motor Phase1 ph

Motor Horsepower10-1/2 hp / 7-1/2 hp

Synchronous Rpm3600 rpm

Motor Supply Voltage230 V

Frame Size215Z

Have questions?Chat on WhatsApp

About This Product

Farm Duty - Universal Crop Dryer Motor - 10-1/2 hp / 7-1/2 hp, 3600 rpm, 1 ph, 230 V, 215Z Frame, TEAO (Totally Enclosed Air Over) Enclosure, 60 Hz, Foot Mount, Continuous Duty

Baldor UCCE7510

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Motor CategoryUniversal Crop Dryer Motor

Motor Phase1 ph

Motor Horsepower10-1/2 hp / 7-1/2 hp

Synchronous Rpm3600 rpm

Motor Supply Voltage230 V

Frame Size215Z

Enclosure TypeTEAO (Totally Enclosed Air Over)

Frequency Rating60 Hz

Duty Condition TypeContinuous Duty

Thermal ProtectionThermostat

Full Load Current30.00 A

Full Load Efficiency84.00 %

Amps @ Voltage30.0 A @ 230 V

Volts @ Frequency230 V @ 60 Hz

Shaft Diameter1.1250 in

Overall Length C Dimension17.44 in

Warranty2 Year Warranty

Type Of BearingBall

Service Factor1.00

Frame MaterialSteel

Insulation ClassF

Standards MetCSA, UR

Harmonization Code8501.40.6040

Weight106 lbs

ApplicationsSpecifically engineered for use on vane axial fan crop dryers.

Additional DetailsTEAO design prevents entrance of rodents, insects and other foreign matter. High full load efficiency for reduced operating cost. No mechanical switch to wear. No noise and vibration from regeneration. Less sensitive to voltage variations. Soft start. Thermostats. Epoxy paint. 1.00 Service Factor. Class F insulation.

Mounting TypeFoot

Product TypeFarm Duty Motors
