Baldor UCC7100

Baldor UCC7100 is a general purpose farm duty AC electric motor rated 7.5 HP, 3450 rpm, single phase 230 V 60 Hz, with 184TZ frame and ODP (open drip-proof) enclosure.

BaldorMFR # UCC7100SKU # YLSVCNIB8PYGMHF

EnclosureODP

Frame184TZ

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeOil Capacitor Start and Run

Output at frequency7.500 HP @ 60 HZ · 10.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor UCC7100 is a general purpose farm duty AC electric motor rated 7.5 HP, 3450 rpm, single phase 230 V 60 Hz, with 184TZ frame and ODP (open drip-proof) enclosure.

Baldor UCC7100

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureODP

Frame184TZ

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeOil Capacitor Start and Run

Output at frequency7.500 HP @ 60 HZ · 10.000 HP @ 60 HZ

Phase1

Synchronous speed at frequency (rpm)3600 RPM @ 60 HZ

Voltage at frequency230.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsUR · CSA

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage28.000 A @ 230.0 V

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load85.5 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)28.0 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classF

Inverter codeNot Inverter

KVA codeD

Lifting lugsStandard Lifting Lugs

Locked bearing indicatorLocked Bearing

Motor lead exitPipe Or Pipe Adaptor

Motor lead terminationFlying Leads

Motor lead quantity/wire size2 @ 10 AWG, A PH

Motor type3640C

Mounting arrangementF1

Number of poles2

Overall length16.88 IN

Power factor95

Product familyGeneral Purpose

Product typeFARM DUTY

Pulley end bearing typeBall

Pulley face codeStandard

Pulley shaft indicatorTapped & Key

Rodent screenIncluded

Service factor1.00

Shaft diameter1.125 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)3450 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNormally Closed Thermostat

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568122372

Nameplate

Catalog numberUCC7100

Specification number36F548W881

Horsepower (HP)7.5-10 AIR OVER

Voltage (V)230

Current (A)28-39

Speed (rpm)3450

Frame size184TZ

Frequency (Hz)60

Phase1

Service factor1.00

Code letter (locked rotor kVA)D

NEMA design letter-

Insulation classF

NEMA nominal efficiency (%)85.5

Power factor95

Rating40C AMB-CONT

Drive end bearing6206

Opposite drive end bearing6205

EnclosureOPEN

Nameplate numberNP1279L

Performance

General characteristics· 230 V, 60 Hz, 10 hp

Line-to-line resistance at 25 °C (ohms)0.229 Ω / 0.877 Ohms B Ph

Start configurationDOL

Breakdown torque30 lb-ft

Pull-up torque2.3 lb-ft

Locked-rotor torque2.6 lb-ft

Starting current (A)187 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%
Power factor %	46	87	94	96	96	95	94
Efficiency %	0	72.4	82.3	84.4	83.9	81.7	78
Speed rpm	3595	3564	3529	3490	3445	3390	3319
Line amps A	7	12.9	21	30.2	40.4	52	66.1
Power W	741	2675	4659	6740	8923	11272	13871
Torque lb-ft	0	3.825	7.65	11.475	15.3	19.125	22.95

Documents & CAD

For this product 3

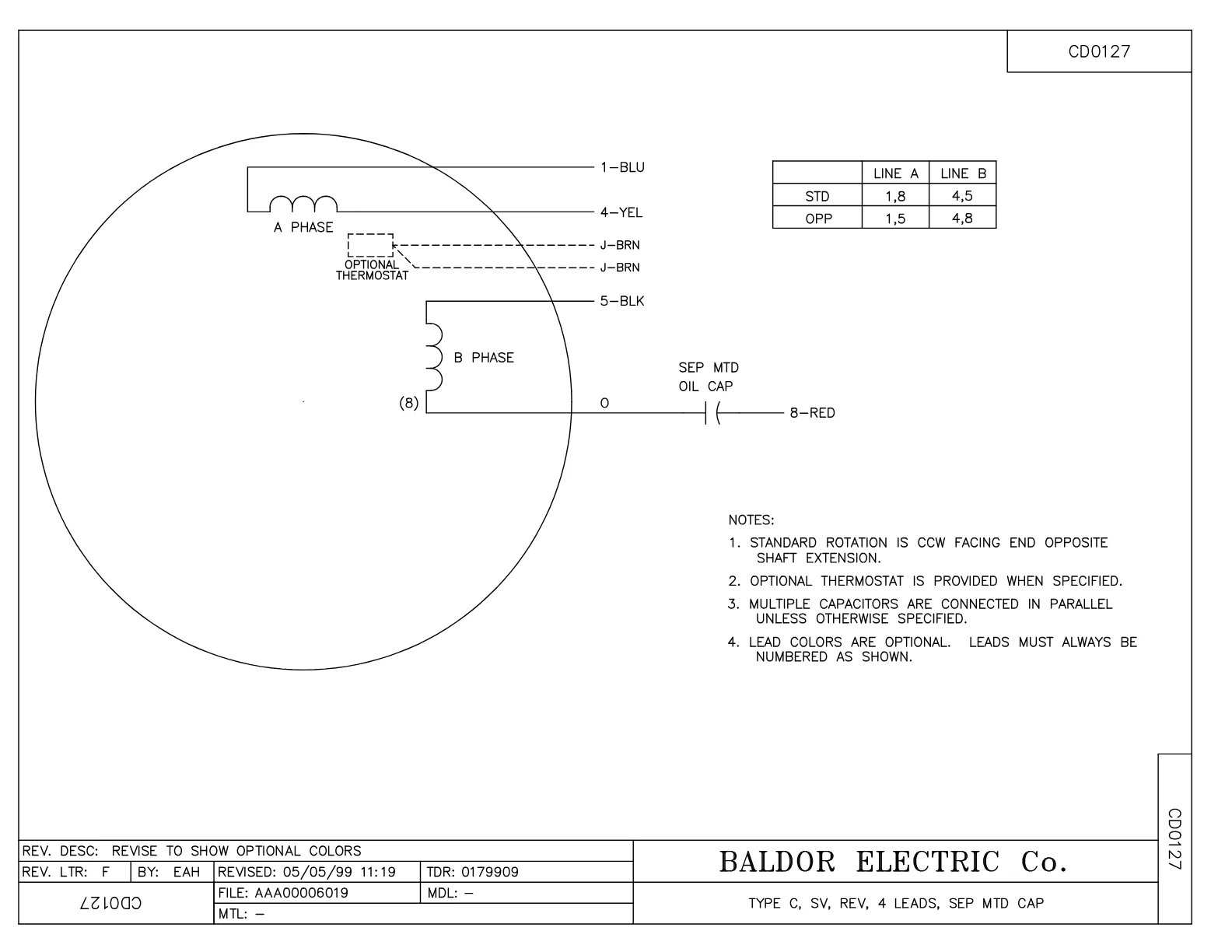

Wiring DiagramWiring DiagramPDF·35 KB·English

DatasheetDatasheetPDF·602 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

Series documents 1· shared by this product series

Dimension DrawingDimension SheetPDF·121 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 3

The genuine spare parts used for servicing and repairing the Baldor UCC7100 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
OC3035F09SP	CYL OIL CAP 35MFD/370V	2 pcs	18 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
