How can I get a price quote for Baldor SUM70106SM?

You can request a fast quote for Baldor SUM70106SM from Yılsa Engineering. Reference part number YLSJ2B3FDKTEOYX. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Baldor SUM70106SM in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Baldor SUM70106SM genuine and new?

Yes. This Baldor product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Baldor SUM70106SM?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

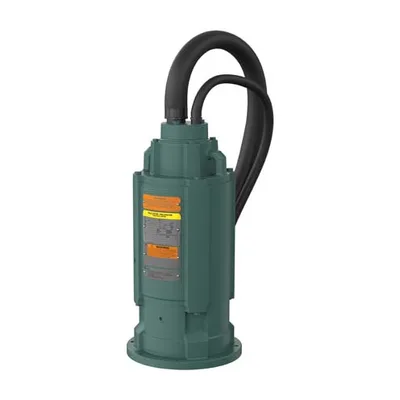

Baldor SUM70106SM

SUM70106SM

BaldorMFR # SUM70106SMSKU # YLSJ2B3FDKTEOYX

EnclosureTENV

Frame180TY

Frame materialCast Iron

Motor letter typeThree Phase

Phase3

Hazardous area class and groupCLI GP C,D

Have questions?Chat on WhatsApp

About This Product

Baldor SUM70106SM (SUM70106SM) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for Baldor SUM70106SM — price, stock availability and technical specifications.

Baldor SUM70106SM

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTENV

Frame180TY

Frame materialCast Iron

Motor letter typeThree Phase

Phase3

Hazardous area class and groupCLI GP C,D

Hazardous area divisionNot Applicable

Agency approvalsCCSA US · CULUS

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

Cable length25 FOOT

Design codeB

Drip coverNo Drip Cover

Duty ratingCONT

Heater indicatorNo Heater

Insulation classF

Inverter codeNot Inverter

IP ratingIP68

KVA codeN

Lifting lugsStandard Lifting Lugs

Motor typeM

Mounting arrangementV1

Number of poles6

Product familyPump - Centrifugal

Pulley end bearing typeBall

Pulley face codeStandard

Service factor1.15

Shaft diameter0.875 IN

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - windingNormally Closed Thermostat

Hazardous area temperature codeT3C

UPC781568582404

Product TypePump Motors

Nameplate

Catalog numberSUM70106SM

Specification numberS18-CWS0-0076

Horsepower (HP)1

Current (A)4/2

Voltage (V)230/460

NEMA design letterB

Frame size180TY

Speed (rpm)1150

Frequency (Hz)60

Ambient temperature (°C)40

Service factor1.15

Drive end bearing50BC02JPP30A

Phase3

DutyCONT

Insulation classF

Opposite drive end bearing25BC02JPG30A

TypeP

EnclosureTENV

Code letter (locked rotor kVA)N

Nameplate number000613007MN

Documents & CAD

For this product 3

Wiring DiagramWiring DiagramPDF·41 KB·English

DatasheetDatasheetPDF·656 KB·English

Performance CurvePerformance CurvePDF·112 KB·English

Series documents 3· shared by this product series

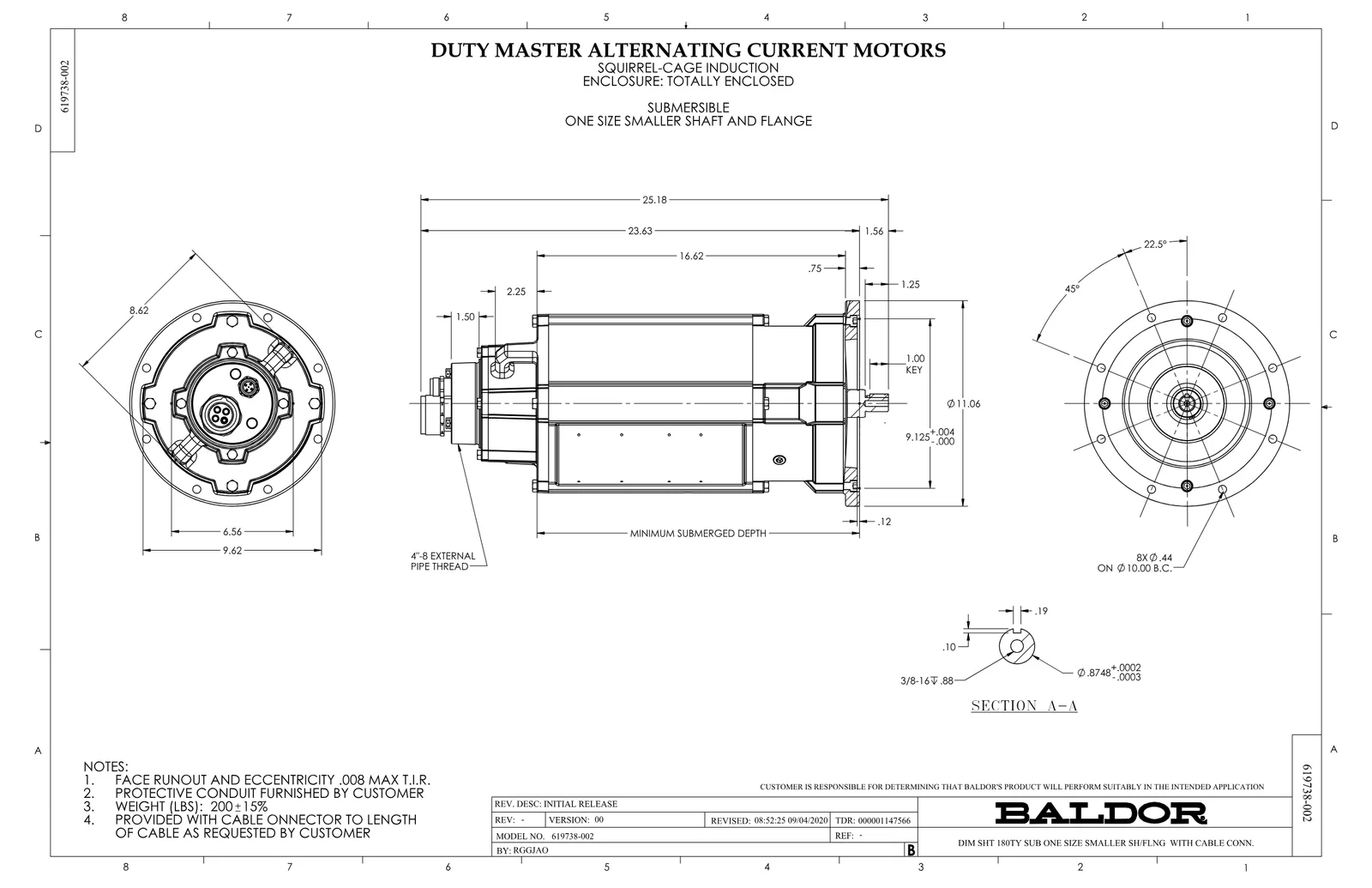

Dimension DrawingDimension SheetPDF·138 KB·English

Technical DrawingDrawingPDF·88 KB·English

Technical DrawingDrawingPDF·87 KB·English

Spare Parts 5

The genuine spare parts used for servicing and repairing the Baldor SUM70106SM motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
421900124FU	ORING	3 pcs	33 motors
413480001R	RESISTOR ASSEMBLY-BLANKET	1 pcs	62 motors
064262012B	SEAL	1 pcs	24 motors
064262012C	SEAL	1 pcs	44 motors
421900072FU	ORING	1 pcs	24 motors
