Baldor SUM20754

Baldor-Reliance SUM20754 is a 7.5 HP, 1770 rpm, 3-phase 60 Hz 230/460 V AC electric motor with 210TY frame, TENV enclosure and V1 mounting for centrifugal pump applications.

BaldorMFR # SUM20754SKU # YLS7RFJ7SHBSDZJ

EnclosureTENV

Frame210TY

Frame materialCast Iron

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency7.500 @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor-Reliance SUM20754 is a 7.5 HP, 1770 rpm, 3-phase 60 Hz 230/460 V AC electric motor with 210TY frame, TENV enclosure and V1 mounting for centrifugal pump applications.

Baldor SUM20754

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTENV

Frame210TY

Frame materialCast Iron

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency7.500 @ 60 HZ

Phase3

Voltage at frequency460 V @ 60 HZ · 230 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsCCSA US

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

Cable lengthNO CABLE

Current at voltage10.4 A @ 460 V · 20.8 A @ 230 V

Design codeB

Drip coverNo Drip Cover

Duty ratingCONT

Heater indicatorNo Heater

Insulation classF

Inverter codeNot Inverter

IP ratingIP68

KVA codeJ

Lifting lugsStandard Lifting Lugs

Motor typeM

Mounting arrangementV1

Number of poles4

Overall length29.04 IN

Product familyPump - Centrifugal

Pulley end bearing typeBall

Pulley face codeStandard

Service factor1.15

Shaft diameter1.437 IN

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - windingNormally Closed Thermostat

UPC781568790687

Nameplate

Nameplate number000692000MB

Documents & CAD

For this product 3

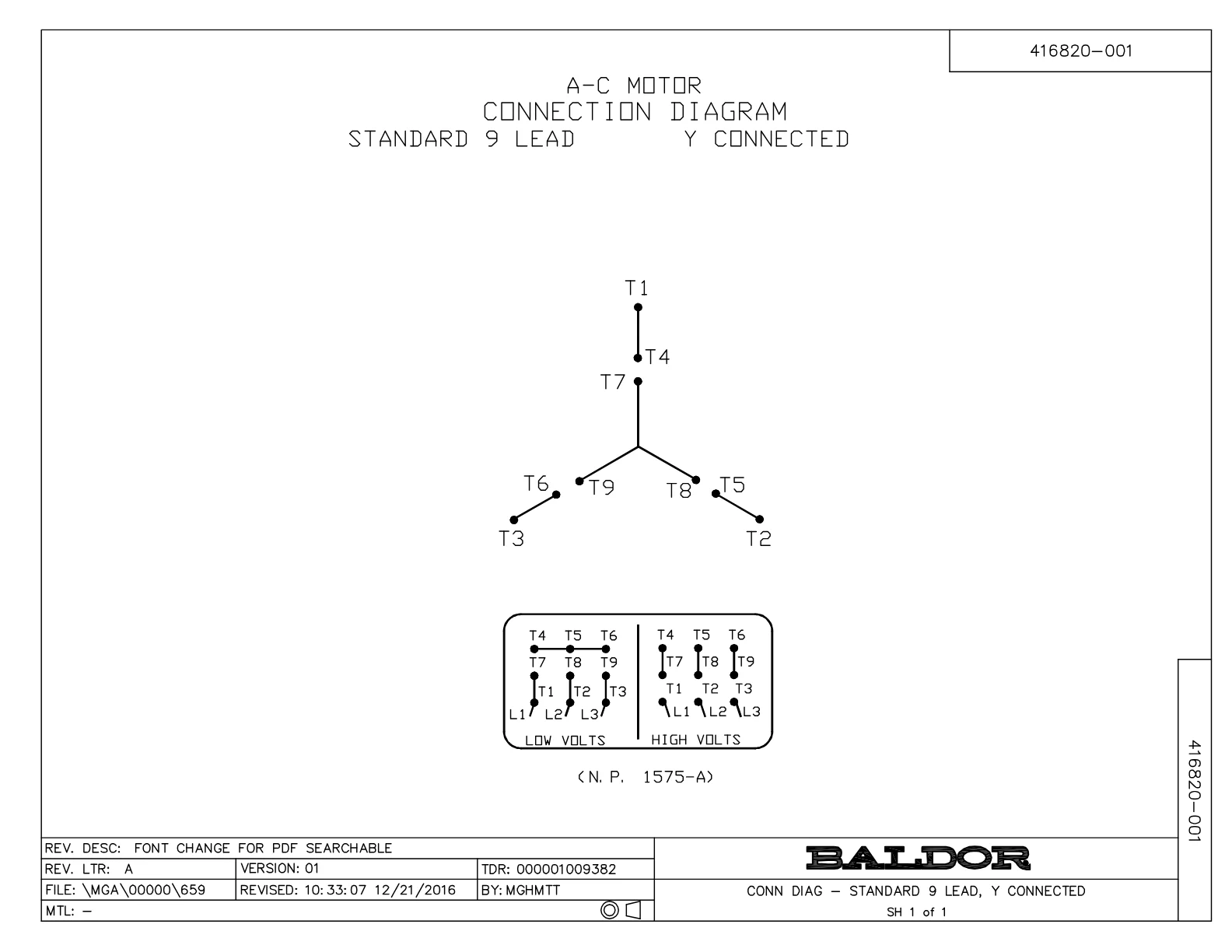

Wiring DiagramWiring DiagramPDF·32 KB·English

Wiring DiagramWiring DiagramPDF·41 KB·English

DatasheetDatasheetPDF·637 KB·English

Series documents 4· shared by this product series

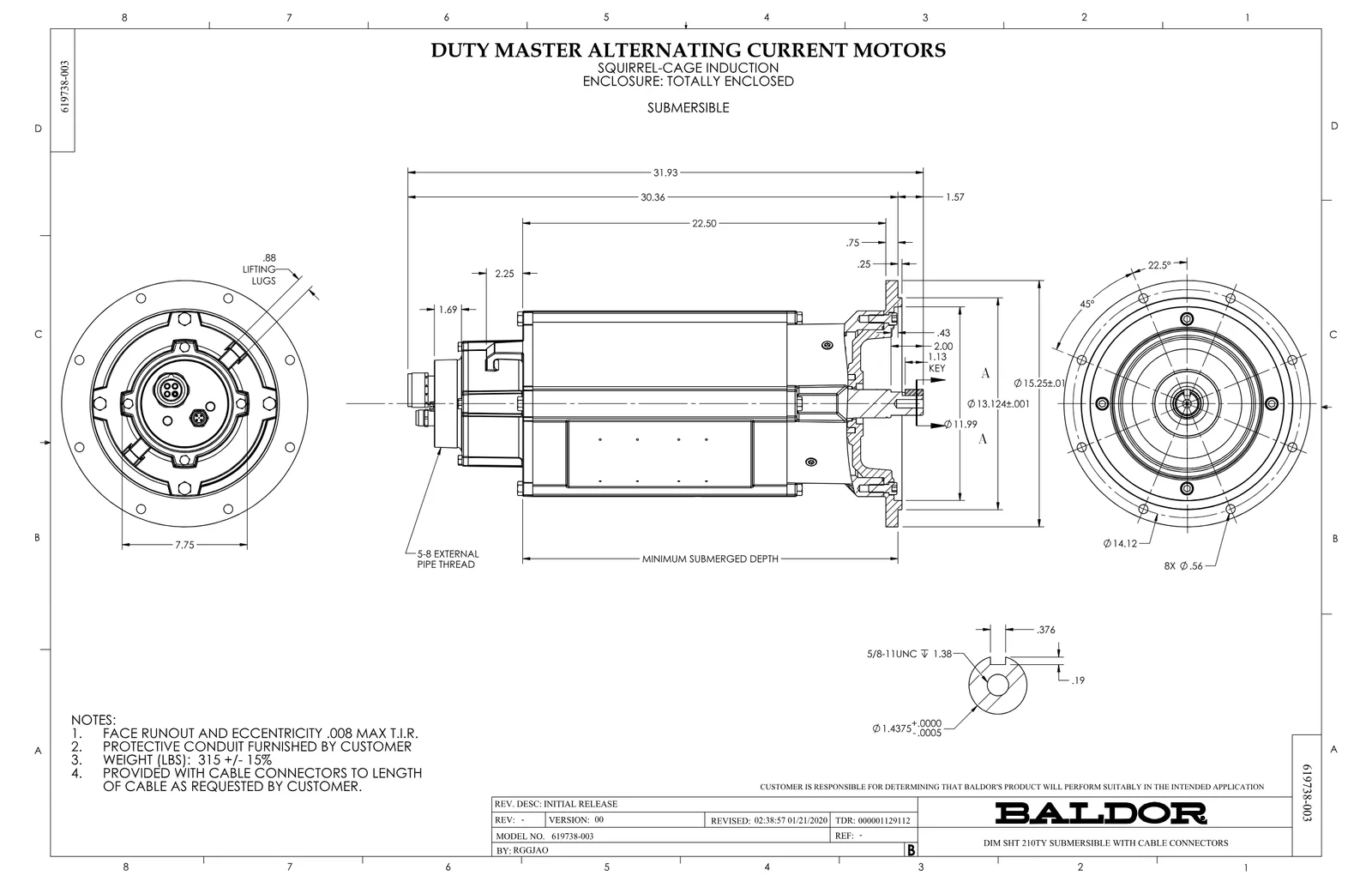

Dimension DrawingDimension SheetPDF·142 KB·English

Technical DrawingDrawingPDF·88 KB·English

Technical DrawingDrawingPDF·87 KB·English

Performance CurvePerformance CurvePDF·56 KB·English

Spare Parts 6

The genuine spare parts used for servicing and repairing the Baldor SUM20754 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
421900144FU	406673000BF	3 pcs	20 motors
413480001R	RESISTOR ASSEMBLY-BLANKET	1 pcs	62 motors
088208001AA	MTG PLATE EX210Y SUBMERSIBLE 088208001WB	1 pcs	16 motors
064262012C	SEAL	1 pcs	44 motors
064262012D	SEAL - Mech Ceramic Seal	1 pcs	29 motors
421900092FU	ORING	1 pcs	29 motors
