How can I get a price quote for Baldor SPM4410TR-4?

You can request a fast quote for Baldor SPM4410TR-4 from Yılsa Engineering. Reference part number YLSKK00HFFOLOF7. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Baldor SPM4410TR-4 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Baldor SPM4410TR-4 genuine and new?

Yes. This Baldor product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Baldor SPM4410TR-4?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Baldor SPM4410TR-4

Super Premium SP4 Severe Duty Motor - 125 hp, 1800 rpm, 3 ph, 460 V, 444T Frame, TEFC Enclosure, 60 Hz, 1790 rpm Base, Continuous Duty

BaldorMFR # SPM4410TR-4SKU # YLSKK00HFFOLOF7

EnclosureTEFC

Frame444T

Frame materialCast Iron

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency125.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Super Premium SP4 Severe Duty Motor - 125 hp, 1800 rpm, 3 ph, 460 V, 444T Frame, TEFC Enclosure, 60 Hz, 1790 rpm Base, Continuous Duty

Baldor SPM4410TR-4

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

Frame444T

Frame materialCast Iron

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency125.000 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency460.0 V @ 60 HZ

Hazardous area class and groupCLI GP A,B,C,D; CLII GP F,G

Hazardous area divisionDivision II

Agency approvalsNEMA_PREMIUM · CURUSEEV · CCSAUSEEV · CCSA US

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Base indicatorRigid

Bearing grease typeMobil SHC 220 (Athens Only)

Current at voltage142.000 A @ 460.0 V

Design codeA

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load96.2 %

Feedback deviceNO FEEDBACK

High voltage full load current (A)142.0 a

Heater indicatorNo Heater

Insulation classF

Inverter codeInverter Duty

KVA codeH

Lifting lugsStandard Lifting Lugs

Maximum speed (rpm)2700 rpm

Motor lead quantity/wire size3 @ 2 AWG

Motor typeA4480M

Mounting arrangementF1

Number of poles4

Overall length44.97 IN

Power factor86

Product familyGeneral Industrial

Pulley end bearing typeRoller

Pulley face codeStandard

Service factor1.15

Shaft diameter3.375 IN

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorShaft Slinger

Speed (rpm)1790 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

UPC781568589885

Motor Supply Voltage460 V

Base RPM1790 rpm

Drive End Bearing Size110RU02M30X

Opposite Drive End Bearing Size90BC03J30X

Mounting TypeFoot Mount

IP RatingNONE

Weight1950 lbs.

Product TypeSevere Duty Motors

Nameplate

Nameplate numberNP2496L

Documents & CAD

For this product 4

Dimension DrawingDimension SheetPDF·889 KB·English

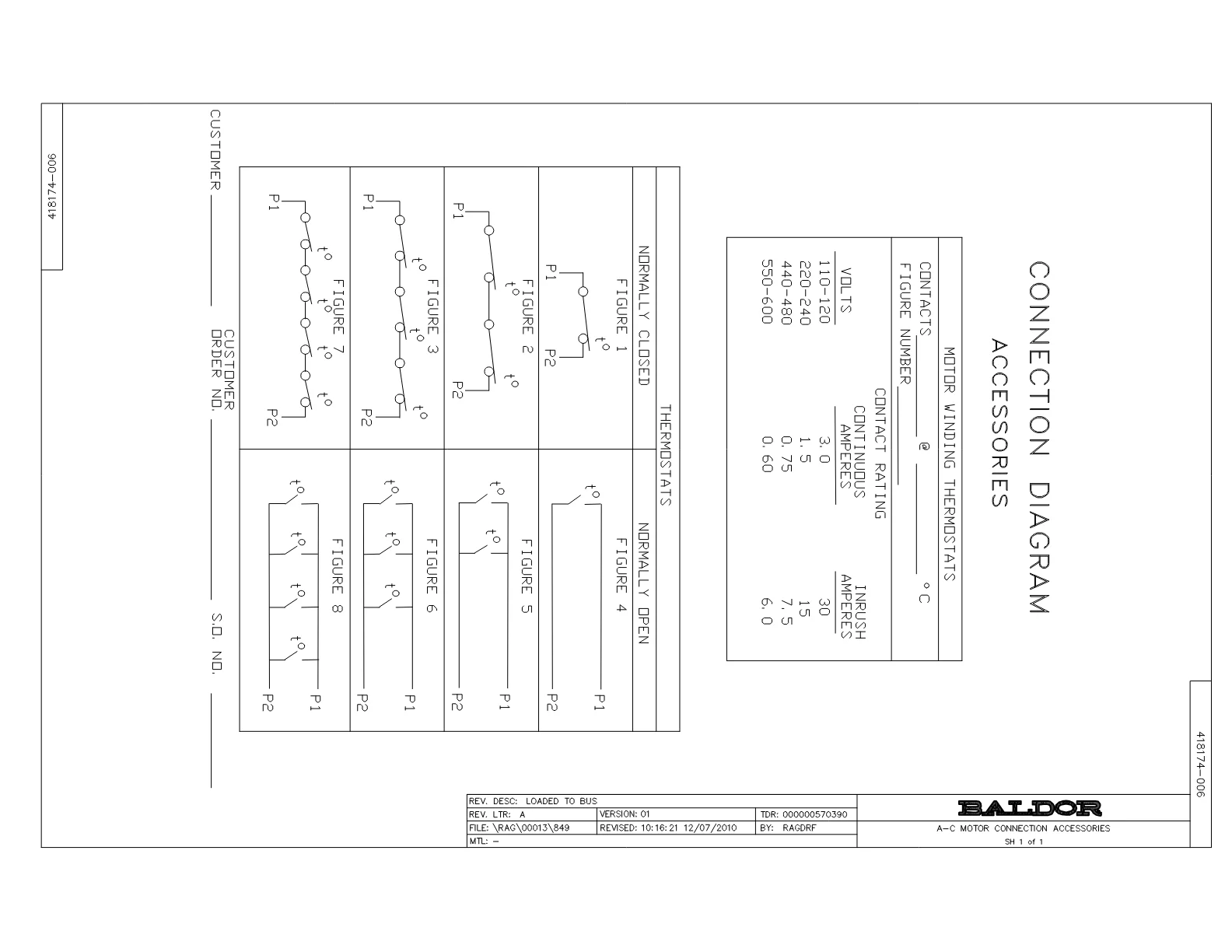

Wiring DiagramWiring DiagramPDF·35 KB·English

Wiring DiagramWiring DiagramPDF·39 KB·English

DatasheetDatasheetPDF·1.4 MB·English

Series documents 3· shared by this product series

Technical DrawingDrawingPDF·862 KB·English

Technical DrawingDrawingPDF·87 KB·English

Performance CurvePerformance CurvePDF·82 KB·English

Spare Parts 5

The genuine spare parts used for servicing and repairing the Baldor SPM4410TR-4 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
000692000VD	LABEL WARNING	1 pcs	544 motors
078548001R	FAN KB 234/150 (84) 400	1 pcs	123 motors
034017014AB	LCKW 3/8 STD. PLATED	4 pcs	376 motors
418151014H	RETAIN RING	1 pcs	60 motors
MG1050Y01	CELEROL BALDOR GOLD 5 GALLON BUCKET	0.44 gal	1,997 motors
