Baldor SPM4107TS

Super Premium SP4 Severe Duty Motor - 25 hp, 3600 rpm, 3 ph, 230/460 V, 284TS Frame, TEFC Enclosure, 60 Hz, 3545 rpm Base, Continuous Duty

BaldorMFR # SPM4107TSSKU # YLSA8AZ1SWTFDJT

EnclosureTEFC

Frame284TS

Frame materialCast Iron

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency25.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Super Premium SP4 Severe Duty Motor - 25 hp, 3600 rpm, 3 ph, 230/460 V, 284TS Frame, TEFC Enclosure, 60 Hz, 3545 rpm Base, Continuous Duty

Baldor SPM4107TS

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

Frame284TS

Frame materialCast Iron

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency25.000 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)3600 RPM @ 60 HZ

Voltage at frequency230.0 V @ 60 HZ · 460.0 V @ 60 HZ

Hazardous area class and groupCLI GP A,B,C,D CLII GP F,G

Hazardous area divisionDivision II

Agency approvalsNEMA_PREMIUM · WEEE · CURUSEEV · CSA

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage28.000 A @ 460.0 V · 56.000 A @ 230.0 V

Design codeA

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load93.0 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)28.0 a

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classF

Inverter codeInverter Duty

KVA codeJ

Lifting lugsStandard Lifting Lugs

Locked bearing indicatorLocked Bearing

Maximum speed (rpm)4800 rpm

Motor lead terminationFlying Leads

Motor lead quantity/wire size9 @ 10 AWG

Motor type1048M

Mounting arrangementF1

Number of poles2

Overall length26.75 IN

Power factor88

Product familyChemical Processing (Not DC)

Pulley end bearing typeBall

Pulley face codeStandard

Pulley shaft indicatorStandard

Rodent screenNone

Service factor1.15

Shaft diameter1.875 IN

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)3545 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

Hazardous area temperature codeT3B

UPC781568601440

Motor Supply Voltage230/460 V

Base RPM3545 rpm

Drive End Bearing Size6311

Opposite Drive End Bearing Size6311

Mounting TypeFoot Mount

IP RatingNONE

Weight396 lbs.

Product TypeSevere Duty Motors

Nameplate

Catalog numberSPM4107TS

CC number010A

Weight396

Specification number10T011Z894

Frame size284TS

EnclosureTEFC

Ingress protection (IP)55

Rating40C AMB-CONT

NEMA nominal efficiency (%)93

Horsepower (HP)25

Voltage (V)230/460

Current (A)56/28

Speed (rpm)3545

Frequency (Hz)60

Phase3

Insulation classF

Code letter (locked rotor kVA)J

NEMA design letterA

Power factor88

Service factor1.15

Service factor current (A)64/32

Drive end bearing6311

Opposite drive end bearing6311

LubricationPOLYREX EM

SL HZ1

Constant horsepower60

TO80

Inertia (WK²)2.07

Maximum speed (rpm)4800

Constant torque6

TO60

Magnetizing current (A)19/9.5

Variable torque3

TO60

Temperature codeT3C

Class I inverter temperature codeT3A

Temperature code180

Temperature code160

Class II inverter temperature codeT3B

Temperature code165

Temperature codeT3B

Temperature code165

Nameplate numberNP4439B05C23L

Performance

General characteristics· 460 V, 60 Hz, 25 hp

Line-to-line resistance at 25 °C (ohms)0.214 Ω

Temperature rise at rated load (°C)57° C

Temperature rise at service factor load (°C)69° C

Start configurationDOL

Breakdown torque178 lb-ft

Pull-up torque69.5 lb-ft

Locked-rotor torque88.2 lb-ft

Starting current (A)244 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	9	53	77	85	88	90	91	89
Efficiency %	0	85.1	91.5	92.7	93.1	92.8	92.1	92.9
Speed rpm	3599	3586	3572	3560	3544	3530	3514	3536
Line amps A	9.39	11.73	16.2	21.57	28.06	34.58	41.48	32
Power W	652	4930	9880	14693	19750	24764	29988	22758
Torque lb-ft	0	8.24	17.82	26.96	36.52	45.86	55.37	42.1

Documents & CAD

For this product 3

Wiring DiagramWiring DiagramPDF·37 KB·English

DatasheetDatasheetPDF·696 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

Series documents 2· shared by this product series

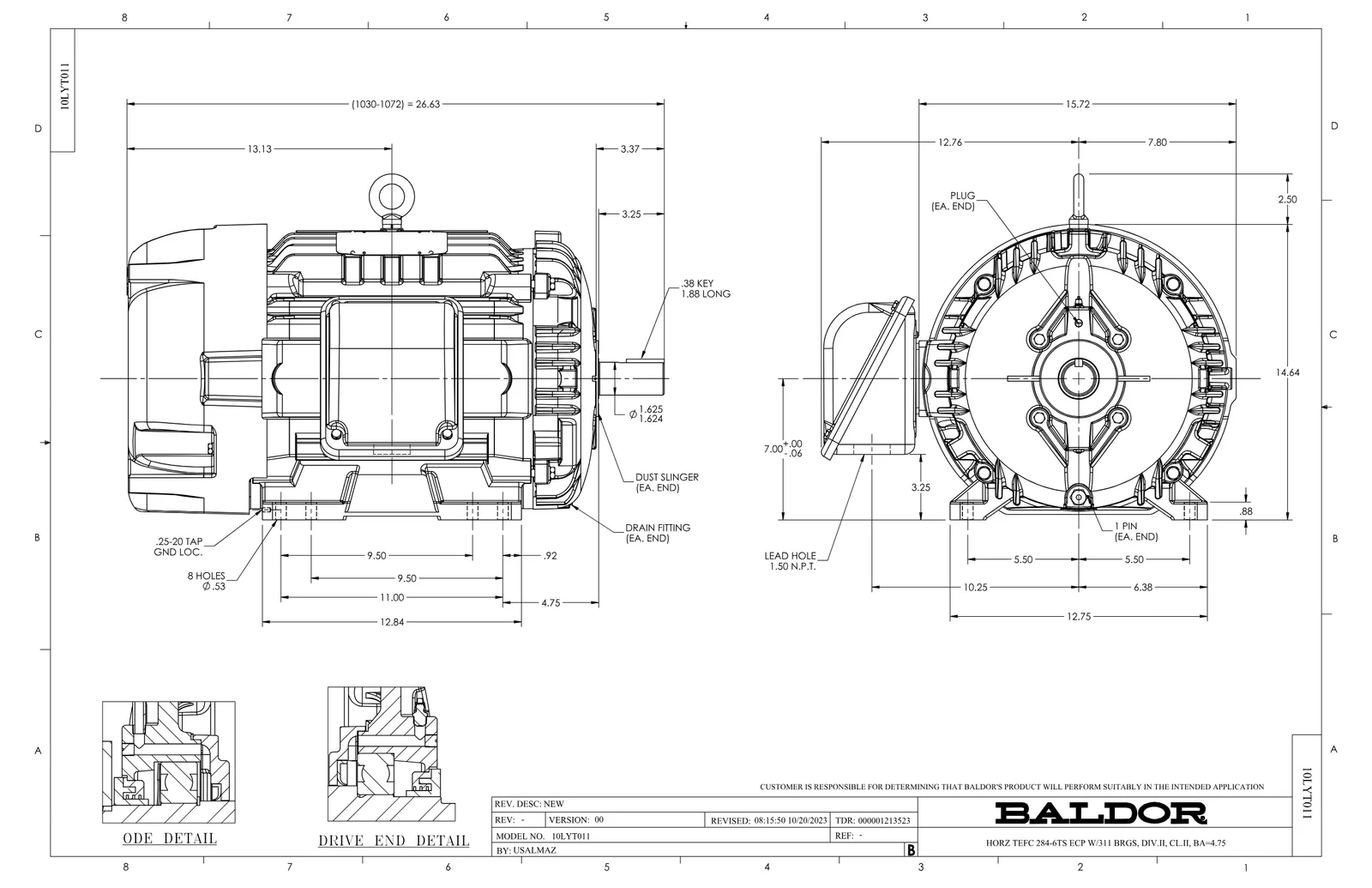

Dimension DrawingDimension SheetPDF·210 KB·English

Technical DrawingDrawingPDF·87 KB·English

Spare Parts 6

The genuine spare parts used for servicing and repairing the Baldor SPM4107TS motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
37FN3002C03	EXFN, PLASTIC, 6.00 OD, 1.690 ID	1 pcs	35 motors
09GS1010	GASKET, DWG, LEADWIRE SEPERATOR	1 pcs	343 motors
HW1001A31	LOCKWASHER 5/16, ZINC PLT.591 OD, .319 I	7 pcs	1,025 motors
14GS1003	GASKET CONDUIT BOX LID, NEOP	1 pcs	223 motors
MG1050Y01	CELEROL BALDOR GOLD 5 GALLON BUCKET	0.07 gal	1,997 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
