Baldor SPM31115-G

Baldor-Reliance SPM31115-G is a 1 HP, 3450 rpm, 3-phase 460/230 V, 60 Hz general purpose three-phase induction motor with a 56H frame and open (OPEN) enclosure.

BaldorMFR # SPM31115-GSKU # YLSLYO02MMGDAAJ

EnclosureOPEN

Frame56H

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency1.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor-Reliance SPM31115-G is a 1 HP, 3450 rpm, 3-phase 460/230 V, 60 Hz general purpose three-phase induction motor with a 56H frame and open (OPEN) enclosure.

Baldor SPM31115-G

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureOPEN

Frame56H

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency1.000 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)3600 RPM @ 60 HZ

Voltage at frequency460.0 V @ 60 HZ · 230.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsCURUSEEV · NEMA PREMIUM · WEEE

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage1.300 A @ 460.0 V · 2.600 A @ 230.0 V

Design codeB

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load82.5 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)1.3 a

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classH

Inverter codeInverter Duty

KVA codeL

Lifting lugsNo Lifting Lugs

Locked bearing indicatorLocked Bearing

Maximum speed (rpm)5400 rpm

Motor lead terminationFlying Leads

Motor lead quantity/wire size9 @ 18 AWG

Motor type3516M

Mounting arrangementF1

Number of poles2

Overall length11.75 IN

Power factor88

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeStandard

Pulley shaft indicatorStandard

Rodent screenNone

RoHS statusROHS COMPLIANT

Service factor1.25

Shaft diameter0.625 IN

Shaft ground indicatorShaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)3450 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568664278

Nameplate

Catalog numberSPM31115-G

Weight35

Specification number35E6885R933

EnclosureOPEN

CC number010A

Ingress protection (IP)23

Horsepower (HP)1

Magnetizing current (A)1.3/.65

Voltage (V)230/460

NEMA nominal efficiency (%)82.5

Current (A)2.6/1.3

Power factor88

Rating40C AMB-CONT

Speed (rpm)3450

Maximum speed (rpm)5400

Frame size56H

Frequency (Hz)60

Code letter (locked rotor kVA)L

Insulation classH

Service factor1.25

Service factor current (A)3.2/1.6

Phase3

NEMA design letterB

Drive end bearing6205

Opposite drive end bearing6203

LubricationPOLYREX EM

Constant horsepower60

TO90

Inertia (WK²)0.05

Constant torque6

TO60

SL HZ2.5

Variable torque3

TO60

Nameplate numberNP4423A01A01L

Performance

General characteristics· 460 V, 60 Hz, 1 hp

Line-to-line resistance at 25 °C (ohms)15.2 Ω

Temperature rise at rated load (°C)21° C

Temperature rise at service factor load (°C)27° C

Start configurationDOL

Breakdown torque7.5 lb-ft

Pull-up torque4.2 lb-ft

Locked-rotor torque5.6 lb-ft

Starting current (A)12.4 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	14	48	69	81	86	88	90	88
Efficiency %	0	71.5	80.5	83.4	83.6	82.9	81.3	82.9
Speed rpm	3598	3560	3529	3494	3462	3423	3378	3423
Line amps A	0.63	0.7	0.85	1.04	1.28	1.58	1.86	1.58
Power W	70	265	467	672	882	1102	1328	1102
Torque lb-ft	0	0.38	0.75	1.13	1.5	1.88	2.25	1.88

Documents & CAD

For this product 4

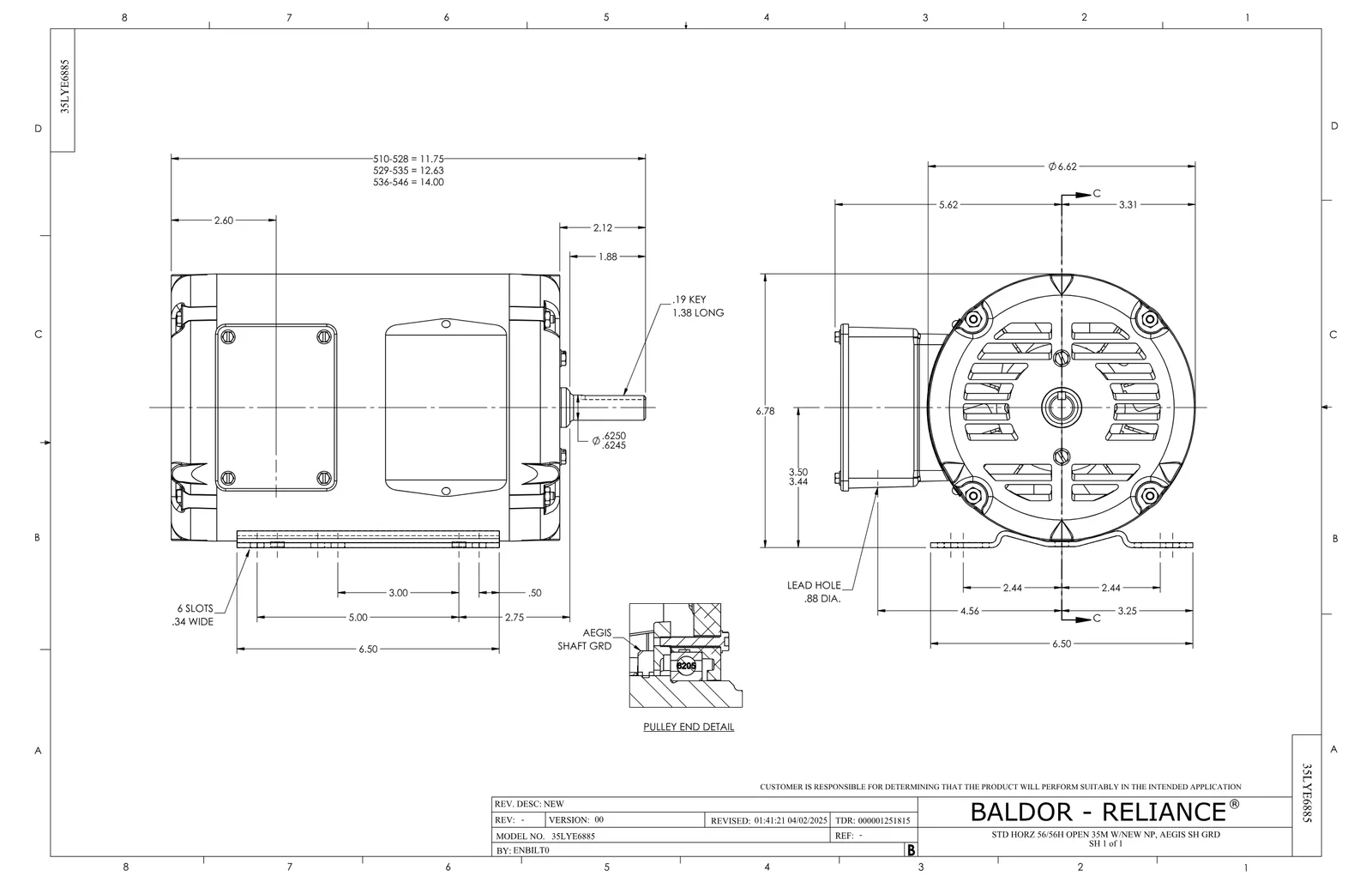

Dimension DrawingDimension SheetPDF·120 KB·English

Wiring DiagramWiring DiagramPDF·41 KB·English

DatasheetDatasheetPDF·604 KB·English

Performance CurvePerformance CurvePDF·59 KB·English

CAD Files 5

3D Model

2D Drawing

Spare Parts 3

The genuine spare parts used for servicing and repairing the Baldor SPM31115-G motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
MG1050Y01	CELEROL BALDOR GOLD 5 GALLON BUCKET	0.017 gal	1,997 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
