Baldor RM3007A

Baldor-Reliance RM3007A is a .33 HP, 1725 rpm, 3-phase, 208/230/460 V at 60 Hz, 48 frame, 3413M, ODP (open drip-proof) enclosure, F1 mounting general purpose three-phase AC electric motor.

BaldorMFR # RM3007ASKU # YLSYBIPALVFD6E

EnclosureODP

Frame48

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency.330 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor-Reliance RM3007A is a .33 HP, 1725 rpm, 3-phase, 208/230/460 V at 60 Hz, 48 frame, 3413M, ODP (open drip-proof) enclosure, F1 mounting general purpose three-phase AC electric motor.

Baldor RM3007A

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureODP

Frame48

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency.330 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency208.0 V @ 60 HZ · 230.0 V @ 60 HZ · 460.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsCURUS

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorResilient

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage.800 A @ 460.0 V · 1.600 A @ 230.0 V · 1.800 A @ 208.0 V · 2.000 A @ 208.0 V

Design codeB

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load68.0 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)0.8 a

Front face codeResilient Mount

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classB

Inverter codeNot Inverter

KVA codeL

Lifting lugsNo Lifting Lugs

Locked bearing indicatorNo Locked Bearing

Motor lead exitTerminal Panel Or Lead Hole

Motor lead terminationFlying Leads

Motor lead quantity/wire size12 @ 18 AWG

Motor type3413M

Mounting arrangementF1

Number of poles4

Overall length10.34 IN

Power factor57

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeResilient Mount

Pulley shaft indicatorStandard

Rodent screenNone

RoHS statusROHS COMPLIANT

Service factor1.25

Shaft diameter0.500 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)1725 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1Automatic Thermal Overload

Winding thermal 1 locationSB

Winding thermal 2None

UPC781568719046

Nameplate

Catalog numberRM3007A

Specification number34K015S872G2

Horsepower (HP).33

Voltage (V)208-230/460

Current (A)1.8-1.6/.8

Speed (rpm)1725

Frame size48

Frequency (Hz)60

Phase3

Service factor1.25

Code letter (locked rotor kVA)L

NEMA design letterB

Insulation classB

NEMA nominal efficiency (%)68

Power factor57

Rating40C AMB-CONT

Drive end bearing6203

Opposite drive end bearing6203

EnclosureOPEN

Nameplate numberNP1257L

Performance

General characteristics· 460 V, 60 Hz, 0.33 hp

Line-to-line resistance at 25 °C (ohms)49.1 Ω

Start configurationDOL

Breakdown torque4.7 lb-ft

Pull-up torque3.35 lb-ft

Locked-rotor torque3.75 lb-ft

Starting current (A)4.4 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	15	26	37	47	57	67	68	67
Efficiency %	0	44.1	59	65.1	68	68.2	67	67.6
Speed rpm	1798	1788	1770	1760	1745	1730	1710	1722
Line amps A	0.7	0.7	0.73	0.77	0.8	0.85	1	0.91
Power W	84	144	213	288	365	452	544	489
Torque lb-ft	0	0.25	0.5	0.75	1	1.25	1.5	1.35

Documents & CAD

For this product 3

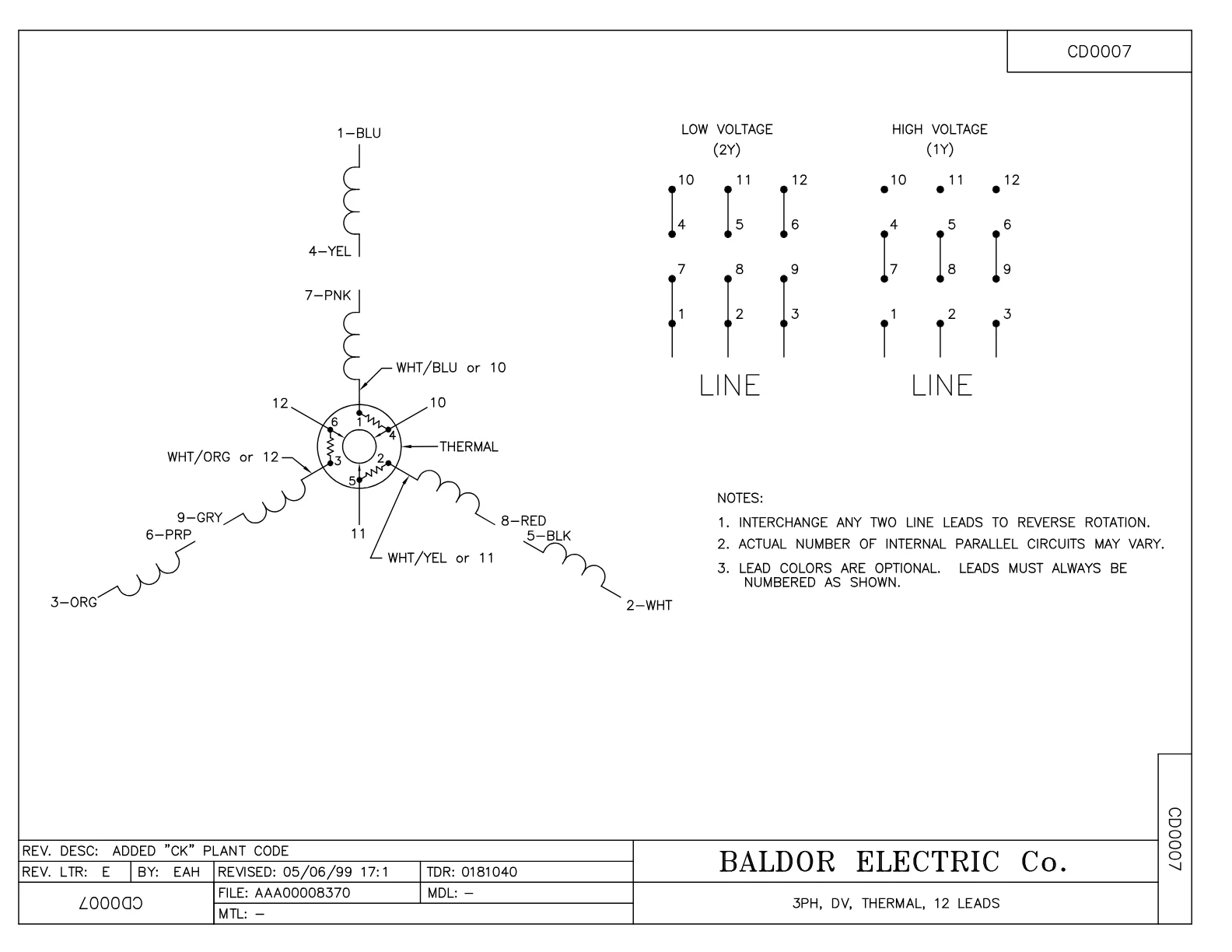

Wiring DiagramWiring DiagramPDF·39 KB·English

DatasheetDatasheetPDF·587 KB·English

Performance CurvePerformance CurvePDF·59 KB·English

Series documents 1· shared by this product series

Dimension DrawingDimension SheetPDF·104 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 3

The genuine spare parts used for servicing and repairing the Baldor RM3007A motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
34CB4501SP	TERMINAL BOX LID, STAMPED X (PLATED)	1 pcs	95 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
LB1118	LABEL,WARNING (ROLL LABEL)	1 pcs	223 motors
