Baldor RL1324A

Blower/Fan Motor - 3/4 hp, 1800 rpm, 1 ph, 115/230 V, 56 Frame, ODP (Open Drip-Proof) Enclosure, 60 Hz, 1725 rpm Base, Resilient Base Mount, Continuous Duty

BaldorMFR # RL1324ASKU # YLSM04U8066WODT

EnclosureOPEN

Frame56

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Induction Run

Output at frequency.750 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Blower/Fan Motor - 3/4 hp, 1800 rpm, 1 ph, 115/230 V, 56 Frame, ODP (Open Drip-Proof) Enclosure, 60 Hz, 1725 rpm Base, Resilient Base Mount, Continuous Duty

Baldor RL1324A

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureOPEN

Frame56

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Induction Run

Output at frequency.750 HP @ 60 HZ

Phase1

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency115.0 V @ 60 HZ · 230.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsCURUS · C UR US

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorResilient

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage10.800 A @ 115.0 V · 5.400 A @ 230.0 V

Design codeN

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load71.0 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)5.4 a

Front face codeResilient Mount

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classB

Inverter codeNot Inverter

KVA codeG

Lifting lugsNo Lifting Lugs

Locked bearing indicatorNo Locked Bearing

Motor lead exitTerminal Panel

Motor lead terminationFlying Leads

Motor lead quantity/wire size6 @ 18 AWG

Motor type3424L

Mounting arrangementF1

Number of poles4

Overall length12.47 IN

Power factor71

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeResilient Mount

Pulley shaft indicatorStandard

Rodent screenNone

Service factor1.00

Shaft diameter0.625 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible: Connected Standard

Shaft slinger indicatorNo Slinger

Speed (rpm)1725 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1Automatic Thermal Overload

Winding thermal 1 locationSB

Winding thermal 2None

UPC781568120712

Motor CategoryBlower/Fan Motor

Motor Supply Voltage115/230 V

Base RPM1725 rpm

Type Of BearingBall

Warranty2 Year Warranty

IP Rating22/23

Weight31 lbs

Harmonization Code8501.40.4040

ApplicationsVentilators, summer cooling fans, band saws, drill presses, farm equipment, etc.

Additional DetailsHeavy-gauge steel base, ball bearings. Dynamically balanced rotors for reduced vibration and quiet operation.

Mounting TypeResilient Base

Product TypeAir Handling (HVAC) Motors

Nameplate

Catalog numberRL1324A

Specification number34K18W168

Horsepower (HP).75

Voltage (V)115/230

Current (A)10.8/5.4

Speed (rpm)1725

Frame size56

Frequency (Hz)60

Phase1

Service factor1.00

Code letter (locked rotor kVA)G

NEMA design letterN

Insulation classB

NEMA nominal efficiency (%)71

Power factor71

Rating40C AMB-CONT

Drive end bearing6203

Opposite drive end bearing6203

EnclosureOPEN

Nameplate numberNP1257L

Performance

General characteristics· 230 V, 60 Hz, 0.75 hp

Line-to-line resistance at 25 °C (ohms)2.99 Ω / 1.58 Ohms B Ph

Temperature rise at rated load (°C)78° C

Start configurationDOL

Breakdown torque4.7 lb-ft

Pull-up torque3 lb-ft

Locked-rotor torque3.8 lb-ft

Starting current (A)19.5 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%
Power factor %	20	37	51	64	74	79	83
Efficiency %	0	45.1	57.2	62.1	63.3	62.7	59.9
Speed rpm	1795	1778	1764	1745	1724	1701	1669
Line amps A	3.9	4	4.3	4.6	5.2	6	6.9
Power W	179	316	495	677	874	1089	1342
Torque lb-ft	0	0.565	1.13	1.695	2.26	2.825	3.39

Documents & CAD

For this product 3

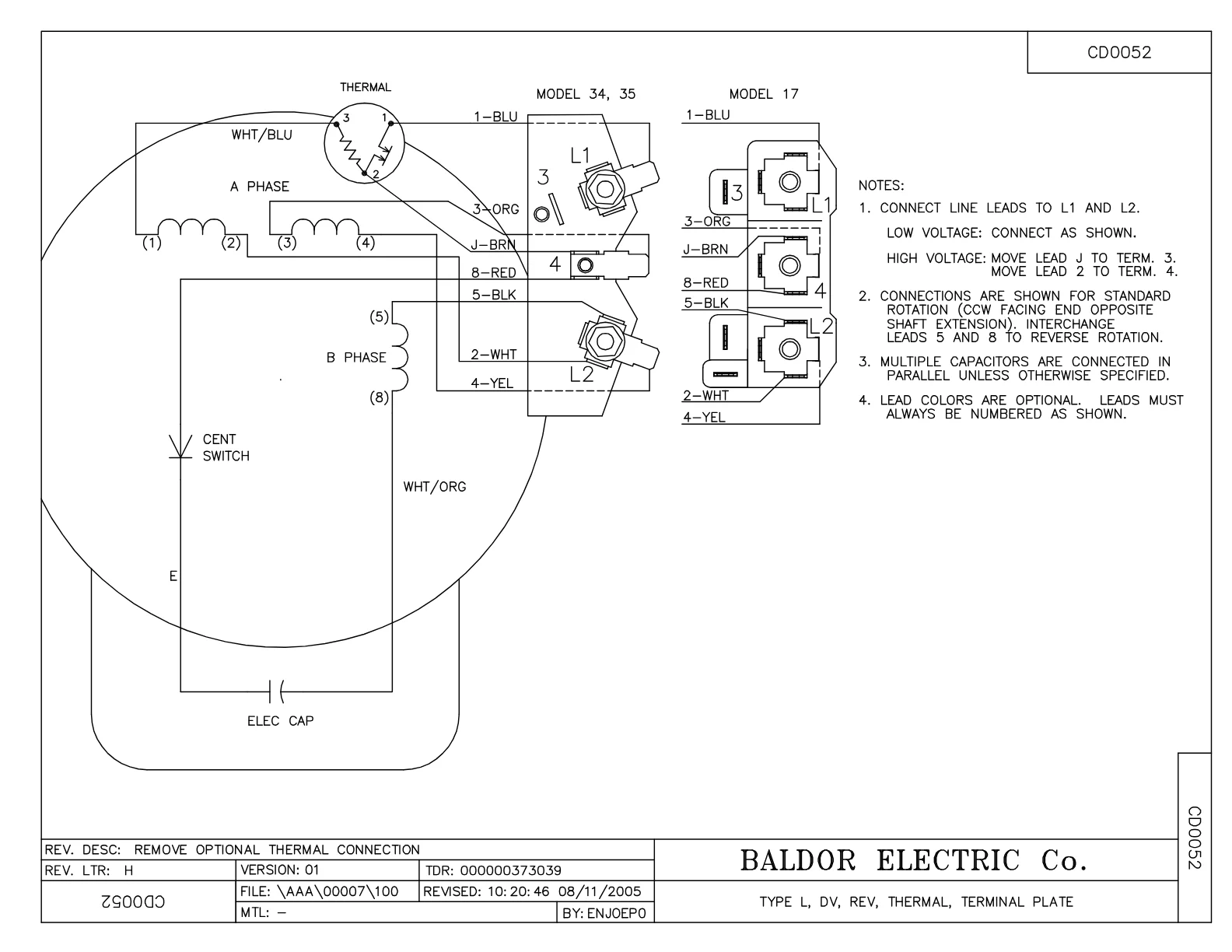

Wiring DiagramWiring DiagramPDF·45 KB·English

DatasheetDatasheetPDF·595 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

Series documents 1· shared by this product series

Dimension DrawingDimension SheetPDF·107 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 5

The genuine spare parts used for servicing and repairing the Baldor RL1324A motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.
