How can I get a price quote for Baldor RL1310A277?

You can request a fast quote for Baldor RL1310A277 from Yılsa Engineering. Reference part number YLSY09Y3WV2H9Q2. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Baldor RL1310A277 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Baldor RL1310A277 genuine and new?

Yes. This Baldor product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Baldor RL1310A277?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Baldor RL1310A277

Blower/Fan Motor - 1 hp, 1800 rpm, 1 ph, 277 V, 56/56H Frame, ODP (Open Drip-Proof) Enclosure, 60 Hz, 1725 rpm Base, Resilient Base Mount, Continuous Duty

BaldorMFR # RL1310A277SKU # YLSY09Y3WV2H9Q2

EnclosureOPEN

Frame56H

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Induction Run

Output at frequency1.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Blower/Fan Motor - 1 hp, 1800 rpm, 1 ph, 277 V, 56/56H Frame, ODP (Open Drip-Proof) Enclosure, 60 Hz, 1725 rpm Base, Resilient Base Mount, Continuous Duty

Baldor RL1310A277

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureOPEN

Frame56H

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Induction Run

Output at frequency1.000 HP @ 60 HZ

Phase1

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency277.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsC UR US

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorResilient

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage5.600 A @ 277.0 V

Design codeL

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load68.0 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)5.6 a

Front face codeTerminal Panel

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classF

Inverter codeNot Inverter

KVA codeM

Lifting lugsNo Lifting Lugs

Locked bearing indicatorNo Locked Bearing

Motor lead exitTerminal Panel

Motor lead terminationFlying Leads

Motor lead quantity/wire size5 @ 18 AWG

Motor type3528L

Mounting arrangementF1

Number of poles4

Overall length12.42 IN

Power factor71

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeResilient Mount

Pulley shaft indicatorStandard

Rodent screenNone

RoHS statusROHS COMPLIANT

Service factor1.15

Shaft diameter0.625 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible: Connected Standard

Shaft slinger indicatorNo Slinger

Speed (rpm)1725 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingDo Not Use Eve-Not Valiid

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1Automatic Thermal Overload

Winding thermal 1 locationSB

Winding thermal 2None

UPC781568308332

Motor CategoryBlower/Fan Motor

Motor Supply Voltage277 V

Base RPM1725 rpm

IP Rating22/23

Weight42 lbs

Harmonization Code8501.40.6040

ApplicationsVentilators, summer cooling fans, band saws, drill presses, farm equipment, etc.

Additional DetailsHeavy-gauge steel base, ball bearings. Dynamically balanced rotors for reduced vibration and quiet operation.

Mounting TypeResilient Base

Product TypeAir Handling (HVAC) Motors

Nameplate

Catalog numberRL1310A277

Specification number35E410G404

Horsepower (HP)1

Voltage (V)277

Current (A)5.6

Speed (rpm)1725

Frame size56H

Frequency (Hz)60

Phase1

Service factor1.15

Code letter (locked rotor kVA)M

NEMA design letterL

Insulation classF

NEMA nominal efficiency (%)68

Power factor71

Rating40C AMB-CONT

Drive end bearing6203

Opposite drive end bearing6203

EnclosureOPEN

Nameplate numberNP1257L

Performance

General characteristics· 277 V, 60 Hz, 1 hp

Line-to-line resistance at 25 °C (ohms)3.19 Ω / 4.02 Ohms B Ph

Temperature rise at rated load (°C)96° C

Temperature rise at service factor load (°C)106° C

Start configurationDOL

Breakdown torque9.38 lb-ft

Pull-up torque8.35 lb-ft

Locked-rotor torque12.9 lb-ft

Starting current (A)40.02 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	15	36	51	63	71	77	76	75
Efficiency %	0	53.9	65.8	68.8	68.3	64.2	1.1	65.8
Speed rpm	1798	1784	1769	1750	1724	1681	65.03	1698
Line amps A	3.41	3.59	4.02	4.68	5.56	6.78	16.25	6.29
Power W	140	357	573	816	1096	1446	3428	1306
Torque lb-ft	0	0.76	1.5	2.26	3.06	3.89	3.97	3.56

Documents & CAD

For this product 4

Dimension DrawingDimension SheetPDF·120 KB·English

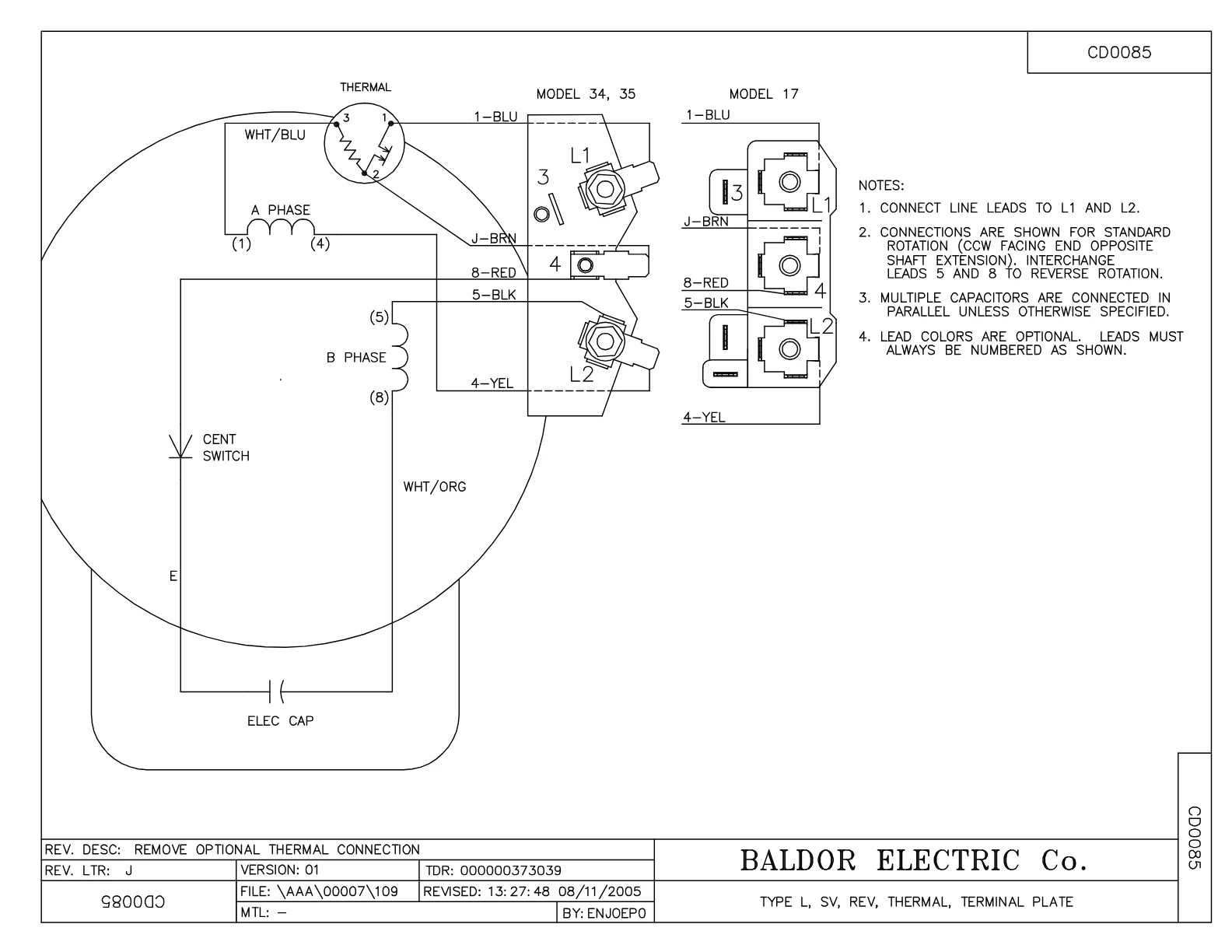

Wiring DiagramWiring DiagramPDF·40 KB·English

DatasheetDatasheetPDF·603 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 4

The genuine spare parts used for servicing and repairing the Baldor RL1310A277 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
EC1189C06SP	ELEC CAP, 189-227 MFD, 250V, 2.06D X 4.	1 pcs	7 motors
35CB4802A02SP	CAPACITOR COVER, STAMPED X	1 pcs	103 motors
LB1118	LABEL,WARNING (ROLL LABEL)	1 pcs	223 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
