Baldor RL1307A277

Blower/Fan Motor - 3/4 hp, 1800 rpm, 1 ph, 277 V, 56H Frame, ODP (Open Drip-Proof) Enclosure, 60 Hz, 1725 rpm Base, Resilient Base Mount, Continuous Duty

BaldorMFR # RL1307A277SKU # YLS2BH0URAKK9QO

EnclosureODP

Frame56H

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Induction Run

Output at frequency.750 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Blower/Fan Motor - 3/4 hp, 1800 rpm, 1 ph, 277 V, 56H Frame, ODP (Open Drip-Proof) Enclosure, 60 Hz, 1725 rpm Base, Resilient Base Mount, Continuous Duty

Baldor RL1307A277

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureODP

Frame56H

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Induction Run

Output at frequency.750 HP @ 60 HZ

Phase1

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency277.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsCURUS

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorResilient

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage4.200 A @ 277.0 V

Design codeN

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load66.0 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)4.2 a

Front face codeResilient Mount

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classF

Inverter codeNot Inverter

KVA codeM

Lifting lugsNo Lifting Lugs

Locked bearing indicatorNo Locked Bearing

Motor lead exitTerminal Panel

Motor lead terminationFlying Leads

Motor lead quantity/wire size5 @ 18 AWG

Motor type3428L

Mounting arrangementF1

Number of poles4

Overall length12.47 IN

Power factor69

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeResilient Mount

Pulley shaft indicatorStandard

Rodent screenNone

Service factor1.25

Shaft diameter0.625 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible: Connected Standard

Shaft slinger indicatorNo Slinger

Speed (rpm)1725 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1Automatic Thermal Overload

Winding thermal 1 locationSB

Winding thermal 2None

UPC781568308325

Motor CategoryBlower/Fan Motor

Motor Supply Voltage277 V

Base RPM1725 rpm

IP Rating22/23

Weight34 lbs

Harmonization Code8501.40.4040

ApplicationsVentilators, summer cooling fans, band saws, drill presses, farm equipment, etc.

Additional DetailsHeavy-gauge steel base, ball bearings. Dynamically balanced rotors for reduced vibration and quiet operation.

Mounting TypeResilient Base

Product TypeAir Handling (HVAC) Motors

Nameplate

Catalog numberRL1307A277

Specification number34L986X691G1

Horsepower (HP).75

Voltage (V)277

Current (A)4.2

Speed (rpm)1725

Frame size56H

Frequency (Hz)60

Phase1

Service factor1.25

Code letter (locked rotor kVA)M

NEMA design letterN

Insulation classF

NEMA nominal efficiency (%)66

Power factor69

Rating40C AMB-CONT

Drive end bearing6203

Opposite drive end bearing6203

EnclosureOPEN

Nameplate numberNP1257L

Performance

General characteristics· 277 V, 60 Hz, 0.75 hp

Line-to-line resistance at 25 °C (ohms)3.94 Ω / 6.8 Ohms B Ph

Temperature rise at rated load (°C)75° C

Temperature rise at service factor load (°C)91° C

Start configurationDOL

Breakdown torque6 lb-ft

Pull-up torque5.7 lb-ft

Locked-rotor torque10.8 lb-ft

Starting current (A)29 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	18	37	50	62	71	75	78	75
Efficiency %	0	43.4	60.3	65.7	67.4	67	64.7	67
Speed rpm	1799	1779	1765	1750	1733	1711	1685	1711
Line amps A	3.1	3.2	3.4	3.7	4.2	4.9	5.8	4.9
Power W	155	328	470	640	822	1020	1250	1020
Torque lb-ft	0	0.563	1.13	1.69	2.25	2.81	3.38	2.81

Documents & CAD

For this product 4

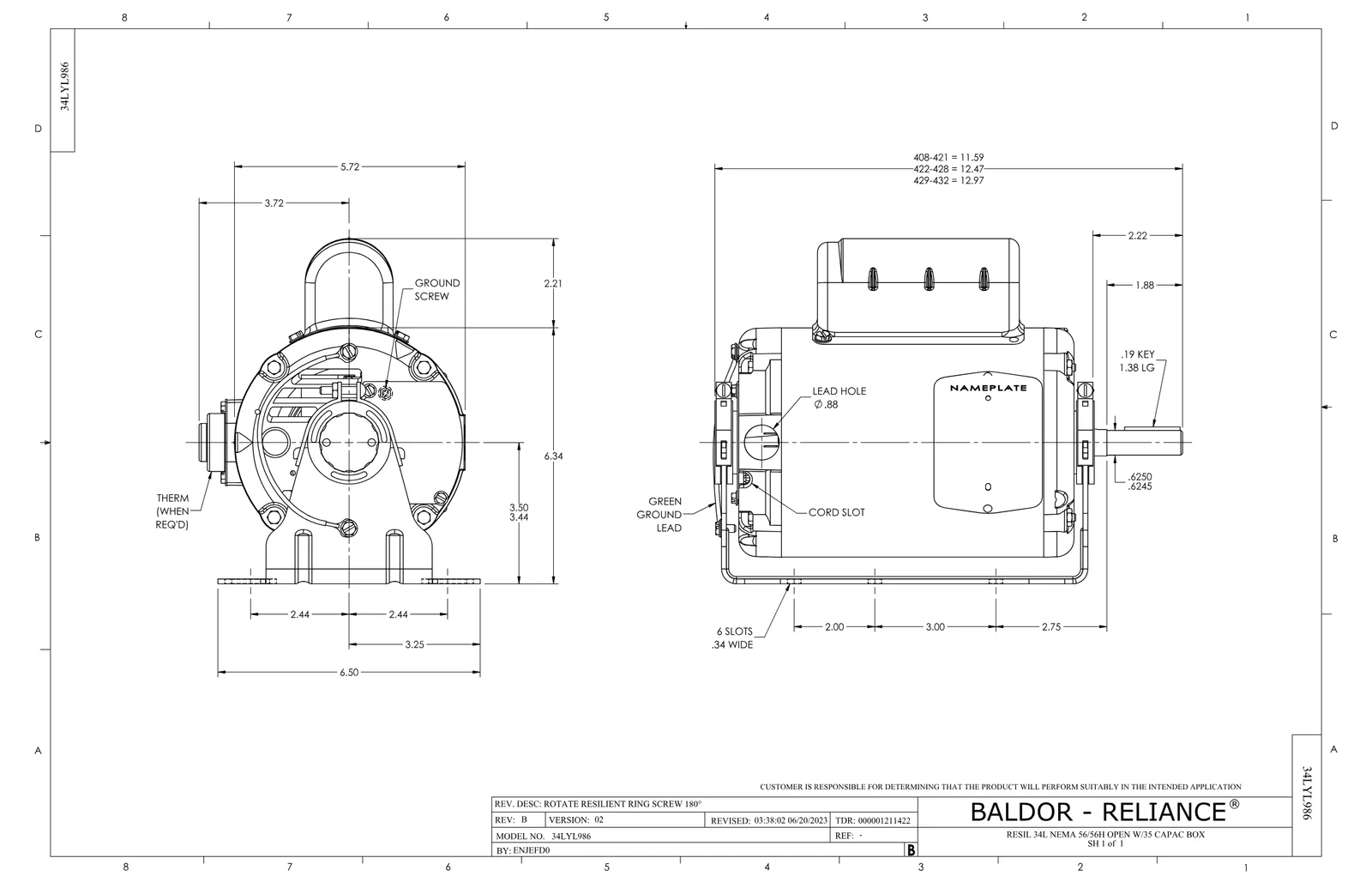

Dimension DrawingDimension SheetPDF·110 KB·English

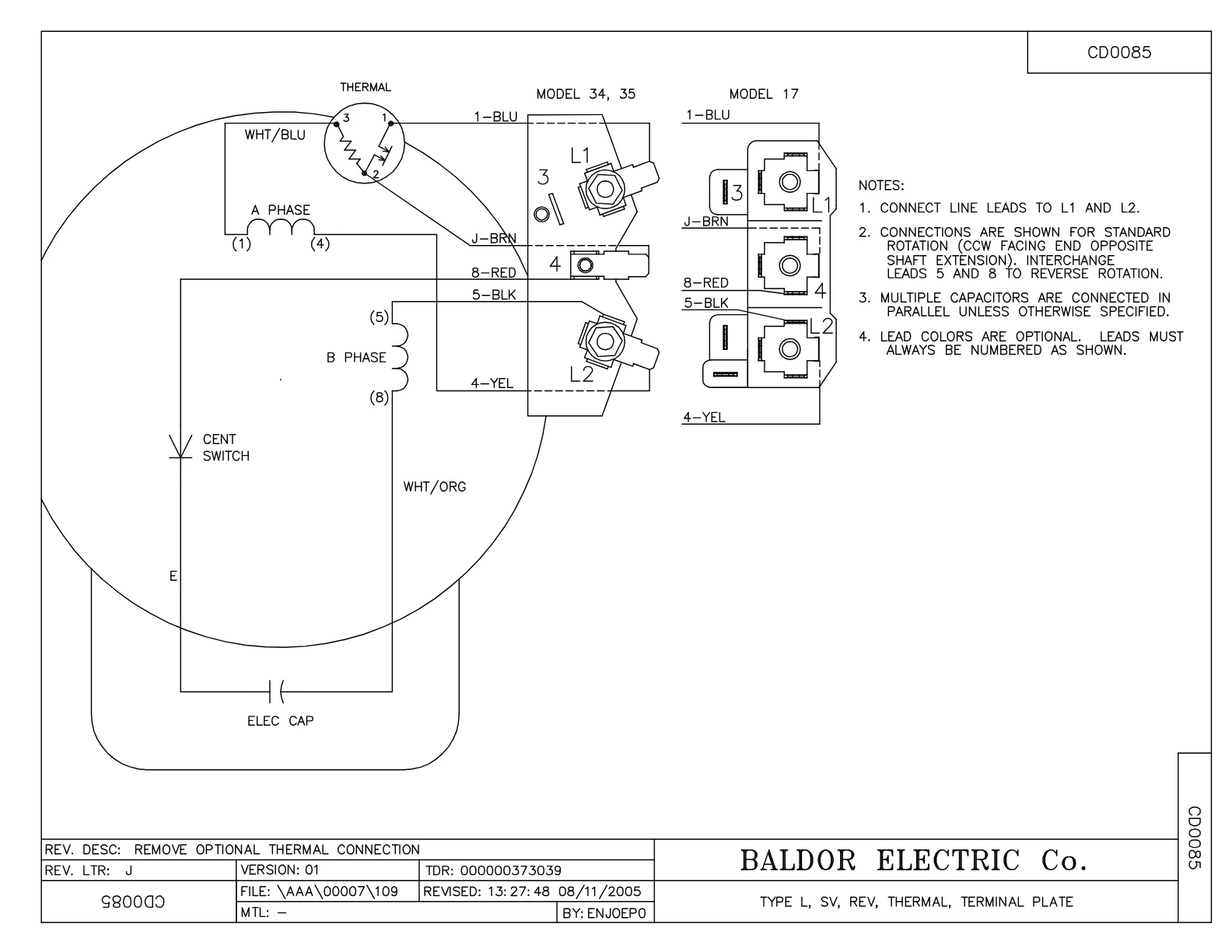

Wiring DiagramWiring DiagramPDF·40 KB·English

DatasheetDatasheetPDF·596 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 3

The genuine spare parts used for servicing and repairing the Baldor RL1307A277 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
34CB4501SP	TERMINAL BOX LID, STAMPED X (PLATED)	1 pcs	95 motors
LB1118	LABEL,WARNING (ROLL LABEL)	1 pcs	223 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
