Baldor RL1206A

Baldor-Reliance RL1206A is a general purpose AC electric motor with 0.33 HP, 1725 rpm, 1 phase 115/230 V 60 Hz, 56 frame and OPEN enclosure.

BaldorMFR # RL1206ASKU # YLS5809SQIETP4K

EnclosureOPEN

Frame56

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Induction Run

Output at frequency.330 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor-Reliance RL1206A is a general purpose AC electric motor with 0.33 HP, 1725 rpm, 1 phase 115/230 V 60 Hz, 56 frame and OPEN enclosure.

Baldor RL1206A

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureOPEN

Frame56

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Induction Run

Output at frequency.330 HP @ 60 HZ

Phase1

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency115.0 V @ 60 HZ · 230.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsC UR US

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorResilient

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage3.000 A @ 230.0 V · 3.600 A @ 208.0 V · 6.000 A @ 115.0 V

Design codeN

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load60.0 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)3.0 a

Front face codeResilient Mount

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classB

Inverter codeNot Inverter

KVA codeL

Lifting lugsNo Lifting Lugs

Locked bearing indicatorNo Locked Bearing

Motor lead exitTerminal Panel

Motor lead terminationFlying Leads

Motor lead quantity/wire size7 @ 18 AWG

Motor type3414L

Mounting arrangementF1

Number of poles4

Overall length10.96 IN

Power factor60

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeResilient Mount

Pulley shaft indicatorStandard

Rodent screenNone

RoHS statusROHS COMPLIANT

Service factor1.15

Shaft diameter0.625 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible: Connected Standard

Shaft slinger indicatorNo Slinger

Speed (rpm)1725 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1Automatic Thermal Overload

Winding thermal 1 locationSB

Winding thermal 2None

UPC781568718803

Nameplate

Catalog numberRL1206A

Specification number34K018-5599G1

Horsepower (HP).33

Voltage (V)115/230

Current (A)6/3

Speed (rpm)1725

Frame size56

Frequency (Hz)60

Phase1

Service factor1.15

Code letter (locked rotor kVA)L

NEMA design letterN

Insulation classB

NEMA nominal efficiency (%)60

Power factor60

Rating40C AMB-CONT

Drive end bearing6203

Opposite drive end bearing6203

EnclosureOPEN

Nameplate numberNP1257L

Performance

General characteristics· 230 V, 60 Hz, 0.33 hp

Line-to-line resistance at 25 °C (ohms)6.32 Ω / 4.93 Ohms B Ph

Temperature rise at rated load (°C)43° C

Temperature rise at service factor load (°C)47° C

Start configurationDOL

Breakdown torque2.95 lb-ft

Pull-up torque2.55 lb-ft

Locked-rotor torque3.6 lb-ft

Starting current (A)13 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	20	31	41	51	60	66	72	64
Efficiency %	0	34	49	56	60	62	63	61.2
Speed rpm	1795	1783	1765	1745	1730	1710	1680	1718
Line amps A	2.6	2.6	2.7	2.8	3	3.3	3.7	3.18
Power W	120	186	256	332	410	490	568	458
Torque lb-ft	0	0.25	0.5	0.75	1	1.25	1.5	1.15

Documents & CAD

For this product 3

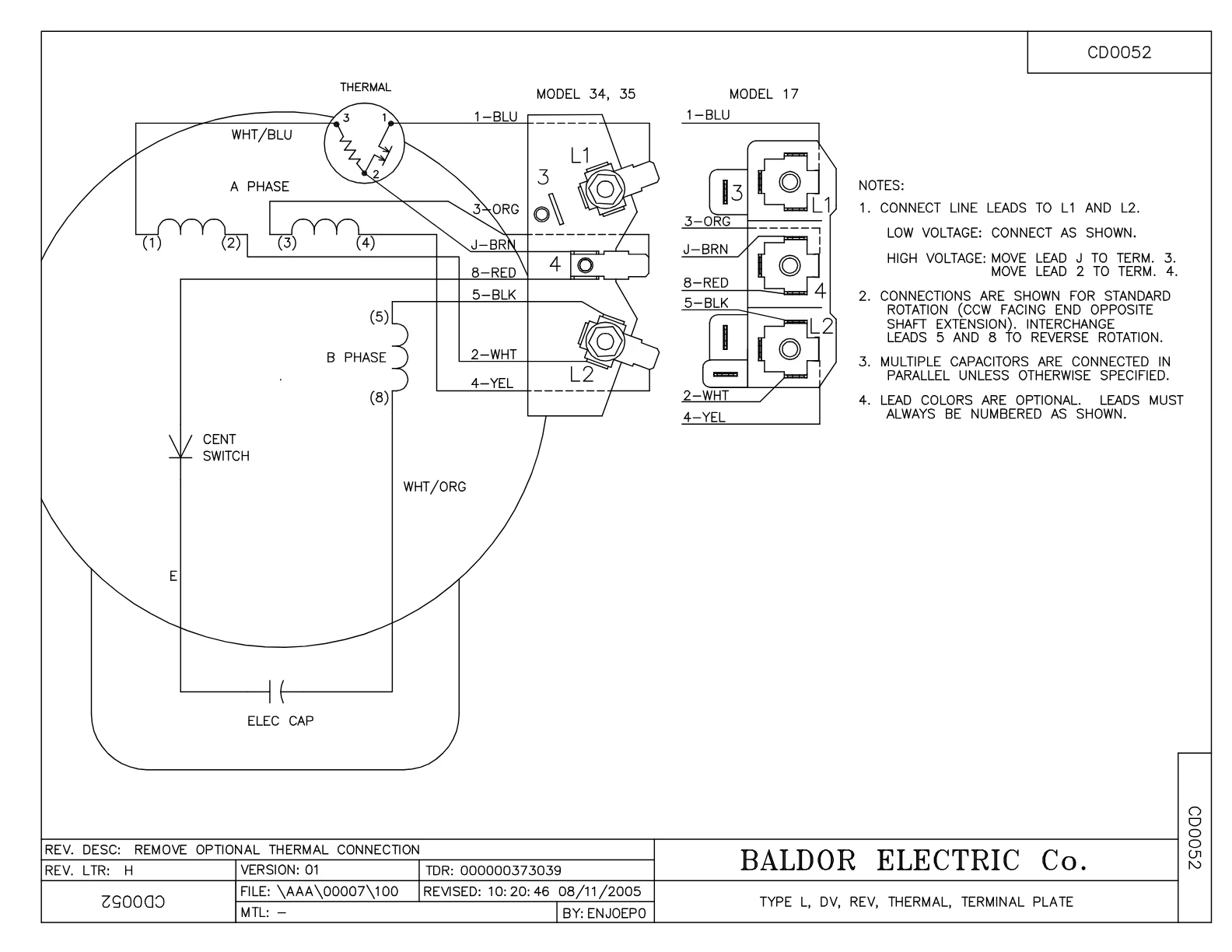

Wiring DiagramWiring DiagramPDF·45 KB·English

DatasheetDatasheetPDF·596 KB·English

Performance CurvePerformance CurvePDF·59 KB·English

Series documents 1· shared by this product series

Dimension DrawingDimension SheetPDF·107 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 5

The genuine spare parts used for servicing and repairing the Baldor RL1206A motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
EC1130A02SP	ELEC CAP, 130-156 MFD, 125V, 1.48D X 3.3	1 pcs	15 motors
34CB4501SP	TERMINAL BOX LID, STAMPED X (PLATED)	1 pcs	95 motors
34CB4800SP	CAPACITOR COVER, STAMPED PRIMED	1 pcs	79 motors
LB1118	LABEL,WARNING (ROLL LABEL)	1 pcs	223 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
