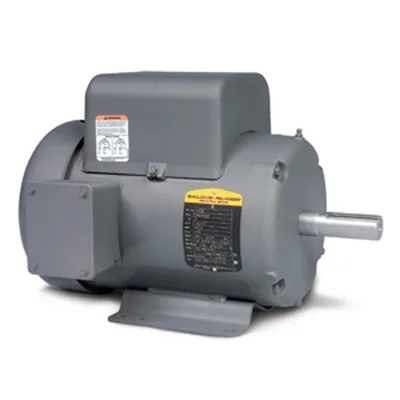

Baldor PL3514M

Pressure Washer Motor - 1-1/2 hp, 1800 rpm, 1 ph, 115/230 V, 56 Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 1725 rpm Base, Foot Mount, Continuous Duty

BaldorMFR # PL3514MSKU # YLSYKM9D4H3275V

Motor CategoryPressure Washer Motor

Motor Phase1 ph

Motor Horsepower1-1/2 hp

Synchronous Rpm1800 rpm

Motor Supply Voltage115/230 V

Frame Size56

Have questions?Chat on WhatsApp

About This Product

Pressure Washer Motor - 1-1/2 hp, 1800 rpm, 1 ph, 115/230 V, 56 Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 1725 rpm Base, Foot Mount, Continuous Duty

Baldor PL3514M

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Motor CategoryPressure Washer Motor

Motor Phase1 ph

Motor Horsepower1-1/2 hp

Synchronous Rpm1800 rpm

Motor Supply Voltage115/230 V

Frame Size56

Enclosure TypeTEFC (Totally Enclosed Fan Cooled)

Frequency Rating60 Hz

Full Load Current14.00 / 6.00 A

Duty Condition TypeContinuous Duty

Base RPM1725 rpm

Full Load Efficiency82.50 %

Amps @ Voltage6.0 A @ 230 V; 14.0 A @ 115 V

Volts @ Frequency115 V @ 60 Hz; 230 V @ 60 Hz

Shaft Diameter0.6250 in

Overall Length C Dimension14.12 in

Service Factor1.15

Frame MaterialSteel

Insulation ClassB

Standards MetCSA, UR

Harmonization Code8501.40.6040

Weight50 lbs

ApplicationsPressure washers, steam cleaners, portable and self contained stationary system for direct drive mount and doubled mount designs.

Additional DetailsBall bearing design. 1 1/2 horsepower ratings are rated at 14 amps or less on 115 volts. Manual thermal overload located in the conduit box. UL and CSA recognized component approval. Capacitor start, capacitor run (two value capacitor).

Mounting TypeFoot

Product TypeDefinite Purpose Motors
