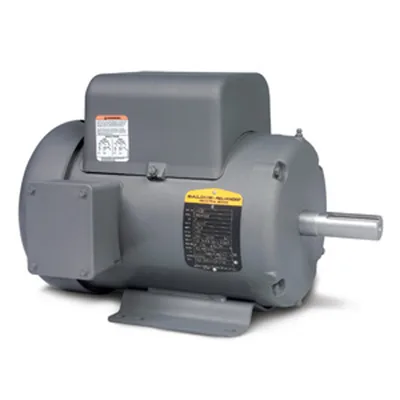

Baldor PL3513M

Pressure Washer Motor - 1-1/2 hp, 3600 rpm, 1 ph, 115/230 V, 56 Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, Foot Mount, Continuous Duty

BaldorMFR # PL3513MSKU # YLSYH5EV6VH79JW

Motor CategoryPressure Washer Motor

Motor Phase1 ph

Motor Horsepower1-1/2 hp

Synchronous Rpm3600 rpm

Motor Supply Voltage115/230 V

Frame Size56

Have questions?Chat on WhatsApp

About This Product

Pressure Washer Motor - 1-1/2 hp, 3600 rpm, 1 ph, 115/230 V, 56 Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, Foot Mount, Continuous Duty

Baldor PL3513M

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Motor CategoryPressure Washer Motor

Motor Phase1 ph

Motor Horsepower1-1/2 hp

Synchronous Rpm3600 rpm

Motor Supply Voltage115/230 V

Frame Size56

Enclosure TypeTEFC (Totally Enclosed Fan Cooled)

Frequency Rating60 Hz

Full Load Current13.20 / 6.60 A

Duty Condition TypeContinuous Duty

Full Load Efficiency75.50 %

Amps @ Voltage6.6 A @ 230 V; 13.2 A @ 115 V

Volts @ Frequency115 V @ 60 Hz; 230 V @ 60 Hz

Shaft Diameter0.6250 in

Overall Length C Dimension13.25 in

Service Factor1.15

Frame MaterialSteel

Insulation ClassB

Standards MetCSA, UR

Harmonization Code8501.40.6040

Weight38 lbs

ApplicationsPressure washers, steam cleaners, portable and self contained stationary system for direct drive mount and doubled mount designs.

Additional DetailsBall bearing design. 1 1/2 horsepower ratings are rated at 14 amps or less on 115 volts. Manual thermal overload located in the conduit box. UL and CSA recognized component approval. Capacitor start, capacitor run (two value capacitor).

Mounting TypeFoot

Product TypeDefinite Purpose Motors
