Baldor PCL3515M

Pressure Washer Motor - 2 hp, 3600 rpm, 1 ph, 115/230 V, 56C Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 3450 rpm Base, C-Face / Foot Mount, Continuous Duty

BaldorMFR # PCL3515MSKU # YLS23WDE2FGDG9K

EnclosureTEFC

Frame56C

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Cap Run

Output at frequency2.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Pressure Washer Motor - 2 hp, 3600 rpm, 1 ph, 115/230 V, 56C Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 3450 rpm Base, C-Face / Foot Mount, Continuous Duty

Baldor PCL3515M

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

Frame56C

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Cap Run

Output at frequency2.000 HP @ 60 HZ

Phase1

Synchronous speed at frequency (rpm)3600 RPM @ 60 HZ

Voltage at frequency115.0 V @ 60 HZ · 230.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsCURUS · C UR US

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage17.600 A @ 115.0 V · 8.800 A @ 230.0 V

Design codeL

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load77.0 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)8.8 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classF

Inverter codeNot Inverter

KVA codeF

Lifting lugsNo Lifting Lugs

Locked bearing indicatorLocked Bearing

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size4 @ 14 AWG, A&J

Motor type3524LC

Mounting arrangementF1

Number of poles2

Overall length13.23 IN

Power factor95

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeC-Face

Pulley shaft indicatorStandard

Rodent screenNone

RoHS statusROHS COMPLIANT

Service factor1.15

Shaft diameter0.625 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)3450 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingDo Not Use

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1Manual Thermal Overload

Winding thermal 1 locationKO

Winding thermal 2None

UPC781568112410

Motor CategoryPressure Washer Motor

Motor Supply Voltage115/230 V

Base RPM3450 rpm

Harmonization Code8501.40.6040

Weight43 lbs

ApplicationsPressure washers, steam cleaners, portable and self contained stationary system for direct drive mount and doubled mount designs.

Additional DetailsBall bearing design. 1 1/2 horsepower ratings are rated at 14 amps or less on 115 volts. Manual thermal overload located in the conduit box. UL and CSA recognized component approval. Capacitor start, capacitor run (two value capacitor).

Mounting TypeC-Face / Foot

Product TypeDefinite Purpose Motors

Nameplate

Catalog numberPCL3515M

Specification number35T973Y691

Horsepower (HP)2

Voltage (V)115/230

Current (A)17.6/8.8

Speed (rpm)3450

Frame size56C

Frequency (Hz)60

Phase1

Service factor1.15

Code letter (locked rotor kVA)F

NEMA design letterL

Insulation classF

NEMA nominal efficiency (%)77

Power factor95

Rating40C AMB-CONT

Drive end bearing6205

Opposite drive end bearing6203

EnclosureTEFC

Nameplate numberNP1257L

Performance

General characteristics· 230 V, 60 Hz, 2 hp

Line-to-line resistance at 25 °C (ohms)1.33 Ω / 1.27 Ohms B Ph

Temperature rise at rated load (°C)66° C

Temperature rise at service factor load (°C)88° C

Start configurationDOL

Breakdown torque6 lb-ft

Pull-up torque5 lb-ft

Locked-rotor torque7 lb-ft

Starting current (A)48 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	86	93	93	96	95	95	93	95
Efficiency %	0	57	72	76	77	72.5	73	74.3
Speed rpm	3590	3560	3539	3508	3473	3431	3380	3448
Line amps A	1.35	3.1	4.9	6.7	8.8	11.6	13.8	10.5
Power W	267	665	1047	1475	1922	2521	2960	0
Torque lb-ft	0	0.75	1.5	2.25	3	3.75	4.5	0

Documents & CAD

For this product 4

Dimension DrawingDimension SheetPDF·97 KB·English

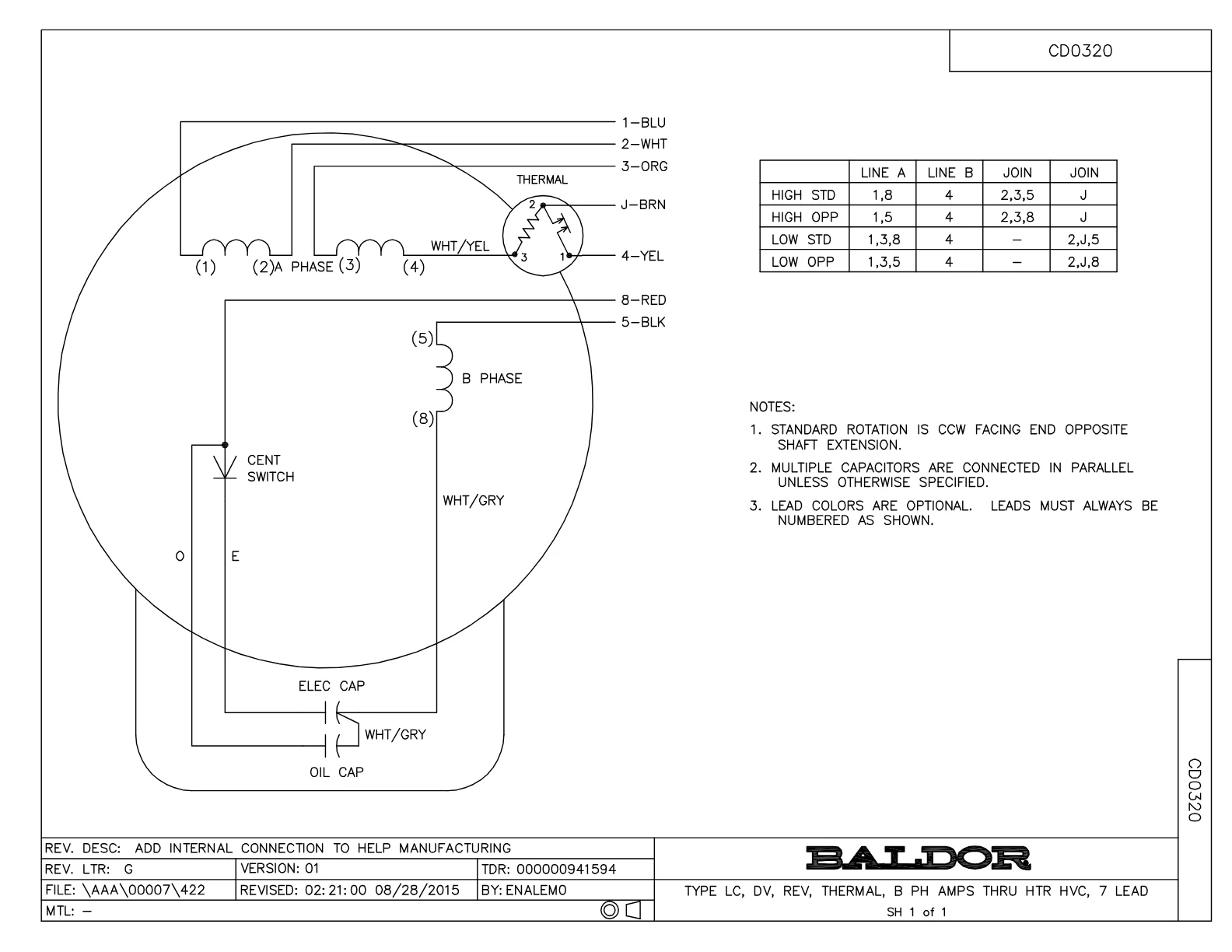

Wiring DiagramWiring DiagramPDF·39 KB·English

DatasheetDatasheetPDF·580 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 5

The genuine spare parts used for servicing and repairing the Baldor PCL3515M motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
OC3060C09SP	CAPACITOR 60 MFD 240 VAC	1 pcs	10 motors
EC1400A03SP	ELEC CAP, 400-480 MFD, 125V, 1.81D X 3.	1 pcs	37 motors
36GS1000SP	GASKET-CONDUIT BOX, .06 THICK #SV-330 LE	1 pcs	831 motors
35FN3002A05SP	EXFN, PLASTIC, 6.376 OD, .638 ID	1 pcs	436 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
