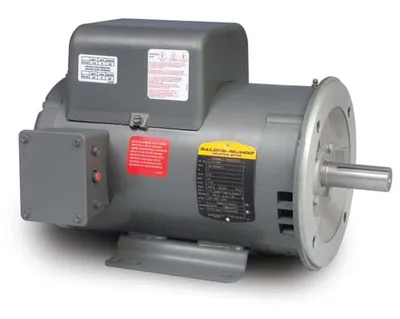

Baldor PCL1322M

Pressure Washer Motor - 2 hp, 1800 rpm, 1 ph, 115/230 V, 56C Frame, ODP (Open Drip-Proof) Enclosure, 60 Hz, 1725 rpm Base, C-Face / Foot Mount, Continuous Duty

BaldorMFR # PCL1322MSKU # YLSTXIZO7VIU4MO

Motor CategoryPressure Washer Motor

Motor Phase1 ph

Motor Horsepower2 hp

Synchronous Rpm1800 rpm

Motor Supply Voltage115/230 V

Frame Size56C

Have questions?Chat on WhatsApp

About This Product

Pressure Washer Motor - 2 hp, 1800 rpm, 1 ph, 115/230 V, 56C Frame, ODP (Open Drip-Proof) Enclosure, 60 Hz, 1725 rpm Base, C-Face / Foot Mount, Continuous Duty

Baldor PCL1322M

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Motor CategoryPressure Washer Motor

Motor Phase1 ph

Motor Horsepower2 hp

Synchronous Rpm1800 rpm

Motor Supply Voltage115/230 V

Frame Size56C

Enclosure TypeODP (Open Drip-Proof)

Frequency Rating60 Hz

Full Load Current9.20 A

Duty Condition TypeContinuous Duty

Base RPM1725 rpm

Thermal ProtectionManual

Full Load Efficiency78.50 %

Amps @ Voltage9.2 A @ 230 V; 18.4 A @ 115 V

Volts @ Frequency115 V @ 60 Hz; 230 V @ 60 Hz

Shaft Diameter0.6250 in

Overall Length C Dimension12.94 in

Type Of BearingBall

NEMA Design ClassL

Service Factor1.15

Frame MaterialSteel

Insulation ClassB

IP Rating22/23

Standards MetCSA, UR

Warranty2 Year Warranty

Harmonization Code8501.40.6040

Weight48 lbs

ApplicationsPressure washers, steam cleaners, portable and self contained stationary system for direct drive mount and doubled mount designs.

Additional DetailsBall bearing design. 1 1/2 horsepower ratings are rated at 14 amps or less on 115 volts. Manual thermal overload located in the conduit box. UL and CSA recognized component approval. Capacitor start, capacitor run (two value capacitor).

Mounting TypeC-Face / Foot

Product TypeDefinite Purpose Motors
