Baldor P18G2701

Baldor P18G2701; 5 HP, 1725 rpm, 3-phase 60 Hz, 460 V/230 V, 180TY frame, explosion-proof (TEXP, XPNV) enclosed, V1 AC electric motor.

BaldorMFR # P18G2701SKU # YLS5LKZLNHOQ0UGDiscontinued

EnclosureXPNV

Frame180TY

Frame materialIron

Motor letter typeThree Phase

Output at frequency5.000 @ 60 HZ

Phase3

Have questions?Chat on WhatsApp

About This Product

Baldor P18G2701; 5 HP, 1725 rpm, 3-phase 60 Hz, 460 V/230 V, 180TY frame, explosion-proof (TEXP, XPNV) enclosed, V1 AC electric motor.

Baldor P18G2701

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureXPNV

Frame180TY

Frame materialIron

Motor letter typeThree Phase

Output at frequency5.000 @ 60 HZ

Phase3

Voltage at frequency460 V @ 60 HZ · 230 V @ 60 HZ

Hazardous area class and groupCLI GP C,D

Hazardous area divisionDivision I

Agency approvalsUL · CSA · CCSA US

Base indicatorNo Mounting

Bearing grease typePolyrex EM (-20F +300F)

Cable length25 FOOT

Current at voltage14.0 A @ 230 V · 7.00 A @ 460 V

Design codeB

Drip coverNo Drip Cover

Duty rating15 MIN

Heater indicatorNo Heater

Inverter codeInverter Ready

KVA codeH

Lifting lugsVertical Lifting Lugs

Motor typeM

Mounting arrangementV1

Number of poles4

Overall length26.66 IN

Pulley end bearing typeBall

Pulley face codeP-Base

Service factor1.15

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - windingNormally Closed Thermostat

Hazardous area temperature codeT3C

UPC785398029702

Nameplate

Specification numberP18G2701

Horsepower (HP)5

Current (A)14.0/7.00

Voltage (V)230/460

NEMA design letterB

Frame sizeX0180TY

Speed (rpm)1725

Frequency (Hz)60

Ambient temperature (°C)40

Service factor1.15

Drive end bearing50BC02JPP30A

Phase3

Duty15MIN

Insulation classF

Opposite drive end bearing25BC02JPG30A

TypeP

EnclosureTENV

Code letter (locked rotor kVA)H

Nameplate number000613007MN

Documents & CAD

For this product 4

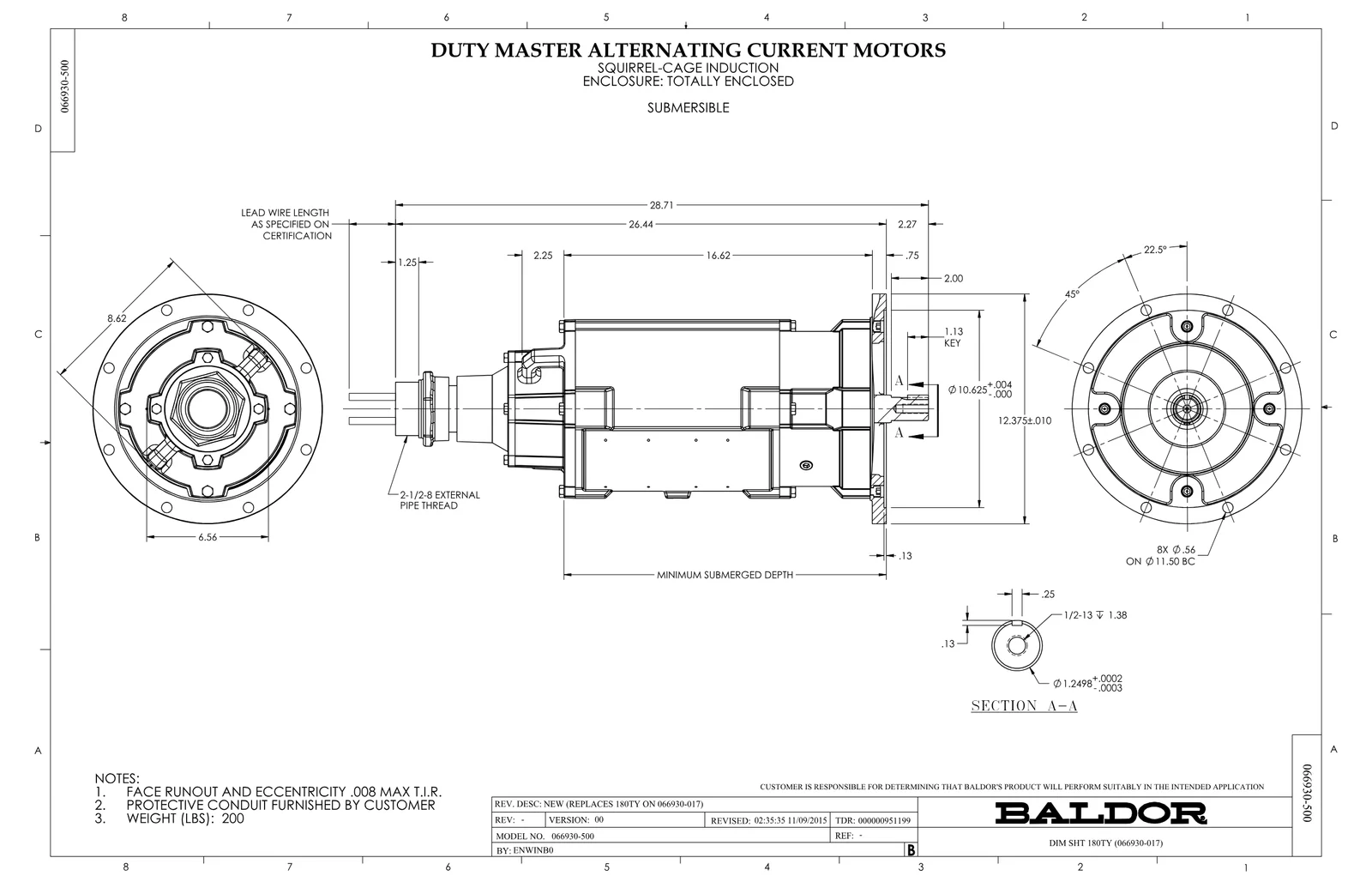

Dimension DrawingDimension SheetPDF·133 KB·English

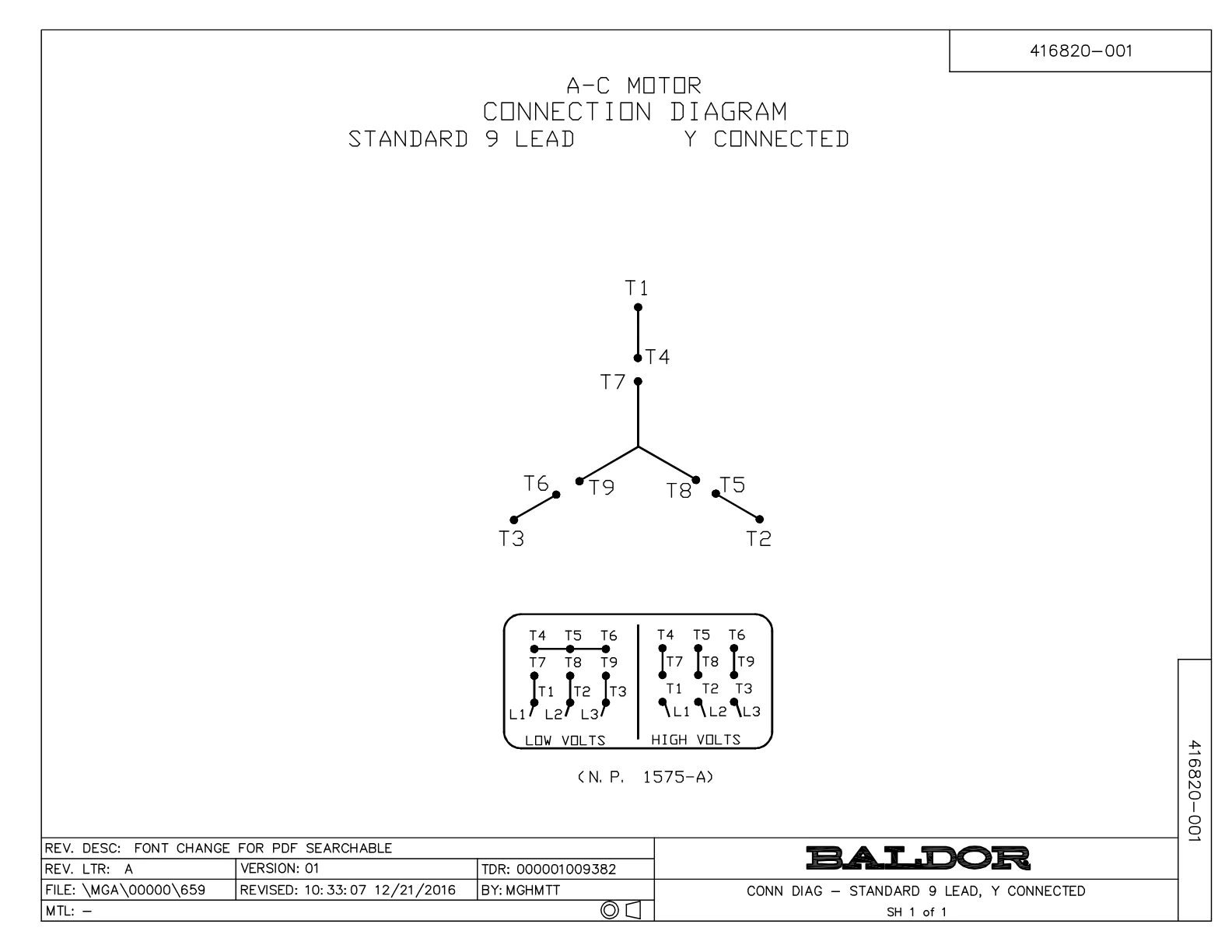

Wiring DiagramWiring DiagramPDF·32 KB·English

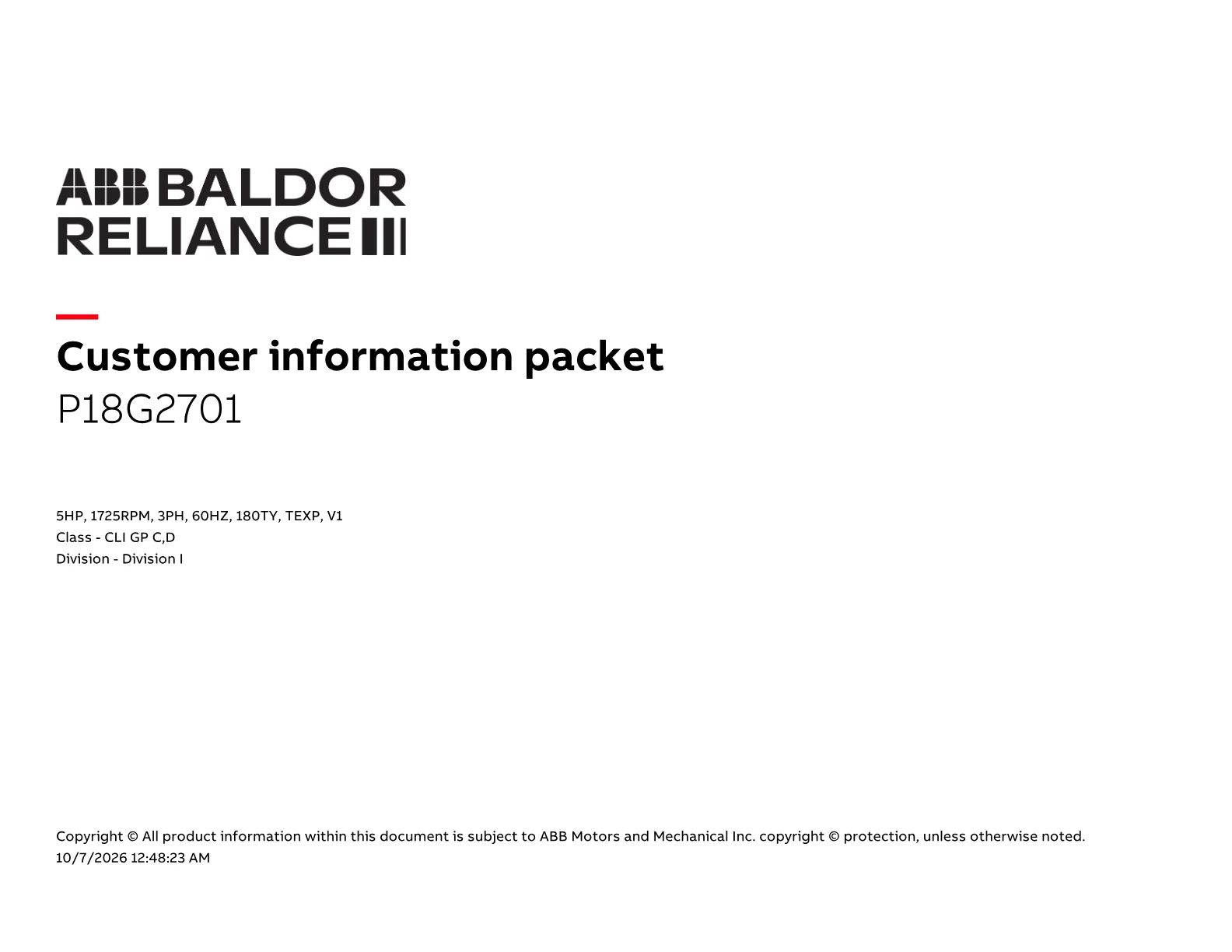

DatasheetDatasheetPDF·697 KB·English

Performance CurvePerformance CurvePDF·164 KB·English

Series documents 1· shared by this product series

Technical DrawingDrawingPDF·88 KB·English

Spare Parts 5

The genuine spare parts used for servicing and repairing the Baldor P18G2701 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
064262012B	SEAL	1 pcs	24 motors
064262012C	SEAL	1 pcs	44 motors
413480001R	RESISTOR ASSEMBLY-BLANKET	1 pcs	62 motors
421900124FU	ORING	3 pcs	33 motors
421900072FU	ORING	1 pcs	24 motors
