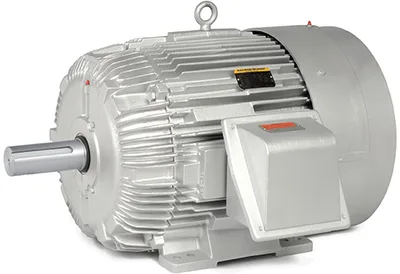

Baldor OF4409T

Severe Duty - Oil Field Motor - 100 hp, 1200 rpm, 3 ph, 460/796 V, 445T Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, Foot Mount, Continuous Duty

BaldorMFR # OF4409TSKU # YLSPEICXXMN9J84

Motor CategoryOil Field Motor

Motor Phase3 ph

Motor Horsepower100 hp

Synchronous Rpm1200 rpm

Motor Supply Voltage460/796 V

Frame Size445T

Have questions?Chat on WhatsApp

About This Product

Severe Duty - Oil Field Motor - 100 hp, 1200 rpm, 3 ph, 460/796 V, 445T Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, Foot Mount, Continuous Duty

Baldor OF4409T

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Motor CategoryOil Field Motor

Motor Phase3 ph

Motor Horsepower100 hp

Synchronous Rpm1200 rpm

Motor Supply Voltage460/796 V

Frame Size445T

Enclosure TypeTEFC (Totally Enclosed Fan Cooled)

Frequency Rating60 Hz

Duty Condition TypeContinuous Duty

Full Load Efficiency90.20 %

Amps @ Voltage67.6 A @ 796 V; 117.0 A @ 460 V

Volts @ Frequency460 V @ 60 Hz; 796 V @ 60 Hz

Shaft Diameter3.3750 in

Overall Length C Dimension48.24 in

Mounting TypeFoot

Service Factor1.15

Frame MaterialCast Iron

Insulation ClassF

Standards MetCCSA US, CSA EEV

Harmonization Code8501.52.8040

Weight2618 lbs

ApplicationsBeam pumping units, punch presses and other high cyclic load applications requiring high torque and high slip.

Additional DetailsHigh slip Nema Design D electrical designs. Open Drip Proof enclosures available with heavy-gauge steel and cast iron frames. Totally enclosed Fan cooled cast iron construction enclosures. F-2 position conduit box. Rodent screens on open motors, Severe Duty features on Totally enclosed motors. Shaft slinger, Normally closed thermostats, Corrosion resistant epoxy finish.

Product TypeSevere Duty Motors
