How can I get a price quote for Baldor OF4100T?

You can request a fast quote for Baldor OF4100T from Yılsa Engineering. Reference part number YLSNB82NNIBL49O. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Baldor OF4100T in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Baldor OF4100T genuine and new?

Yes. This Baldor product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Baldor OF4100T?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Baldor OF4100T

Severe Duty - Oil Field Motor - 15 hp, 1200 rpm, 3 ph, 230/460/796 V, 284T Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 1125 rpm Base, Foot Mount, Continuous Duty

BaldorMFR # OF4100TSKU # YLSNB82NNIBL49O

EnclosureTEFC

Frame284T

Frame materialCast Iron

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency15.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Severe Duty - Oil Field Motor - 15 hp, 1200 rpm, 3 ph, 230/460/796 V, 284T Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 1125 rpm Base, Foot Mount, Continuous Duty

Baldor OF4100T

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

Frame284T

Frame materialCast Iron

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency15.000 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)1200 RPM @ 60 HZ

Voltage at frequency796.0 V @ 60 HZ · 460.0 V @ 60 HZ · 230.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsCSA · UR

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage40.000 A @ 230.0 V · 20.000 A @ 460.0 V · 11.600 A @ 796.0 V

Design codeD

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load87.5 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)11.6 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classF

Inverter codeNot Inverter

KVA codeG

Lifting lugsStandard Lifting Lugs

Locked bearing indicatorLocked Bearing

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size12 @ 12 AWG

Motor type1048M

Mounting arrangementF2

Number of poles6

Overall length27.56 IN

Power factor81

Product familyChemical Processing (Not DC)

Pulley end bearing typeBall

Pulley face codeStandard

Pulley shaft indicatorStandard

Rodent screenNone

Service factor1.15

Shaft diameter1.875 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorShaft Slinger

Speed (rpm)1125 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNormally Closed Thermostat

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568301388

Motor CategoryOil Field Motor

Motor Supply Voltage230/460/796 V

Base RPM1125 rpm

Mounting TypeFoot

Harmonization Code8501.52.4000

Weight390 lbs

ApplicationsBeam pumping units, punch presses and other high cyclic load applications requiring high torque and high slip.

Additional DetailsHigh slip Nema Design D electrical designs. Open Drip Proof enclosures available with heavy-gauge steel and cast iron frames. Totally enclosed Fan cooled cast iron construction enclosures. F-2 position conduit box. Rodent screens on open motors, Severe Duty features on Totally enclosed motors. Shaft slinger, Normally closed thermostats, Corrosion resistant epoxy finish.

Product TypeSevere Duty Motors

Nameplate

Specification number10F492Y143G1

Horsepower (HP)15

Voltage (V)230/460/796

Current (A)40/20/11.6

Speed (rpm)1125

Frame size284T

Frequency (Hz)60

Phase3

Service factor1.15

Code letter (locked rotor kVA)G

NEMA design letterD

Insulation classF

NEMA nominal efficiency (%)87.5

Power factor81

Rating40C AMB-CONT

Usable at 208VN/A

Drive end bearing6311

Opposite drive end bearing6309

EnclosureTEFC

Nameplate numberNP2961E

Performance

General characteristics· 460 V, 60 Hz, 15 hp

Line-to-line resistance at 25 °C (ohms)0.567 Ω

Temperature rise at rated load (°C)69° C

Temperature rise at service factor load (°C)88° C

Start configurationDOL

Breakdown torque250 lb-ft

Pull-up torque140 lb-ft

Locked-rotor torque185 lb-ft

Starting current (A)119 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	7	43	65	75	81	83	84	82
Efficiency %	0	83.5	88.2	88.5	87.5	85.5	82.9	86.3
Speed rpm	1199	1183	1167	1150	1130	1108	1081	1117
Line amps A	9.5	9.66	12.3	15.7	20.2	24.6	30	22.7
Power W	490	3340	6358	9415	12718	16294	20147	14864
Torque lb-ft	0	16.6	33.9	51	69.3	88.6	109	80.9

Documents & CAD

For this product 4

Dimension DrawingDimension SheetPDF·57 KB·English

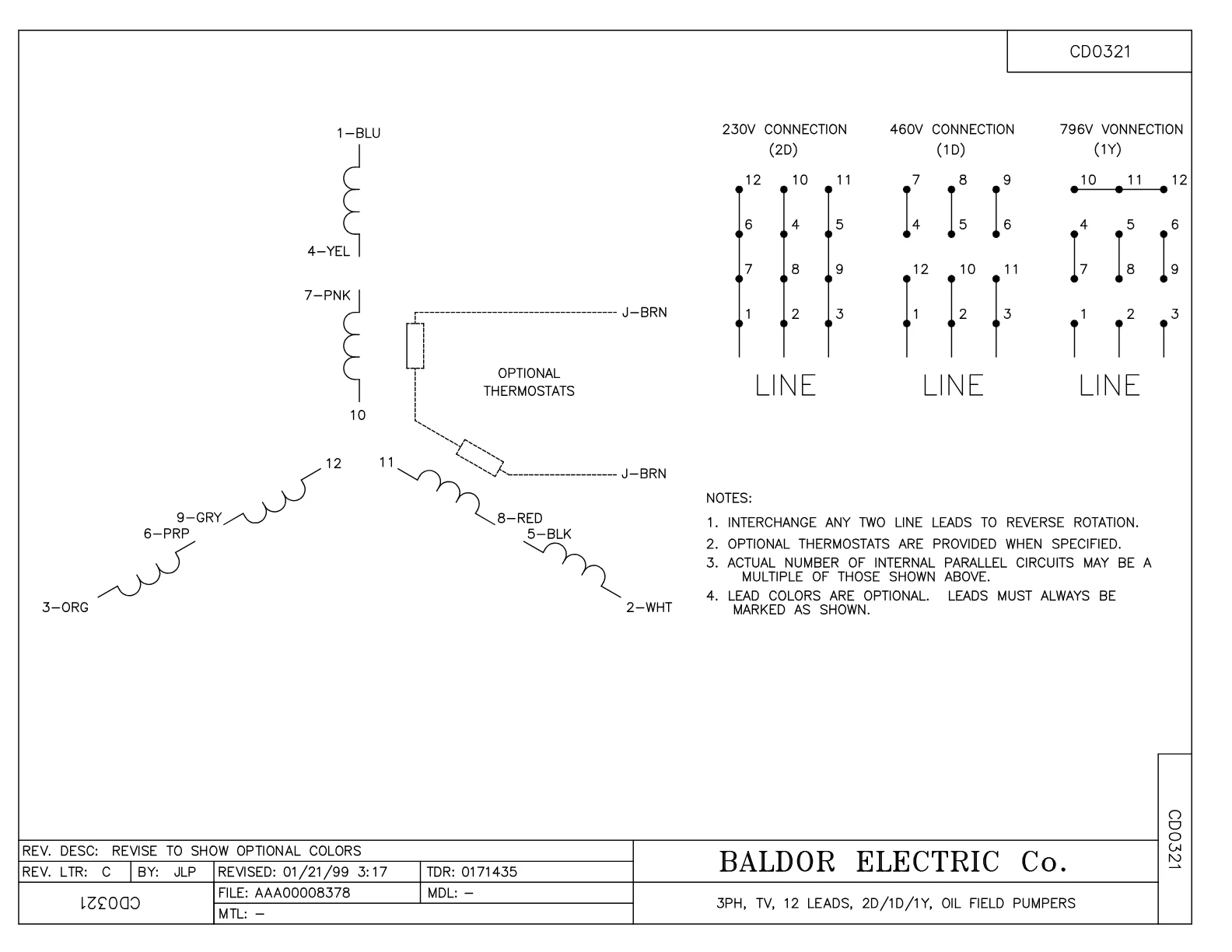

Wiring DiagramWiring DiagramPDF·46 KB·English

DatasheetDatasheetPDF·565 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

Series documents 1· shared by this product series

Technical DrawingDrawingPDF·87 KB·English

Spare Parts 6

The genuine spare parts used for servicing and repairing the Baldor OF4100T motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
09FN3001A02SP	EXTERNAL FAN, PLASTIC (COMES W/SCREW FRO	1 pcs	10 motors
09GS1010	GASKET, DWG, LEADWIRE SEPERATOR	1 pcs	343 motors
HW1001A31	LOCKWASHER 5/16, ZINC PLT.591 OD, .319 I	7 pcs	1,025 motors
14GS1003	GASKET CONDUIT BOX LID, NEOP	1 pcs	223 motors
LB1624	LABEL,LIFTING DEVICE (ON ROLLS)	2 pcs	4,237 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors

Accessories 2

Genuine accessories that can be used with the Baldor OF4100T motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
