How can I get a price quote for Baldor OF3307T?

You can request a fast quote for Baldor OF3307T from Yılsa Engineering. Reference part number YLS1EKA008B4K0D. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Baldor OF3307T in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Baldor OF3307T genuine and new?

Yes. This Baldor product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Baldor OF3307T?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

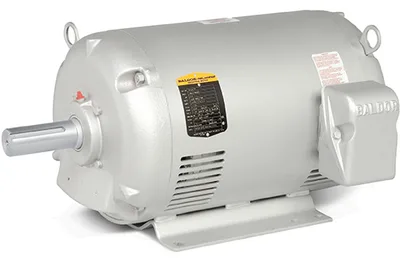

Photo may not represent actual item. Refer to name and product specs for all details.

Baldor OF3307T

Severe Duty - Oil Field Motor - 7-1/2 hp, 1200 rpm, 3 ph, 230/460/796 V, 254T Frame, ODP (Open Drip-Proof) Enclosure, 60 Hz, Foot Mount, Continuous Duty

BaldorMFR # OF3307TSKU # YLS1EKA008B4K0D

Motor CategoryOil Field Motor

Motor Phase3 ph

Motor Horsepower7-1/2 hp

Synchronous Rpm1200 rpm

Motor Supply Voltage230/460/796 V

Frame Size254T

Have questions?Chat on WhatsApp

About This Product

Severe Duty - Oil Field Motor - 7-1/2 hp, 1200 rpm, 3 ph, 230/460/796 V, 254T Frame, ODP (Open Drip-Proof) Enclosure, 60 Hz, Foot Mount, Continuous Duty

Baldor OF3307T

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Motor CategoryOil Field Motor

Motor Phase3 ph

Motor Horsepower7-1/2 hp

Synchronous Rpm1200 rpm

Motor Supply Voltage230/460/796 V

Frame Size254T

Enclosure TypeODP (Open Drip-Proof)

Frequency Rating60 Hz

Duty Condition TypeContinuous Duty

Full Load Amps24.8 / 12.4 / 7.2 A

Full Load Efficiency81.50 %

Amps @ Voltage7.2 A @ 796 V; 24.8 A @ 230 V; 12.4 A @ 460 V

Volts @ Frequency230 V @ 60 Hz; 460 V @ 60 Hz; 796 V @ 60 Hz

Shaft Diameter1.6250 in

Overall Length C Dimension24.18 in

Mounting TypeFoot

Service Factor1.00

Frame MaterialSteel

Insulation ClassB

Standards MetCSA, UR

Harmonization Code8501.52.4000

Weight209 lbs

ApplicationsBeam pumping units, punch presses and other high cyclic load applications requiring high torque and high slip.

Additional DetailsHigh slip Nema Design D electrical designs. Open Drip Proof enclosures available with heavy-gauge steel and cast iron frames. Totally enclosed Fan cooled cast iron construction enclosures. F-2 position conduit box. Rodent screens on open motors, Severe Duty features on Totally enclosed motors. Shaft slinger, Normally closed thermostats, Corrosion resistant epoxy finish.

Product TypeSevere Duty Motors
