How can I get a price quote for Baldor MVM5250D?

You can request a fast quote for Baldor MVM5250D from Yılsa Engineering. Reference part number YLSXDATCOPNM8X9. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Baldor MVM5250D in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Baldor MVM5250D genuine and new?

Yes. This Baldor product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Baldor MVM5250D?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

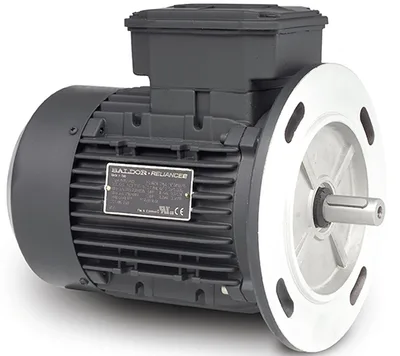

Baldor MVM5250D

IEC Frame AC Motor - 0.25 kW, 1800 rpm, 3 ph, 230/460 V, 71 Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, Flange / Footless Mount, Washdown Duty

BaldorMFR # MVM5250DSKU # YLSXDATCOPNM8X9

Motor CategoryGeneral Purpose Motor

Motor Phase3 ph

kW0.25 kW

Synchronous Rpm1800 rpm

Motor Supply Voltage230/460 V

Frame Size71

Have questions?Chat on WhatsApp

About This Product

IEC Frame AC Motor - 0.25 kW, 1800 rpm, 3 ph, 230/460 V, 71 Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, Flange / Footless Mount, Washdown Duty

Baldor MVM5250D

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Motor CategoryGeneral Purpose Motor

Motor Phase3 ph

kW0.25 kW

Synchronous Rpm1800 rpm

Motor Supply Voltage230/460 V

Frame Size71

Enclosure TypeTEFC (Totally Enclosed Fan Cooled)

Frequency Rating60 Hz

Duty Condition TypeWashdown Duty

Full Load Current15.70 A

Full Load Efficiency64.00 %

Volts @ Frequency230 V @ 60 Hz; 460 V @ 60 Hz

Shaft Diameter14 mm

Frame MaterialAluminum

Insulation ClassF

IP Rating55

Standards MetIEC, UL

Harmonization Code8501.51.4040

Weight12 lbs

ApplicationsReplacement motors for equipment made in Europe requiring IEC metric frame mounting.

Additional DetailsClass F insulated motor that operates within class “B” temperature limits at rated horsepower. IP55 weather proof enclosure, aluminum frame construction.

Mounting TypeFlange / Footless

Product TypeIEC Frame Motors
