Baldor MVM3463C

Baldor (ABB) MVM3463C is a .56KW (.750 HP) @ 60 HZ, 3450 rpm, 3-phase 230/460 V, D71C frame, TEFC enclosed general purpose AC motor.

BaldorMFR # MVM3463CSKU # YLS5JW1BB9CLOVI

EnclosureTEFC

FrameD71C

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency.750 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor (ABB) MVM3463C is a .56KW (.750 HP) @ 60 HZ, 3450 rpm, 3-phase 230/460 V, D71C frame, TEFC enclosed general purpose AC motor.

Baldor MVM3463C

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

FrameD71C

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency.750 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)3600 RPM @ 60 HZ

Voltage at frequency460.0 V @ 60 HZ · 230.0 V @ 60 HZ

Agency approvalsCURUS

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorNo Mounting

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage1.400 A @ 460.0 V · 2.800 A @ 230.0 V · 3.400 A @ 208.0 V

Design codeB

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load75.5 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

Feedback signalNONE

High voltage full load current (A)1.4 a

Frame prefixD

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classB

Inverter codeNot Inverter

IP ratingNONE

KVA codeL

Lifting lugsNo Lifting Lugs

Locked bearing indicatorLocked Bearing

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size9 @ 18 AWG

Motor type3328M

Mounting arrangementF2

Number of poles2

Overall length11.24 IN

Power factor78

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeC-Face

Pulley shaft indicatorTapped & Key

Rodent screenNone

RoHS statusROHS COMPLIANT

Service factor1.25

Shaft diameter0.552 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)3450 rpm

Speed codeSingle Speed

Motor standardsIEC

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568177174

Nameplate

Catalog numberMVM3463C

Specification number33-1922W274

IEC frame sizeD71C

Power (kW).56 TE

Voltage (V)230/460 ENCL TEFC

Current (A)2.8/1.4

Speed (rpm)3450

Ingress protection (IP)54

Frequency (Hz)60

Phase3

Insulation classB

Service factor1.25

NEMA design letterB

Code letter (locked rotor kVA)L

NEMA nominal efficiency (%)75.5

Power factor78

Rating40C AMB-CONT

Drive end bearing6203

Opposite drive end bearing6203

Nameplate numberNP1379L

Performance

General characteristics· 460 V, 60 Hz, 0.75 hp

Line-to-line resistance at 25 °C (ohms)16.4 Ω

Start configurationDOL

Breakdown torque6.7 lb-ft

Pull-up torque4.4 lb-ft

Locked-rotor torque5.9 lb-ft

Starting current (A)10 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	18	42	60	72	80	85	88	85
Efficiency %	0	58.7	72.2	77.7	80.1	81.1	81.4	81.1
Speed rpm	3592	3565	3537	3507	3476	3444	3409	3444
Line amps A	0.66	0.71	0.81	0.94	1.1	1.28	1.48	1.28
Power W	95	240	388	541	699	863	1033	863
Torque lb-ft	0	0.278	0.557	0.843	1.134	1.43	1.735	1.43

Documents & CAD

For this product 3

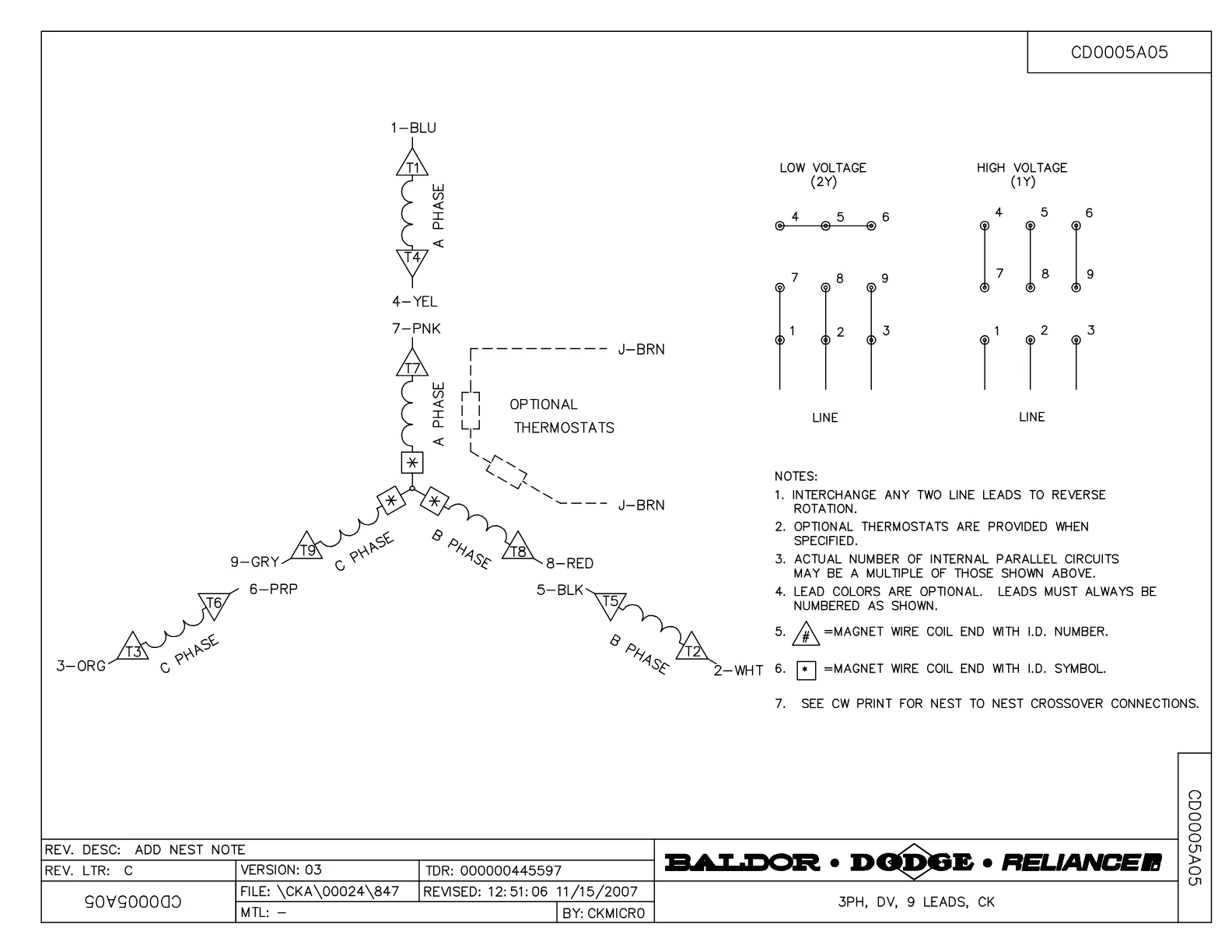

Wiring DiagramWiring DiagramPDF·49 KB·English

DatasheetDatasheetPDF·759 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

Series documents 1· shared by this product series

Dimension DrawingDimension SheetPDF·102 KB·English

CAD Files 8

3D Model

2D Drawing

AutoCAD DWG.dwg · 400 KB

Spare Parts 2

The genuine spare parts used for servicing and repairing the Baldor MVM3463C motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.
