Baldor MVM3461C

Baldor (ABB) MVM3461C is a .37KW (.500 HP) @ 60 HZ, 1725 rpm, 3-phase 208/230/460 V, D71C frame, TEFC enclosed general purpose AC motor.

BaldorMFR # MVM3461CSKU # YLSXTSGMH5LHF2

EnclosureTEFC

FrameD71C

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency.500 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor (ABB) MVM3461C is a .37KW (.500 HP) @ 60 HZ, 1725 rpm, 3-phase 208/230/460 V, D71C frame, TEFC enclosed general purpose AC motor.

Baldor MVM3461C

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

FrameD71C

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency.500 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency460.0 V @ 60 HZ · 230.0 V @ 60 HZ · 208.0 V @ 60 HZ

Agency approvalsCURUS

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorNo Mounting

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage1.200 A @ 460.0 V · 2.400 A @ 230.0 V · 2.600 A @ 208.0 V

Design codeB

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load71.0 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

Feedback signalNONE

High voltage full load current (A)1.2 a

Frame prefixD

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classB

Inverter codeNot Inverter

IP ratingNONE

Lifting lugsNo Lifting Lugs

Locked bearing indicatorLocked Bearing

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size9 @ 18 AWG

Motor type3320M

Mounting arrangementF2

Number of poles4

Overall length10.74 IN

Power factor54

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeC-Face

Pulley shaft indicatorTapped & Key

Rodent screenNone

RoHS statusROHS COMPLIANT

Service factor1.00

Shaft diameter0.552 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)1725 rpm

Speed codeSingle Speed

Motor standardsIEC

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568177266

Documents & CAD

For this product 2

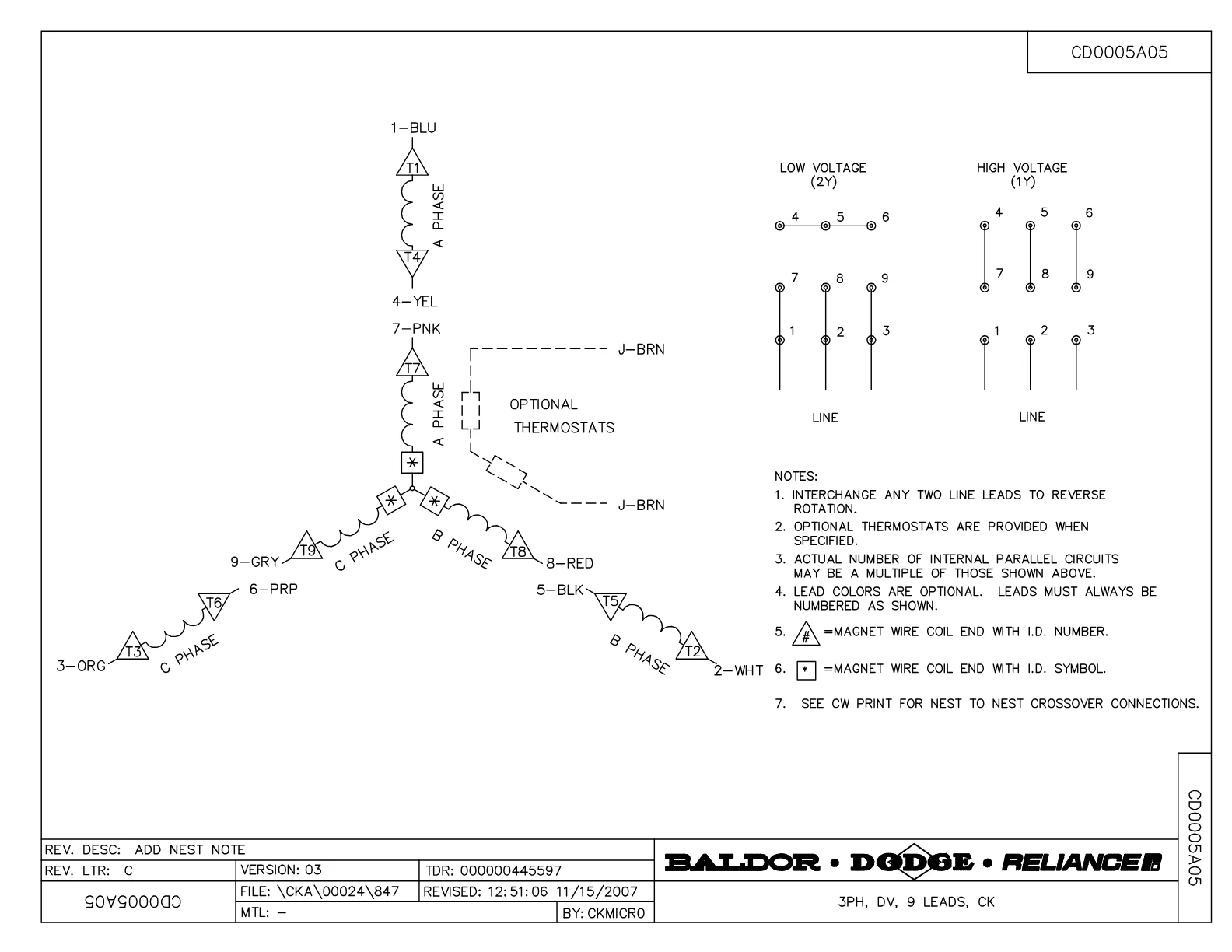

Wiring DiagramWiring DiagramPDF·49 KB·English

DatasheetDatasheetPDF·512 KB·English

Series documents 1· shared by this product series

Dimension DrawingDimension SheetPDF·102 KB·English

Spare Parts 2

The genuine spare parts used for servicing and repairing the Baldor MVM3461C motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.
