How can I get a price quote for Baldor MM5500?

You can request a fast quote for Baldor MM5500 from Yılsa Engineering. Reference part number YLS4DP47XJWPSTV. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Baldor MM5500 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Baldor MM5500 genuine and new?

Yes. This Baldor product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Baldor MM5500?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

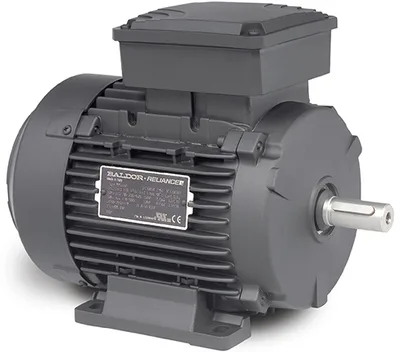

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Baldor MM5500

IEC Frame AC Motor - 0.75 kW, 3600 rpm, 3 ph, 230/460 V, 80 Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, Foot Mount, Washdown Duty

BaldorMFR # MM5500SKU # YLS4DP47XJWPSTV

Motor CategoryGeneral Purpose Motor

Motor Phase3 ph

kW0.75 kW

Synchronous Rpm3600 rpm

Motor Supply Voltage230/460 V

Frame Size80

Have questions?Chat on WhatsApp

About This Product

IEC Frame AC Motor - 0.75 kW, 3600 rpm, 3 ph, 230/460 V, 80 Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, Foot Mount, Washdown Duty

Baldor MM5500

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Motor CategoryGeneral Purpose Motor

Motor Phase3 ph

kW0.75 kW

Synchronous Rpm3600 rpm

Motor Supply Voltage230/460 V

Frame Size80

Enclosure TypeTEFC (Totally Enclosed Fan Cooled)

Frequency Rating60 Hz

Duty Condition TypeWashdown Duty

Full Load Current47.00 A

Full Load Efficiency76.00 %

Volts @ Frequency230 V @ 60 Hz; 460 V @ 60 Hz

Shaft Diameter19 mm

Frame MaterialAluminum

Insulation ClassF

IP Rating55

Standards MetIEC, UL

Harmonization Code8501.51.6040

Weight20 lbs

ApplicationsReplacement motors for equipment made in Europe requiring IEC metric frame mounting.

Additional DetailsClass F insulated motor that operates within class “B” temperature limits at rated horsepower. IP55 weather proof enclosure, aluminum frame construction.

Mounting TypeFoot

Product TypeIEC Frame Motors
