Baldor MM10224-PP
Baldor (ABB) MM10224-PP (M3BP 100 LC 4P B3); 2.20 KW @ 50/60 HZ, 1450/1755 rpm, 3 phase 230/400 V @ 50 HZ and 460 V @ 60 HZ, 100 frame, TEFC, Process Performance series 4-pole B3-mounted AC electric motor.
EnclosureTEFC
Frame100
Frame materialCast Iron
Frequency (Hz)50.00 Hz · 60.00 Hz
Output at frequency2.20 KW @ 50 HZ · 2.20 KW @ 60 HZ
Phase3
About This Product
Baldor (ABB) MM10224-PP (M3BP 100 LC 4P B3); 2.20 KW @ 50/60 HZ, 1450/1755 rpm, 3 phase 230/400 V @ 50 HZ and 460 V @ 60 HZ, 100 frame, TEFC, Process Performance series 4-pole B3-mounted AC electric motor.
Baldor MM10224-PP
- Genuine, certified Baldor product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
EnclosureTEFC
Frame100
Frame materialCast Iron
Frequency (Hz)50.00 Hz · 60.00 Hz
Output at frequency2.20 KW @ 50 HZ · 2.20 KW @ 60 HZ
Phase3
Synchronous speed at frequency (rpm)1500 RPM @ 50 HZ
Voltage at frequency460 V @ 60 HZ · 400 V @ 50 HZ · 230 V @ 50 HZ
Ambient temperature (°C)40 °C
Auxiliary boxTop
CECE
Current at voltage4.08 A @ 460 V · 4.60 A @ 400 V · 8.00 A @ 230 V
Duty ratingS1
Efficiency at 100% load86.1 %
Efficiency at 50% load (%)84.3 %
Efficiency at 75% load85.4 %
High voltage full load current (A)4.1 a
Insulation classF
IP ratingIP55
Number of poles4
Power factor.83
Product familyProcess Performance
PTC thermistor connection diagram3GZF321200-1D
Rotor inertia0.00948 lb-ft2
Speed (rpm)1450 rpm · 1755 rpm
Speed codeSingle Speed
Motor standardsIEC
UPC781568659878

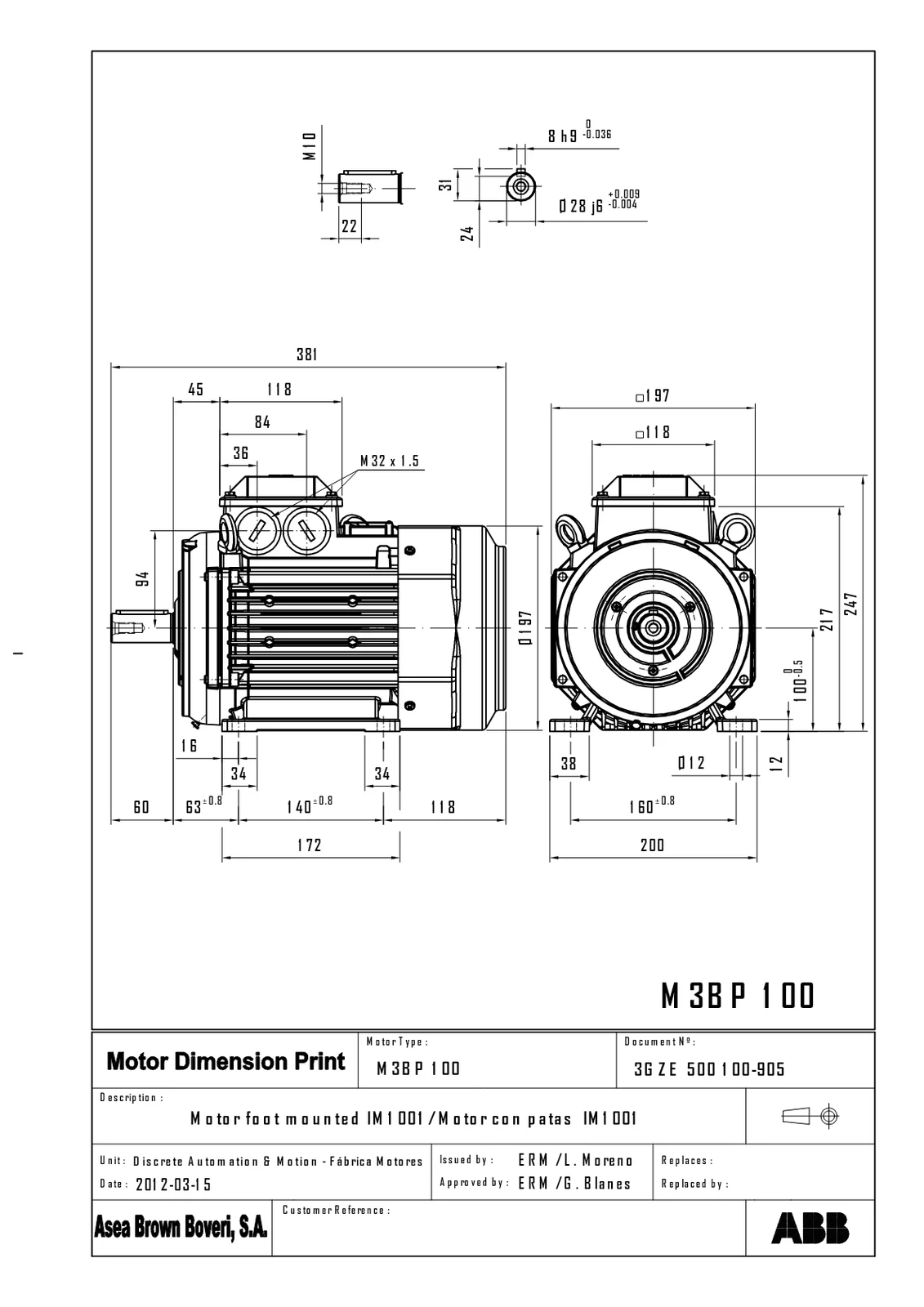

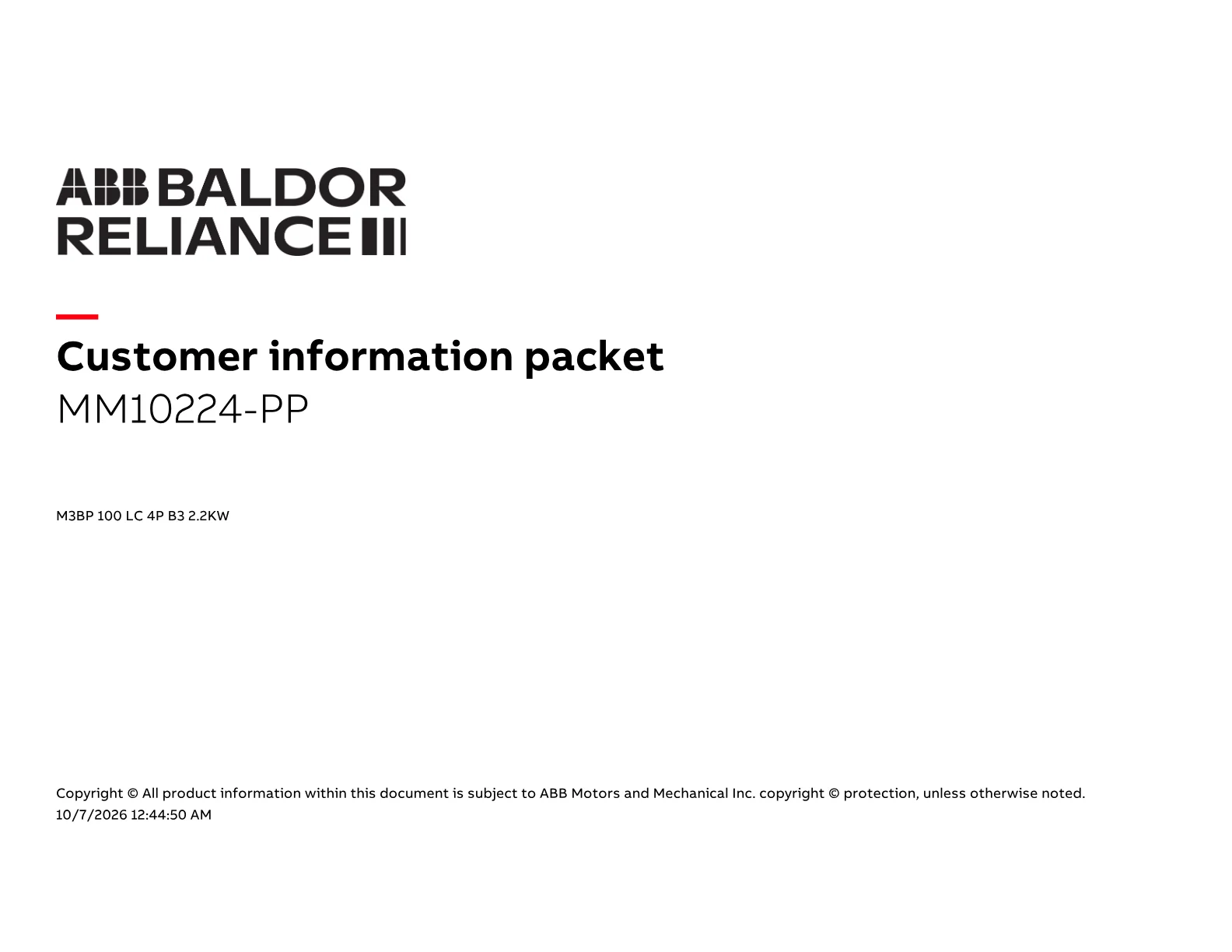

Documents & CAD
For this product 2
Series documents 3· shared by this product series
