How can I get a price quote for Baldor M43016TX-50?

You can request a fast quote for Baldor M43016TX-50 from Yılsa Engineering. Reference part number YLSMZVUASXECIDX. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Baldor M43016TX-50 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Baldor M43016TX-50 genuine and new?

Yes. This Baldor product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Baldor M43016TX-50?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Baldor M43016TX-50

Baldor-Reliance M43016TX-50 is a 75 HP, 1480 rpm, 3-phase 380/460 V, 50 Hz, 365T frame, TEFC general industrial three-phase induction motor.

BaldorMFR # M43016TX-50SKU # YLSMZVUASXECIDX

EnclosureTEFC

Frame365T

Frame materialCast Iron

Frequency (Hz)50.00 Hz

Motor letter typeThree Phase

Output at frequency75.000 HP @ 50 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor-Reliance M43016TX-50 is a 75 HP, 1480 rpm, 3-phase 380/460 V, 50 Hz, 365T frame, TEFC general industrial three-phase induction motor.

Baldor M43016TX-50

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

Frame365T

Frame materialCast Iron

Frequency (Hz)50.00 Hz

Motor letter typeThree Phase

Output at frequency75.000 HP @ 50 HZ

Phase3

Synchronous speed at frequency (rpm)1500 RPM @ 50 HZ

Voltage at frequency380.0 V @ 50 HZ · 460.0 V @ 50 HZ

Hazardous area class and groupNone

Hazardous area divisionDivision II

Agency approvalsCCSA US

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

Current at voltage105.000 A @ 380.0 V · 89.000 A @ 460.0 V

Design codeB

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load93.5 %

Feedback deviceNO FEEDBACK

High voltage full load current (A)89.0 a

Heater indicatorNo Heater

Insulation classF

Inverter codeInverter Ready

IP ratingNONE

KVA codeF

Lifting lugsStandard Lifting Lugs

Motor lead quantity/wire size12 @ 6 AWG

Motor typeA3664M

Mounting arrangementF1

Number of poles4

Overall length33.48 IN

Power factor83

Product familyGeneral Industrial

Pulley end bearing typeBall

Pulley face codeStandard

Service factor1.00

Shaft diameter2.375 IN

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorShaft Slinger

Speed (rpm)1480 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - windingNone

Hazardous area temperature codeT2C

UPC781568881415

Nameplate

Catalog numberM43016TX-50

Specification numberA36-7660-0610

Frame size365T

Horsepower (HP)75

Phase3

NEMA design letterB

TypeP

Speed (rpm)1480

Frequency (Hz)50

Ambient temperature (°C)40

Service factor1.15

Voltage (V)380/460

DutyCONT

Insulation classF

Current (A)105/89

EnclosureTEFC

Code letter (locked rotor kVA)F

Drive end bearing65BC03J30X

Nominal efficiency (%)93.5

Opposite drive end bearing65BC03J30X

Inertia (WK²)0.59

Motor weight437 KG

Nameplate numberNP3631L

Documents & CAD

For this product 4

Dimension DrawingDimension SheetPDF·275 KB·English

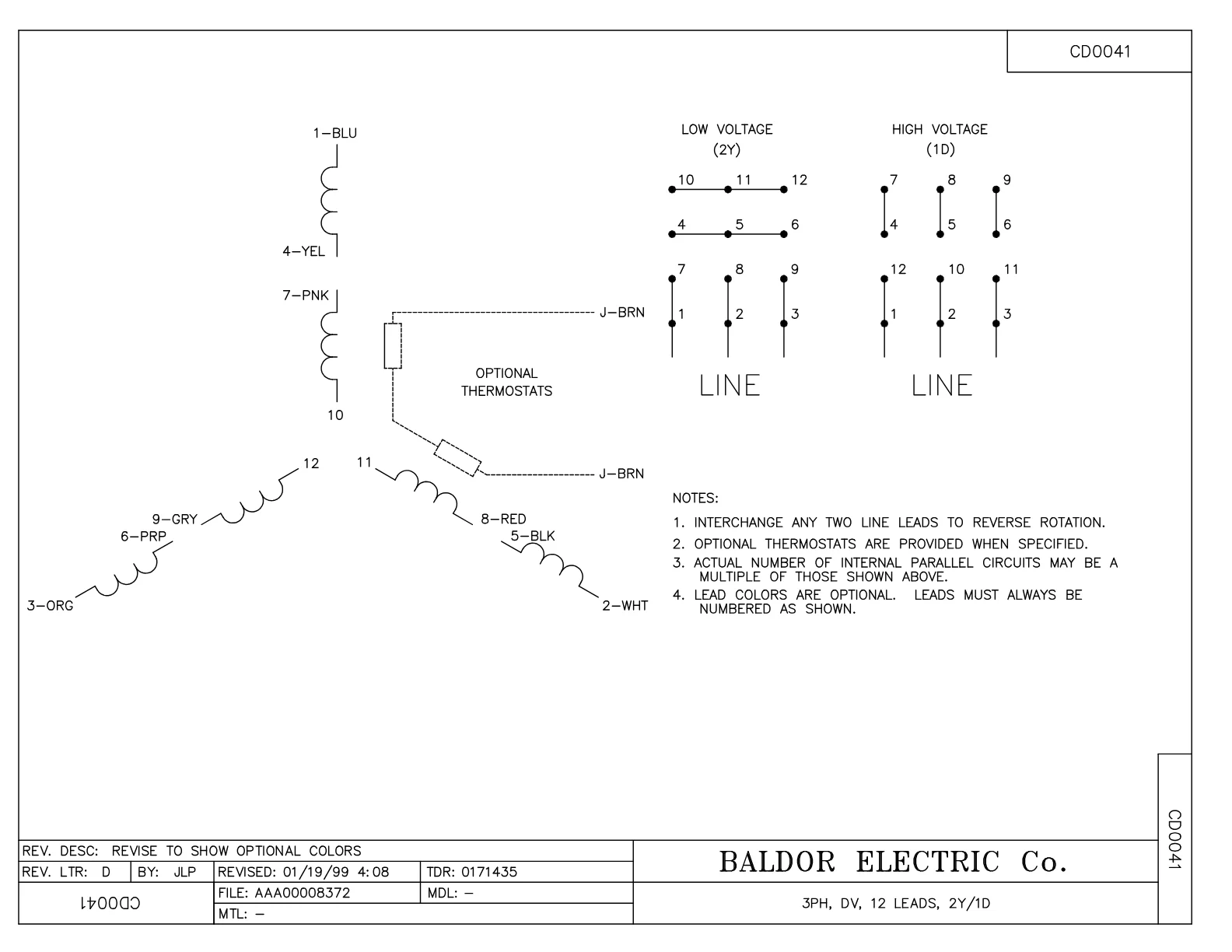

Wiring DiagramWiring DiagramPDF·41 KB·English

DatasheetDatasheetPDF·797 KB·English

Performance CurvePerformance CurvePDF·108 KB·English

Series documents 2· shared by this product series

Technical DrawingDrawingPDF·862 KB·English

Technical DrawingDrawingPDF·87 KB·English

Spare Parts 5

The genuine spare parts used for servicing and repairing the Baldor M43016TX-50 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
000692000VD	LABEL WARNING	1 pcs	544 motors
078559001A	+FANCV - 360	1 pcs	93 motors
702676001C	FAN 360	1 pcs	102 motors
076709000A	C/B Cover - 360	1 pcs	179 motors
067053000B	GASK 320-400	1 pcs	179 motors
