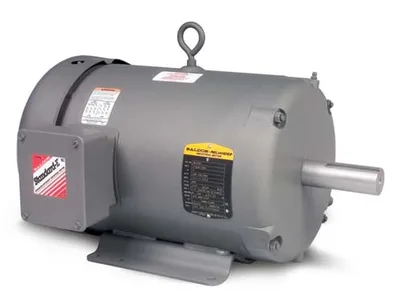

Photo may not represent actual item. Refer to name and product specs for all details.

Baldor M3702

U Frame Motor - 2 hp, 900 rpm, 3 ph, 208-230/460 V, 215 Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 900 rpm Base, Foot Mount, Continuous Duty

BaldorMFR # M3702SKU # YLSFSWVMUJ3RV8W

Motor CategoryU-Frame Motor

Motor Phase3 ph

Motor Horsepower2 hp

Synchronous Rpm900 rpm

Motor Supply Voltage208-230/460 V

Frame Size215

Have questions?Chat on WhatsApp

About This Product

U Frame Motor - 2 hp, 900 rpm, 3 ph, 208-230/460 V, 215 Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 900 rpm Base, Foot Mount, Continuous Duty

Features and Benefits

Suitable for mounting in any position
Ball bearings
Heavy-gauge steel and cast-iron frames, and gasketed conduit boxes
Class F insulation
1.15 service factor
Low-loss electrical grade lamination steel
Prefix NM- has TENV Enclosure
Standard efficiency
Applications: Pumps, compressors, fans, conveyors, machine tools and other general-purpose three-phase applications

Baldor M3702

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Motor CategoryU-Frame Motor

Motor Phase3 ph

Motor Horsepower2 hp

Synchronous Rpm900 rpm

Motor Supply Voltage208-230/460 V

Frame Size215

Enclosure TypeTEFC (Totally Enclosed Fan Cooled)

Frequency Rating60 Hz

Full Load Current3.50 A

Duty Condition TypeContinuous Duty

Base RPM900 rpm

Full Load Efficiency82.50 %

Amps @ Voltage7.6 A @ 208 V; 7.0 A @ 230 V; 3.5 A @ 460 V

Volts @ Frequency208 V @ 60 Hz; 230 V @ 60 Hz; 460 V @ 60 Hz

Shaft Diameter1.1250 in

Overall Length C Dimension17.51 in

Type Of BearingBall

NEMA Design ClassB

Service Factor1.15

Frame MaterialSteel

Insulation ClassB

IP Rating44

Standards MetCSA, UR

Warranty2 Year Warranty

Harmonization Code8501.52.4000

Weight97 lbs

ApplicationsPumps, compressors, fans, conveyors, machine tools and other general purpose three phase applications requiring NEMA U-frame mounting.

Additional DetailsBall bearings, heavy-gauge steel and cast-iron frames, Exxon Polyrex EM grease. All the features of our stock three phase general purpose NEMA T -frame motors but with NEMA U-frame mounting dimensions.

Mounting TypeFoot

Product TypeDefinite Purpose Motors
