Baldor M3538-5

Baldor-Reliance M3538-5 is a 0.5 HP, 1725 rpm, 3-phase 575 V, 60 Hz, 56 frame, TEFC general purpose three-phase induction motor.

BaldorMFR # M3538-5SKU # YLSTGA4YL2PE1

EnclosureTEFC

Frame56

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency.500 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor-Reliance M3538-5 is a 0.5 HP, 1725 rpm, 3-phase 575 V, 60 Hz, 56 frame, TEFC general purpose three-phase induction motor.

Baldor M3538-5

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

Frame56

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency.500 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency575.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsCURUS · C UR US

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage.800 A @ 575.0 V

Design codeB

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load74.0 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)0.8 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classB

Inverter codeNot Inverter

KVA codeL

Lifting lugsNo Lifting Lugs

Locked bearing indicatorNo Locked Bearing

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size3 @ 18 AWG

Motor type3416M

Mounting arrangementF1

Number of poles4

Overall length11.35 IN

Power factor63

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeStandard

Pulley shaft indicatorStandard

Rodent screenNone

Service factor1.25

Shaft diameter0.625 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)1725 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568117491

Nameplate

Catalog numberM3538-5

Specification number34A61-873

Horsepower (HP).5

Voltage (V)575

Current (A).8

Speed (rpm)1725

Frame size56

Frequency (Hz)60

Phase3

Service factor1.25

Code letter (locked rotor kVA)L

NEMA design letterB

Insulation classB

NEMA nominal efficiency (%)74

Power factor63

Rating40C AMB-CONT

Drive end bearing6203

Opposite drive end bearing6203

EnclosureTEFC

Nameplate numberNP1256L

Performance

General characteristics· 575 V, 60 Hz, 0.5 hp

Line-to-line resistance at 25 °C (ohms)53 Ω

Temperature rise at rated load (°C)65° C

Temperature rise at service factor load (°C)78° C

Start configurationDOL

Breakdown torque7 lb-ft

Pull-up torque4.5 lb-ft

Locked-rotor torque5.3 lb-ft

Starting current (A)5.2 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	14	30	43	55	63	69	75	69
Efficiency %	0	53.2	66.4	72.5	74.6	75.3	75.1	75.3
Speed rpm	1797	1782	1769	1754	1739	1724	1706	1724
Line amps A	0.64	0.64	0.68	0.74	0.82	0.92	1	0.92
Power W	89	178	284	387	497	610	726	0
Torque lb-ft	0	0.375	0.75	1.125	1.5	1.875	2.25	0

Documents & CAD

For this product 3

Wiring DiagramWiring DiagramPDF·38 KB·English

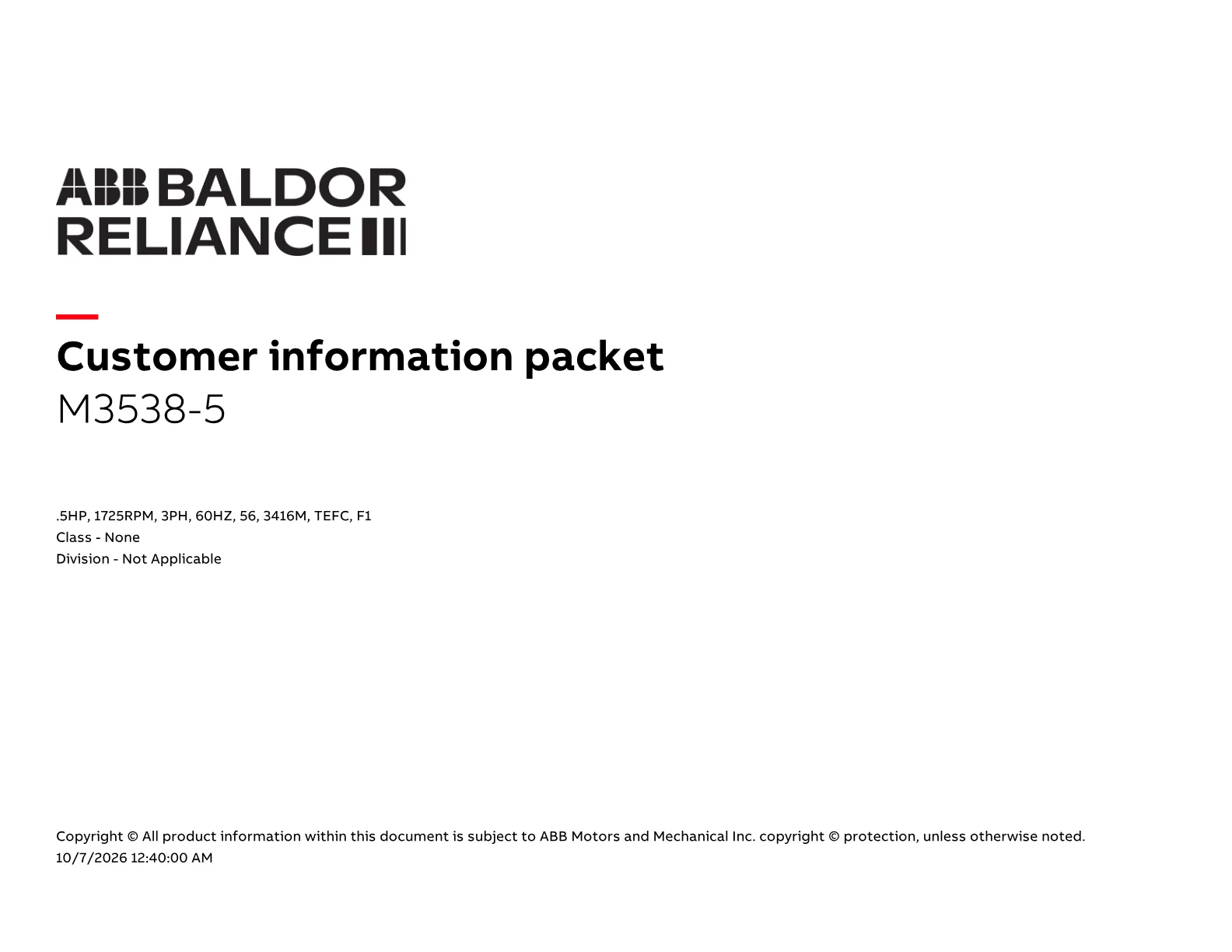

DatasheetDatasheetPDF·581 KB·English

Performance CurvePerformance CurvePDF·59 KB·English

Series documents 1· shared by this product series

Dimension DrawingDimension SheetPDF·93 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 6

The genuine spare parts used for servicing and repairing the Baldor M3538-5 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
34EP3102A01SP	FR ENDPLATE, MACH	1 pcs	179 motors
34EP3102A02SP	FR/PU ENDPLATE, MACH	1 pcs	112 motors
34FN3002A01SP	EXTERNAL FAN, PLASTIC, .637/.639 HUB W/	1 pcs	410 motors
34FH4002A01SP	IEC FH NO GREASER PRIMED	1 pcs	210 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors

Accessories 1

Genuine accessories that can be used with the Baldor M3538-5 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
