How can I get a price quote for Baldor M3537-5?

You can request a fast quote for Baldor M3537-5 from Yılsa Engineering. Reference part number YLSTKFDWK1R0PGZ. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Baldor M3537-5 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Baldor M3537-5 genuine and new?

Yes. This Baldor product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Baldor M3537-5?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Baldor M3537-5

General Purpose Motor - 1/2 hp, 3600 rpm, 3 ph, 575 V, 56 Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 3450 rpm Base, Foot Mount, Continuous Duty

BaldorMFR # M3537-5SKU # YLSTKFDWK1R0PGZ

EnclosureTEFC

Frame56

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency.500 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

General Purpose Motor - 1/2 hp, 3600 rpm, 3 ph, 575 V, 56 Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 3450 rpm Base, Foot Mount, Continuous Duty

Baldor M3537-5

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

Frame56

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency.500 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)3600 RPM @ 60 HZ

Voltage at frequency575.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsC UR US

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage.800 A @ 575.0 V

Design codeB

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load68.0 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)0.8 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classB

Inverter codeNot Inverter

KVA codeJ

Lifting lugsNo Lifting Lugs

Locked bearing indicatorNo Locked Bearing

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size3 @ 18 AWG

Motor type3410M

Mounting arrangementF1

Number of poles2

Overall length11.35 IN

Power factor63

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeStandard

Pulley shaft indicatorStandard

Rodent screenNone

Service factor1.25

Shaft diameter0.625 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)3450 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568117484

Motor Supply Voltage575 V

Base RPM3450 rpm

Mounting TypeFoot

Warranty2 Year Warranty

Type Of BearingBall

IP Rating44

Weight20 lbs

ApplicationsPumps, compressors, fans, conveyors, machine tools and other applications where 575 volt three phase power is available.

Additional DetailsBall bearings. Mount in any position. Heavy-gauge steel and cast iron frames.

Harmonization Code8501.51.4040

Motor CategoryGeneral Purpose Motor

Product TypeGeneral Purpose Motors

Nameplate

Catalog numberM3537-5

Specification number34A61-487

Horsepower (HP).5

Voltage (V)575

Current (A).8

Speed (rpm)3450

Frame size56

Frequency (Hz)60

Phase3

Service factor1.25

Code letter (locked rotor kVA)J

NEMA design letterB

Insulation classB

NEMA nominal efficiency (%)68

Power factor63

Rating40C AMB-CONT

Drive end bearing6203

Opposite drive end bearing6203

EnclosureTEFC

Nameplate numberNP1256L

Performance

General characteristics· 575 V, 60 Hz, 0.5 hp

Line-to-line resistance at 25 °C (ohms)56.4 Ω

Temperature rise at rated load (°C)58° C

Temperature rise at service factor load (°C)69° C

Start configurationDOL

Breakdown torque3.4 lb-ft

Pull-up torque2.7 lb-ft

Locked-rotor torque3 lb-ft

Starting current (A)4.8 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	19	33	44	56	64	70	77	70
Efficiency %	0	41.4	56.3	64	67.2	68.4	68.5	68.4
Speed rpm	3595	3563	3535	3501	3466	3432	3381	3432
Line amps A	0.72	0.73	0.78	0.81	0.88	0.96	1.06	0.96
Power W	136	229	334	437	549	668	789	0
Torque lb-ft	0	0.1875	0.375	0.5625	0.75	0.9375	1.125	0

Documents & CAD

For this product 3

Wiring DiagramWiring DiagramPDF·38 KB·English

DatasheetDatasheetPDF·580 KB·English

Performance CurvePerformance CurvePDF·59 KB·English

Series documents 1· shared by this product series

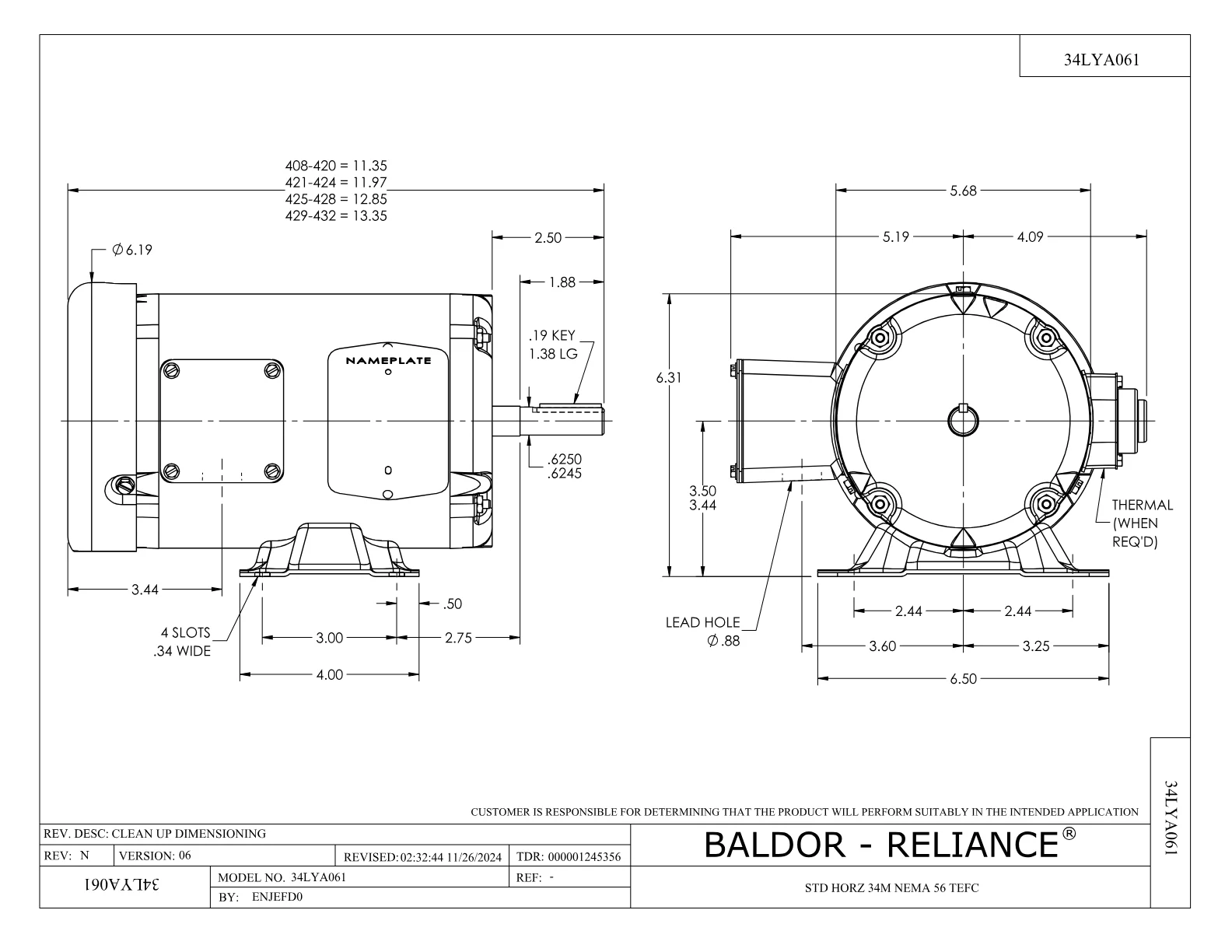

Dimension DrawingDimension SheetPDF·93 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 6

The genuine spare parts used for servicing and repairing the Baldor M3537-5 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
34EP3102A01SP	FR ENDPLATE, MACH	1 pcs	179 motors
34EP3102A02SP	FR/PU ENDPLATE, MACH	1 pcs	112 motors
34FN3002A01SP	EXTERNAL FAN, PLASTIC, .637/.639 HUB W/	1 pcs	410 motors
34FH4002A01SP	IEC FH NO GREASER PRIMED	1 pcs	210 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors

Accessories 1

Genuine accessories that can be used with the Baldor M3537-5 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
