How can I get a price quote for Baldor M3209?

You can request a fast quote for Baldor M3209 from Yılsa Engineering. Reference part number YLSYZ132BKSR22I. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Baldor M3209 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Baldor M3209 genuine and new?

Yes. This Baldor product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Baldor M3209?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

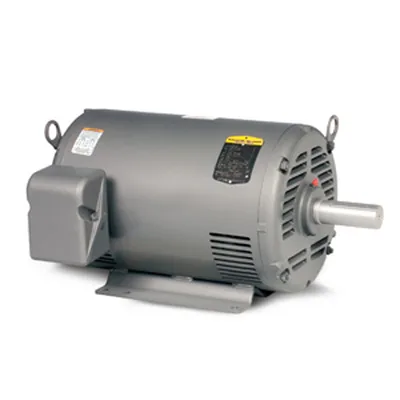

Photo may not represent actual item. Refer to name and product specs for all details.

Baldor M3209

U Frame Motor - 2 hp, 1800 rpm, 3 ph, 208-230/460 V, 184 Frame, ODP (Open Drip-Proof) Enclosure, 60 Hz, Foot Mount, Continuous Duty

BaldorMFR # M3209SKU # YLSYZ132BKSR22I

Motor CategoryU-Frame Motor

Motor Phase3 ph

Motor Horsepower2 hp

Synchronous Rpm1800 rpm

Motor Supply Voltage208-230/460 V

Frame Size184

Have questions?Chat on WhatsApp

About This Product

U Frame Motor - 2 hp, 1800 rpm, 3 ph, 208-230/460 V, 184 Frame, ODP (Open Drip-Proof) Enclosure, 60 Hz, Foot Mount, Continuous Duty

Features and Benefits

Heavy-gauge steel frame thru 405T
Ball bearings
Copper windings
Standard efficiency
Applications: Pumps, compressors, machine tools, conveyors, blowers, fans and many other applications requiring three phase power

Baldor M3209

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Motor CategoryU-Frame Motor

Motor Phase3 ph

Motor Horsepower2 hp

Synchronous Rpm1800 rpm

Motor Supply Voltage208-230/460 V

Frame Size184

Enclosure TypeODP (Open Drip-Proof)

Frequency Rating60 Hz

Full Load Current3.20 A

Duty Condition TypeContinuous Duty

Full Load Efficiency84.00 %

Amps @ Voltage6.3 A @ 230 V; 6.8 A @ 208 V; 3.2 A @ 460 V

Volts @ Frequency208 V @ 60 Hz; 230 V @ 60 Hz; 460 V @ 60 Hz

Shaft Diameter0.8750 in

Overall Length C Dimension12.62 in

Type Of BearingBall

NEMA Design ClassB

Service Factor1.15

Frame MaterialSteel

Insulation ClassB

IP Rating22/44

Standards MetCSA, UR

Warranty2 Year Warranty

Harmonization Code8501.52.4000

Weight41 lbs

ApplicationsPumps, compressors, fans, conveyors, machine tools and other general purpose three phase applications requiring NEMA U-frame mounting.

Additional DetailsBall bearings, heavy-gauge steel and cast-iron frames, Exxon Polyrex EM grease. All the features of our stock three phase general purpose NEMA T -frame motors but with NEMA U-frame mounting dimensions.

Mounting TypeFoot

Product TypeDefinite Purpose Motors
