Baldor M3112-57

Baldor-Reliance M3112-57 is a 0.75 HP, 1425 rpm, 3-phase 230/400 V, 50 Hz, 56 frame, open (OPEN) enclosure general purpose three-phase induction motor.

BaldorMFR # M3112-57SKU # YLSSMCIXX8HMNAY

EnclosureOPEN

Frame56

Frame materialSteel

Frequency (Hz)50.00 Hz

Motor letter typeThree Phase

Output at frequency.750 HP @ 50 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor-Reliance M3112-57 is a 0.75 HP, 1425 rpm, 3-phase 230/400 V, 50 Hz, 56 frame, open (OPEN) enclosure general purpose three-phase induction motor.

Baldor M3112-57

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureOPEN

Frame56

Frame materialSteel

Frequency (Hz)50.00 Hz

Motor letter typeThree Phase

Output at frequency.750 HP @ 50 HZ

Phase3

Synchronous speed at frequency (rpm)1500 RPM @ 50 HZ

Voltage at frequency400.0 V @ 50 HZ · 230.0 V @ 50 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsCURUS · UKCA · WEEE · CE · C UR US

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage1.900 A @ 400.0 V · 3.200 A @ 230.0 V

Design codeB

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load70.0 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)1.9 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classF

Inverter codeNot Inverter

KVA codeK

Lifting lugsNo Lifting Lugs

Locked bearing indicatorNo Locked Bearing

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size6 @ 18 AWG

Motor type3420M

Mounting arrangementF1

Number of poles4

Overall length10.14 IN

Power factor58

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeStandard

Pulley shaft indicatorStandard

Rodent screenNone

RoHS statusROHS COMPLIANT

Service factor1.25

Shaft diameter0.625 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)1425 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568656761

Nameplate

Catalog numberM3112-57

Specification number34F779-2382G1

Horsepower (HP).75/KW .56

Voltage (V)230/400

Current (A)3.2/1.9 SFA 3.6/2.1

Speed (1/min)1425

Frame size56

Frequency (Hz)50

Phase3

Service factor1.25

Code letter (locked rotor kVA)K

NEMA design letterB

Insulation classF

NEMA nominal efficiency (%)70

Power factor58

Rating40C AMB-S1 CONT

Drive end bearing6203

Opposite drive end bearing6203

EnclosureOPEN

Nameplate numberNP1372L

Performance

General characteristics· 400 V, 50 Hz, 0.75 hp

Line-to-line resistance at 25 °C (ohms)17.1 Ω

Temperature rise at rated load (°C)78° C

Temperature rise at service factor load (°C)98° C

Start configurationDOL

Breakdown torque11.9 lb-ft

Pull-up torque11.6 lb-ft

Locked-rotor torque15.7 lb-ft

Starting current (A)12.3 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	11	25	37	48	58	64	70	64
Efficiency %	0	50.7	64.9	70	71.8	71.4	69.9	71.4
Speed rpm	1496	1483	1466	1449	1431	1409	1386	1409
Line amps A	1.63	1.63	1.69	1.8	1.9	2.14	2.38	2.14
Power W	124	280	433	597	768	953	1150	953
Torque lb-ft	0	0.674	1.35	2.03	2.71	3.4	4.08	3.4

Documents & CAD

For this product 3

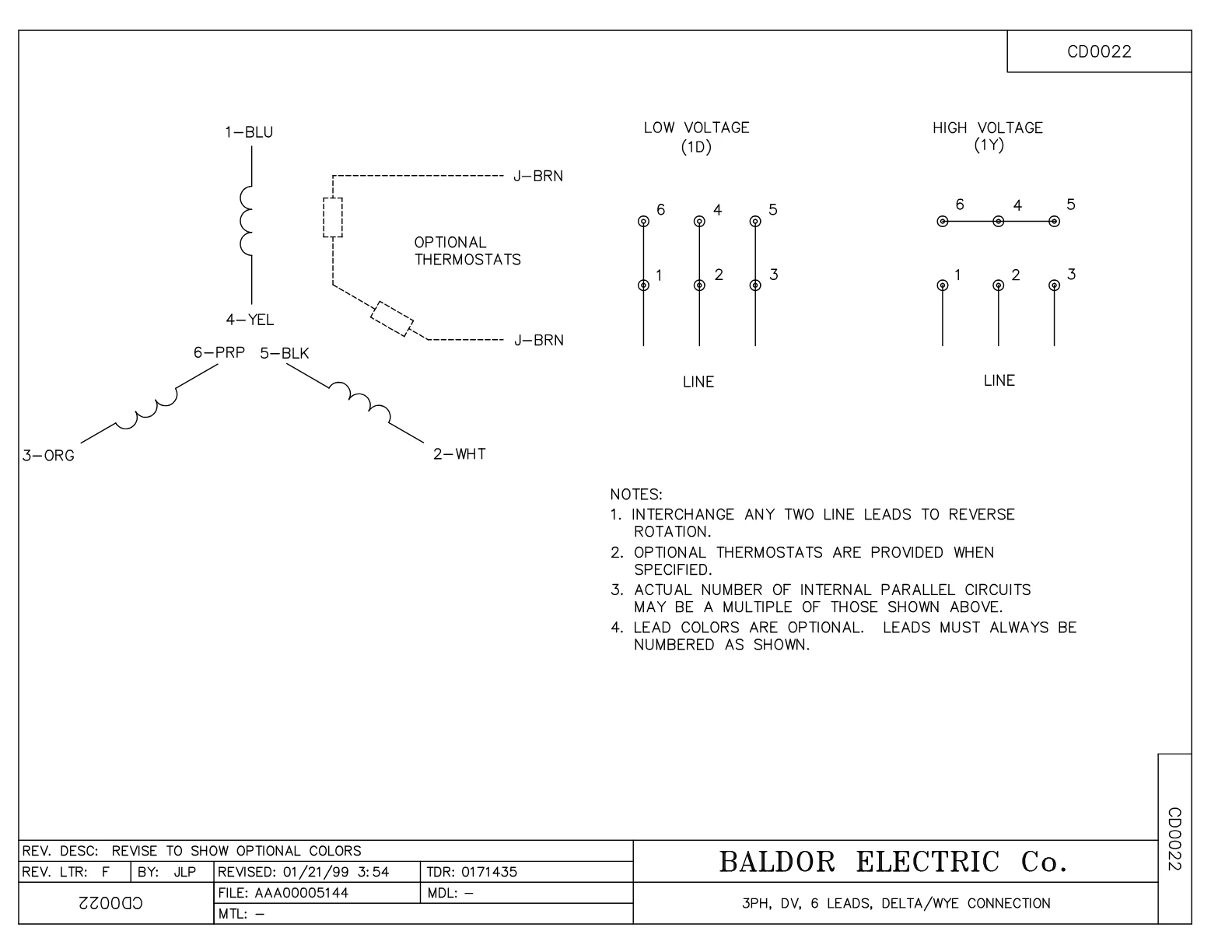

Wiring DiagramWiring DiagramPDF·37 KB·English

DatasheetDatasheetPDF·582 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

Series documents 1· shared by this product series

Dimension DrawingDimension SheetPDF·102 KB·English

CAD Files 3

3D Model

SolidWorks.sldprt · 4.5 MB

2D Drawing

Spare Parts 2

The genuine spare parts used for servicing and repairing the Baldor M3112-57 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.
