Baldor M1761T

Two Speed Motor - 15 hp / 3-3/4 hp, 1800 rpm / 900 rpm, 3 ph, 460 V, 254T Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 1760 rpm / 880 rpm Base, Foot Mount, Continuous Duty

BaldorMFR # M1761TSKU # YLSKHPX9R21ZDPH

EnclosureTEFC

Frame254T

Frame materialCast Iron

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency15.000 HP @ 60 HZ · 3.750 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Two Speed Motor - 15 hp / 3-3/4 hp, 1800 rpm / 900 rpm, 3 ph, 460 V, 254T Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 1760 rpm / 880 rpm Base, Foot Mount, Continuous Duty

Baldor M1761T

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

Frame254T

Frame materialCast Iron

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency15.000 HP @ 60 HZ · 3.750 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency460.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsCURUS

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage19.600 A @ 460.0 V

Design codeB

Drip coverNo Drip Cover

Duty ratingCONT

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)8.3 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classF

Inverter codeNot Inverter

IP ratingNONE

KVA codeG

Lifting lugsStandard Lifting Lugs

Locked bearing indicatorLocked Bearing

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size6 @ 12 AWG

Motor type0934M

Mounting arrangementF1

Number of poles4 · 8

Overall length23.36 IN

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeStandard

Pulley shaft indicatorStandard

Rodent screenNone

Service factor1.15

Shaft diameter1.625 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorShaft Slinger

Speed (rpm)1760 rpm · 880 rpm

Speed code2S-1W-VT

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568115992

Motor CategoryTwo Speed Motor

Motor Supply Voltage460 V

Base RPM1760 rpm / 880 rpm

Type Of BearingBall

Warranty2 Year Warranty

Harmonization Code8501.52.4000

Weight248 lbs

ApplicationsFans, blowers, machine tools, hoists, conveyors, pumps.

Additional DetailsDesigned for use in applications in which multiple speeds are required. Heavy duty steel or cast-iron frames, ball bearing, dynamically balanced rotors.

Mounting TypeFoot

Product TypeDefinite Purpose Motors

Nameplate

Catalog numberM1761T

Specification number09C101X185

Horsepower (HP)15/3.75

Voltage (V)460

Current (A)19.6/8.3

Speed (rpm)1760/880

Frame size254T

Frequency (Hz)60

Phase3

Service factor1.15

Code letter (locked rotor kVA)G

NEMA design letterB

Insulation classF

Rating40C AMB-CONT

Drive end bearing6309

Opposite drive end bearing6208

EnclosureTEFC

Nameplate numberNP1256L

Performance

General characteristics· 460 V, 60 Hz, 15 hp

Line-to-line resistance at 25 °C (ohms)0.852 Ω

Temperature rise at rated load (°C)84° C

Temperature rise at service factor load (°C)99° C

Start configurationDOL

Breakdown torque144 lb-ft

Pull-up torque46 lb-ft

Locked-rotor torque82.5 lb-ft

Starting current (A)116 A

Line-to-line resistance at 25 °C (ohms)3.41 Ω

Temperature rise at rated load (°C)47° C

Temperature rise at service factor load (°C)52° C

Start configurationDOL

Breakdown torque75.1 lb-ft

Pull-up torque25 lb-ft

Locked-rotor torque49.8 lb-ft

Starting current (A)34.2 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	7	42	64	76	82	85	87	84
Efficiency %	0	82	88.2	89.8	90.1	89.7	89	89.9
Speed rpm	1799	1793	1786	1779	1771	1763	1754	1766
Line amps A	9.29	10.2	12.4	15.5	19.6	23	27.2	21.6
Power W	545	3412	6345	9343	12430	15591	18858	14327
Torque lb-ft	0	11	22.1	33.2	44.5	55.9	67.4	51.3

Documents & CAD

For this product 3

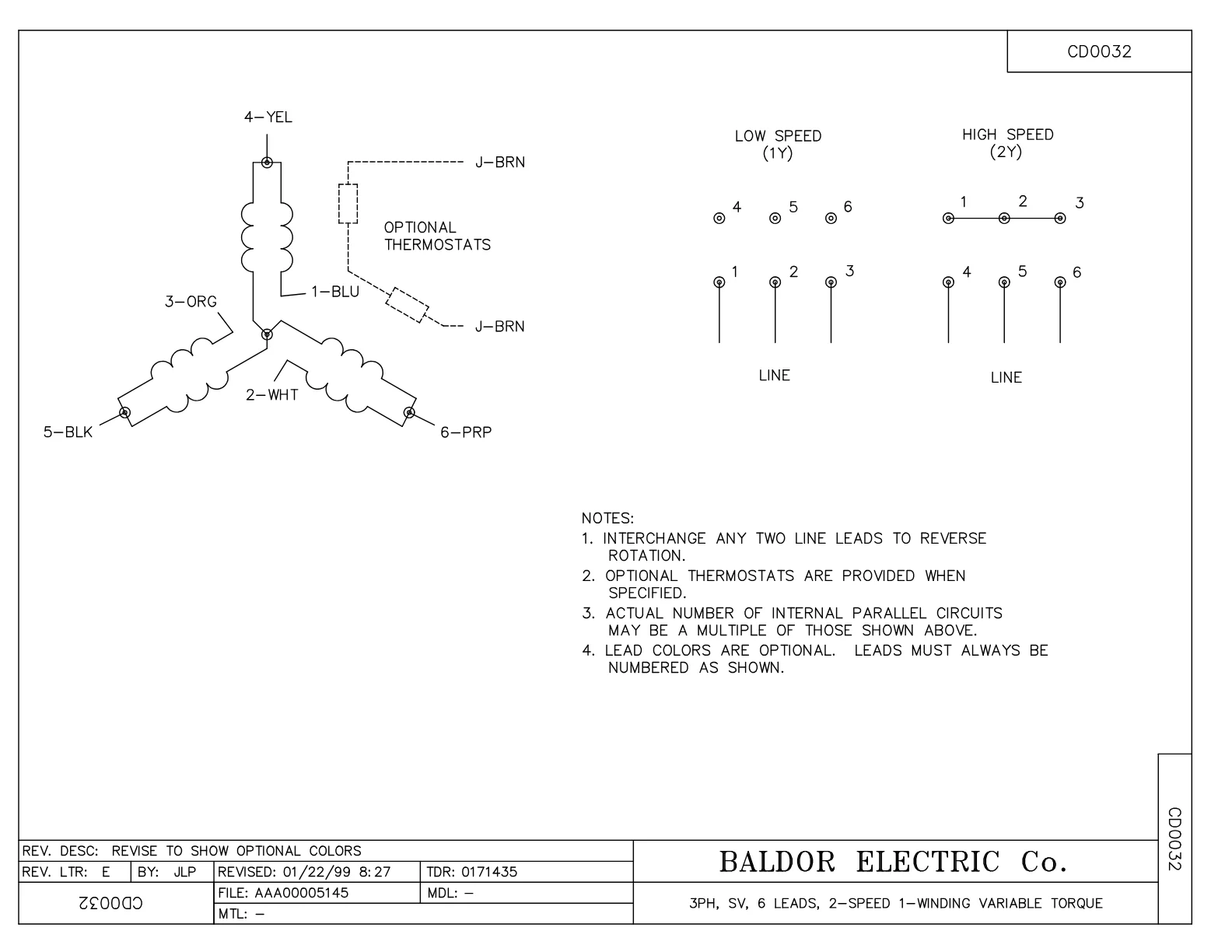

Wiring DiagramWiring DiagramPDF·40 KB·English

DatasheetDatasheetPDF·743 KB·English

Performance CurvePerformance CurvePDF·61 KB·English

Series documents 1· shared by this product series

Dimension DrawingDimension SheetPDF·170 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 7

The genuine spare parts used for servicing and repairing the Baldor M1761T motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
51XW2520A12	.25-20 X .75, TAPTITE II, HEX WSHR SLTD	6 pcs	1,543 motors
09FH4000SP	309 FH - BLACK PRIMER	1 pcs	131 motors
09CB3501SP	CONDUIT BOX LID FOR 09CB3001 & 09CB3002	1 pcs	392 motors
09GS1013SP	GS FOR 09CB3501, 12CB1500 & 12CB1503 LID	1 pcs	245 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
09FN3001A01SP	EXTERNAL FAN, PLASTIC (COMES W/SCREW FRO	1 pcs	7 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors

Accessories 1

Genuine accessories that can be used with the Baldor M1761T motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
