Baldor M1757T

Two Speed Motor - 3 hp / 3/4 hp, 1800 rpm / 900 rpm, 3 ph, 460 V, 184T Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 1725 rpm / 850 rpm Base, Foot Mount, Continuous Duty

BaldorMFR # M1757TSKU # YLSMGLN19XJXNX5

EnclosureTEFC

Frame184T

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency.750 HP @ 60 HZ · 3.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Two Speed Motor - 3 hp / 3/4 hp, 1800 rpm / 900 rpm, 3 ph, 460 V, 184T Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 1725 rpm / 850 rpm Base, Foot Mount, Continuous Duty

Baldor M1757T

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

Frame184T

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency.750 HP @ 60 HZ · 3.000 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency460.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsCURUS · C UR US

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage4.000 A @ 460.0 V

Design codeB

Drip coverNo Drip Cover

Duty ratingCONT

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)1.6 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classF

Inverter codeNot Inverter

IP ratingNONE

KVA codeG

Lifting lugsNo Lifting Lugs

Locked bearing indicatorNo Locked Bearing

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size6 @ 16 AWG

Motor type3628M

Mounting arrangementF1

Number of poles4 · 8

Overall length16.54 IN

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeStandard

Pulley shaft indicatorStandard

Rodent screenNone

Service factor1.15

Shaft diameter1.125 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)1725 rpm · 850 rpm

Speed code2S-1W-VT

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568115954

Motor CategoryTwo Speed Motor

Motor Supply Voltage460 V

Base RPM1725 rpm / 850 rpm

Type Of BearingBall

Warranty2 Year Warranty

Harmonization Code8501.52.4000

Weight65 lbs

ApplicationsFans, blowers, machine tools, hoists, conveyors, pumps.

Additional DetailsDesigned for use in applications in which multiple speeds are required. Heavy duty steel or cast-iron frames, ball bearing, dynamically balanced rotors.

Mounting TypeFoot

Product TypeDefinite Purpose Motors

Nameplate

Catalog numberM1757T

Specification number36A01W286

Horsepower (HP)3/.75

Voltage (V)460

Current (A)4/1.6

Speed (rpm)1725/850

Frame size184T

Frequency (Hz)60

Phase3

Service factor1.15

Code letter (locked rotor kVA)G

NEMA design letterB

Insulation classF

Rating40C AMB-CONT

Drive end bearing6206

Opposite drive end bearing6205

EnclosureTEFC

Nameplate numberNP1256L

Performance

General characteristics· 460 V, 60 Hz, 3 hp

Line-to-line resistance at 25 °C (ohms)7.95 Ω

Temperature rise at rated load (°C)84° C

Temperature rise at service factor load (°C)105° C

Start configurationDOL

Breakdown torque24 lb-ft

Pull-up torque17 lb-ft

Locked-rotor torque19 lb-ft

Starting current (A)24 A

Line-to-line resistance at 25 °C (ohms)31.8 Ω

Temperature rise at rated load (°C)56° C

Temperature rise at service factor load (°C)66° C

Start configurationDOL

Breakdown torque10 lb-ft

Pull-up torque7 lb-ft

Locked-rotor torque8.1 lb-ft

Starting current (A)5.4 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	13	53	75	84	89	89	88	89
Efficiency %	0	73.6	81	82.1	80.9	78.5	75.5	79.5
Speed rpm	1797	1775	1752	1725	1695	1660	1617	1674
Line amps A	1.7	1.9	2.4	3.1	3.9	4.9	6.1	4.5
Power W	176	798	1429	2084	2768	3487	4261	3199
Torque lb-ft	0	2.33	4.65	6.98	9.3	11.6	14	10.7

Documents & CAD

For this product 3

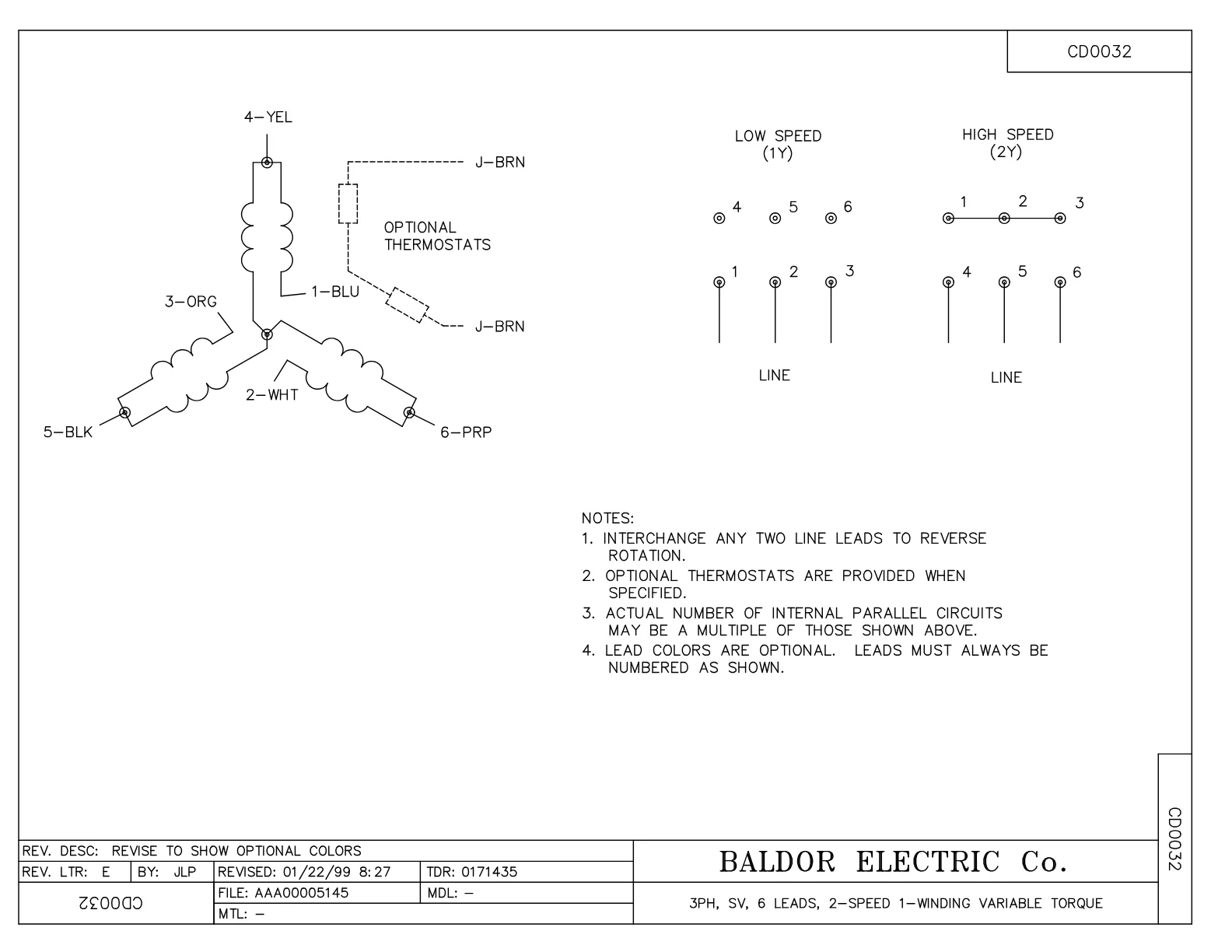

Wiring DiagramWiring DiagramPDF·40 KB·English

DatasheetDatasheetPDF·683 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

Series documents 1· shared by this product series

Dimension DrawingDimension SheetPDF·113 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 7

The genuine spare parts used for servicing and repairing the Baldor M1757T motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
36GS1000SP	GASKET-CONDUIT BOX, .06 THICK #SV-330 LE	1 pcs	831 motors
36EP3104A01	FREP MACH W/GRSR, RAISED FH PADS	1 pcs	141 motors
36EP3100A01SP	PUEP ASSEMBLY FOR ROUTING PURPOSES	1 pcs	74 motors
37GS1001SP	GASKET, CONDUIT BOX LID, .06 THICK LEXID	1 pcs	329 motors
36FN3000A01SP	EXFN, PLASTIC, 7.00 OD, .912 ID	1 pcs	167 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
