Baldor M1754T

Baldor-Reliance M1754T is a two-speed 1/0.25 HP, 1720/860 rpm, 3-phase 460 V, 60 Hz, 143T frame, TEFC general purpose three-phase induction motor.

BaldorMFR # M1754TSKU # YLS7EPSWLSIQDV

EnclosureTEFC

Frame143T

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency.250 HP @ 60 HZ · 1.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor-Reliance M1754T is a two-speed 1/0.25 HP, 1720/860 rpm, 3-phase 460 V, 60 Hz, 143T frame, TEFC general purpose three-phase induction motor.

Baldor M1754T

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

Frame143T

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency.250 HP @ 60 HZ · 1.000 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency460.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsCURUS · C UR US

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage1.520 A @ 460.0 V

Drip coverNo Drip Cover

Duty ratingCONT

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)0.8 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classF

Inverter codeNot Inverter

IP ratingNONE

KVA codeJ

Lifting lugsNo Lifting Lugs

Locked bearing indicatorNo Locked Bearing

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size6 @ 18 AWG

Motor type3520M

Mounting arrangementF1

Number of poles4 · 8

Overall length12.31 IN

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeStandard

Pulley shaft indicatorStandard

Rodent screenNone

Service factor1.15

Shaft diameter0.875 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)1720 rpm · 860 rpm

Speed code2S-1W-VT

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568115923

Nameplate

Catalog numberM1754T

Specification number35AA001G361

Horsepower (HP)1/.25

Voltage (V)460

Current (A)1.52/.77

Speed (rpm)1720/860

Frame size143T

Frequency (Hz)60

Phase3

Service factor1.15

Code letter (locked rotor kVA)J

NEMA design letter-

Insulation classF

Rating40C AMB-CONT

Drive end bearing6205

Opposite drive end bearing6203

EnclosureTEFC

Nameplate numberNP1256L

Performance

General characteristics· 460 V, 60 Hz, 1 hp

Line-to-line resistance at 25 °C (ohms)27.3 Ω

Temperature rise at rated load (°C)27° C

Temperature rise at service factor load (°C)33° C

Start configurationDOL

Breakdown torque9.37 lb-ft

Pull-up torque7.48 lb-ft

Locked-rotor torque7.98 lb-ft

Starting current (A)9.28 A

Line-to-line resistance at 25 °C (ohms)109 Ω

Start configurationDOL

Breakdown torque4.87 lb-ft

Pull-up torque2.55 lb-ft

Locked-rotor torque3.56 lb-ft

Starting current (A)2.44 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	11	34	51	65	77	78	79	78
Efficiency %	0	71.6	78.3	79.4	78.1	75.5	72.7	76.5
Speed rpm	1799	1780	1762	1742	1719	1695	1668	1705
Line amps A	0.893	0.983	1.17	1.34	1.52	1.9	2.27	1.75
Power W	79.22	265	476	695	928	1176	1437	1077
Torque lb-ft	0	0.751	1.49	2.23	2.97	3.69	4.41	3.4

Documents & CAD

For this product 3

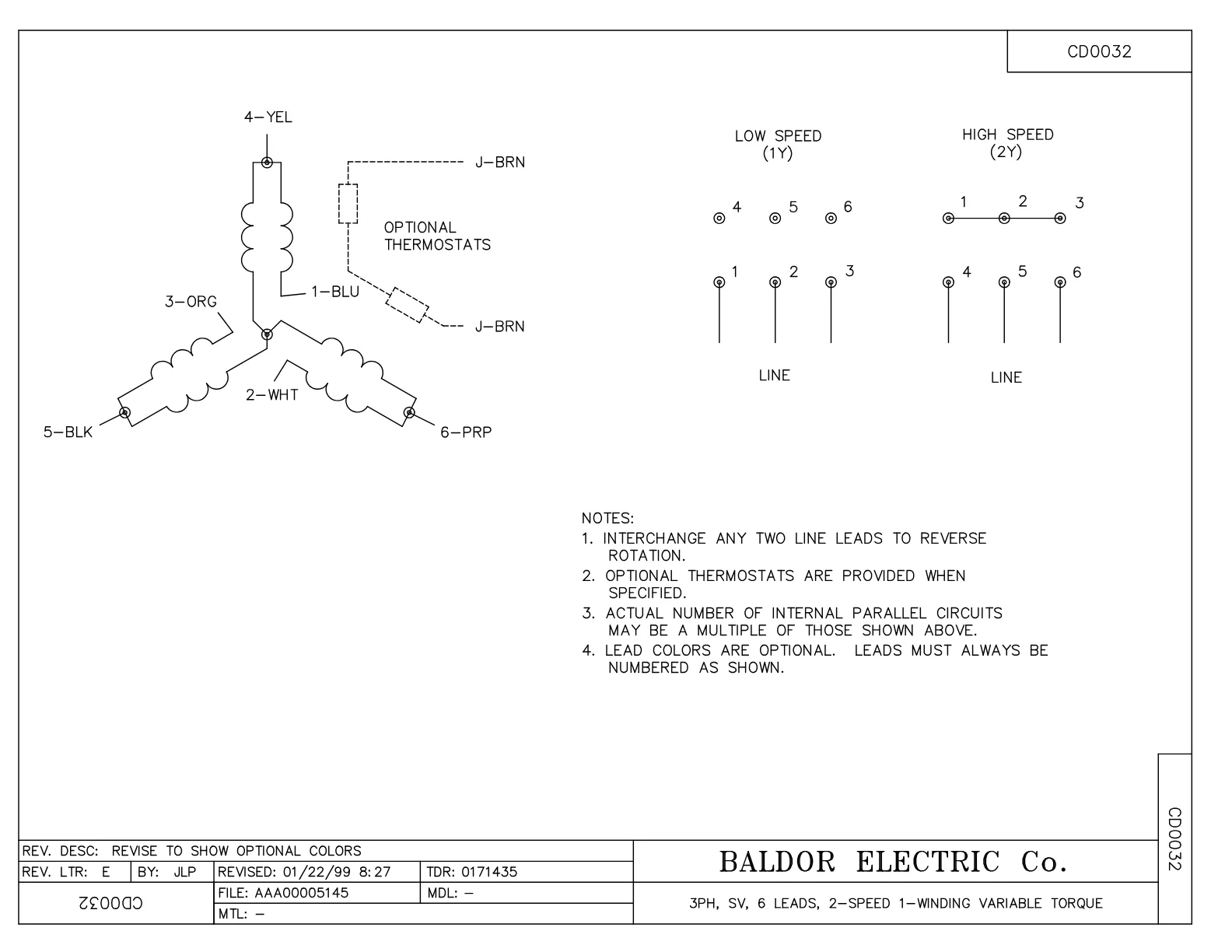

Wiring DiagramWiring DiagramPDF·40 KB·English

DatasheetDatasheetPDF·676 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

Series documents 1· shared by this product series

Dimension DrawingDimension SheetPDF·105 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 5

The genuine spare parts used for servicing and repairing the Baldor M1754T motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
36GS1000SP	GASKET-CONDUIT BOX, .06 THICK #SV-330 LE	1 pcs	831 motors
35FH4005A84SP	IEC FH W/GRSR, NO DIMPLES PRIMED	1 pcs	167 motors
34FN3002B01	EXTERNAL FAN, PLASTIC, .637/.639 HUB W/	1 pcs	623 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
